Shanling/UA2 Portable DAC Amplifier Cable

Shanling / UA2 Portable DAC Amplifier Cable

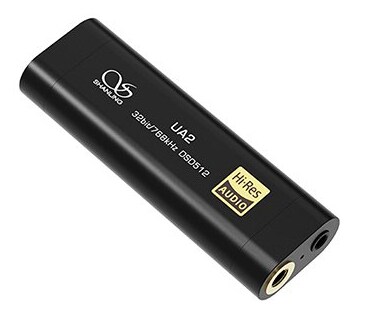

The Shanling / UA2 is a small size balanced connection compatible, portable DAC amplifier.

■ Hardware design centered on high-quality DAC

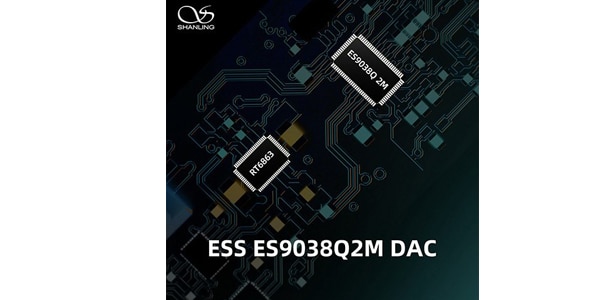

-The DAC chip "ES9038Q2M" mounted on the UA2 is often used in high-grade audio equipment due to the abundance of compatible formats. By adopting this chip, the UA2 has a minimal appearance, but at the maximum. A 121dB S / N ratio and high resolution / low distortion sound are achieved.
・ 768kHz / 32bit ｜ DSD512 compatible

■ Powerful output level
-The independent operational amplifier "RT6863" is installed in the minimum size housing. With this design, both a powerful output level and further low distortion are achieved.
・ Maximum output level 195mW @ 32Ω

■ Background noise eliminated to the limit
-By using an LDO regulator in the internal circuit like UA1, background noise is effectively suppressed.
-The sound heard from the UA2 is clearer and quieter even when there is no sound.

■ Good sound brings a deeper immersive feeling
・ The excellent performance of UA2 is also useful for entertainment other than music, movies and games.
・ Voice of each crowd, grass leaves swaying in the wind, creeping footsteps ... Small sounds that you wouldn't normally feel will invite you to a new world.

■ Two audio output terminals

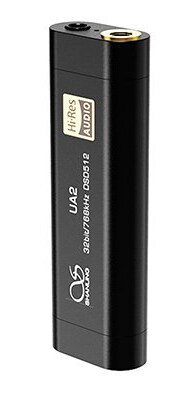

-The UA2 has a 3.5mm terminal for single-ended connection and a 2.5mm terminal for balanced connection to meet various needs from general wired earphones to high-end IEMs.

■ Multi-connection according to the application
-Since the UA2 has a structure in which the connection cable can be exchanged, it is possible to connect and use it with various devices with one unit.
-The product comes standard with an "18-Core / 7-strand high-purity oxygen-free copper USB Type-C to C cable" that enables signal transmission with little loss.
-You can also use it as a "UAC (USB Audio Class) 1.0" device by connecting it to a device while pressing the "USB mode button" on the side of the main unit.
(* You need to prepare the standard cable other than the attached cable by yourself. Also, you do not need to install the driver to use it on a Mac PC, but you need to use it on a Windows PC. You need to install the driver distributed by Shanling for normal operation.)

■ Personalize to suit you by linking with the app
-Just install the "Eddict Player" app provided by Shanling on your smart device and connect the UA2.
・ Equalizer, 7 types of digital filters, and fine volume and gain adjustment are possible.
* The "Eddict Player" app for iOS cannot use the link function with this product.

■ It is obvious by LED display
-During operation, the LED lamp that shows the sampling rate of the file to be played in various colors lights up, and you can check the playback of the high-rate file at a glance.
・ Blue: 44.1 / 48kHz
・ Green: 88.2 / 96kHz
・ Yellow: 176.4 / 192kHz
・ Cyan: 352/384/705 / 768kHz
・ White: DSD 64/128/256/512
・ Red: 44.1 / 48kHz (when UAC1.0 is connected)

■ Body size: 54 x 18 x 9mm
■ Weight: Approximately 12.6g

■ Single-ended output characteristic value
・ Output level: 2V @ 32Ω (125mW @ 32Ω)
・ Frequency characteristics: 20Hz-50kHz (-0.5dB)
・ THD + N: 0.0008% @ 32Ω (A characteristic @ 0.5V)
・ Dynamic range: 122dB @ 32Ω (A characteristic)
・ S / N ratio: 121dB @ 32Ω (A characteristic)
・ Crosstalk: 76dB @ 32Ω
・ Output impedance: <0.8Ω

■ Balanced output characteristic value
・ Output level: 2.5V @ 32Ω (195mW @ 32Ω)
・ Frequency characteristics: 20Hz-50kHz (-0.5dB)
・ THD + N: 0.0008% @ 32Ω (A characteristic @ 0.5V)
・ Dynamic range: 120dB @ 32Ω (A characteristic)
・ S / N ratio: 116dB @ 32Ω (A characteristic)
・ Crosstalk: 109dB @ 32Ω
・ Output impedance: <1.6Ω

■ Product contents:
・ UA2 body x1
・ USB-TypeC to C cable x1
-USB-TypeC to A connector x1
・ Quick start guide x1
・ Warranty x1
