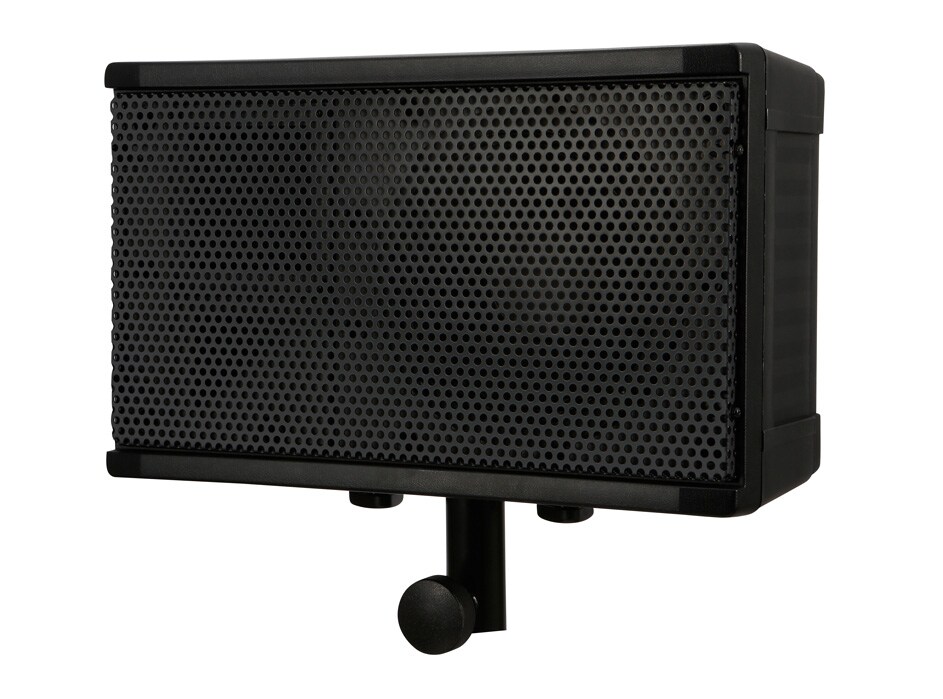

TOA / KZ-650A

TOA / KZ-650A is a 2-way sealed speaker that combines a 20 cm woofer and a constant directional horn tweeter. Low impedance 8Ω, allowable input is 65W (PGM). A special carrying case is attached. It can be used as a mobile PA when combined with the KZ-30A, KZ-65A portable amplifier, and KZ-534 speaker stand.

・ Speaker section
■ Enclosure type: Sealed type
■ Allowable input: Continuous program noise: 65 W
■ Rated impedance: 8 Ω
■ Output sound pressure level: 93 dB (1 W, 1 m)
■ Frequency characteristics: 80 Hz to 18 kHz (SPL -10 dB), 60 Hz to 20 kHz (peak -20 dB)
■ Speaker used: Low frequency range: 20 cm cone type (drip-proof type), high frequency range: constant directivity horn + driver
■ Input / output terminals: Connector XLR-4-31, XLR-4-32 equivalent, 1 each

■ Finish
Enclosure: Low foam polypropylene black (Munsell N1.0 approximate color)
Punching net: Rolled steel plate black (Munsell N1.0 approximate color)
■ Dimensions: 452 (W) x 382 (H) x 210 (D) mm (including bracket)
■ Mass: 8.5 kg (including bracket)
■ Compatible amplifier: KZ-30A, KZ-65A
■ Optional: Mobile PA speaker stand set: KZ-534

・ Storage case
■ Finish: Aluminum laminated plywood silver (aluminum fabric)
■ Dimensions: 478 (W) x 445 (H) x 259 (D) mm
■ Mass: 4.3 kg
