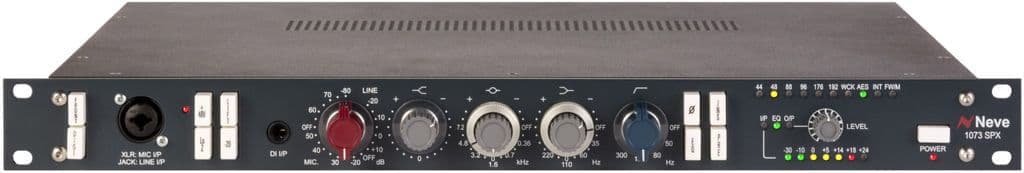

AMS Neve / 1073SPX

A 1-channel model of the modern 1073 channel strip. While faithfully reproducing the original circuitry and sound, it also includes additional features to meet modern needs, such as instrument input, phantom power, and insert terminals.

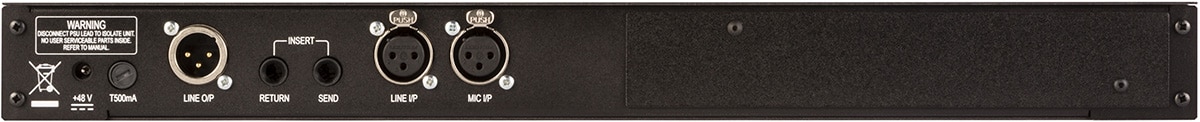

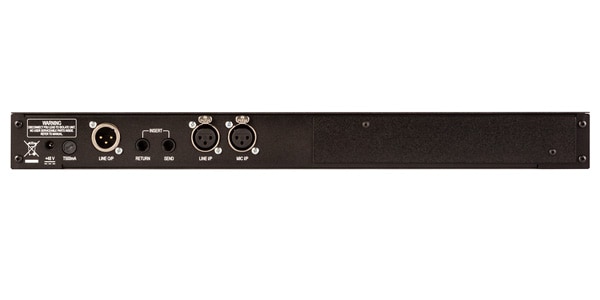

■The first choice microphone preamp for leading producers and artists Designed and manufactured in the UK, the 1073SPX is manufactured with matched components to faithfully reproduce the original specifications. The 1073SPX features a 1073 Class A design microphone preamp with 3-band EQ (fixed HF and 2 switchable bands with cut/boost function) and a high pass filter to add warmth and depth to your recordings. The 1073 SPX builds on the features of the 1073 classic module with additional features such as a built-in DI input, phantom power, selectable insert function, level meter, output level control and a front input connector for easy and direct connection of microphones and instruments. The 19" rack mount 1U unit features an external multi-voltage PSU. ■Features - Genuine Neve 1073 transformer mic preamp/EQ circuit housed in a 1U 19-inch rack mount enclosure - Dedicated Neve Marinair transformers used for the input and output stages - Mic/line/DI inputs on the front of the unit and mic/line input terminals on the rear of the unit - Switchable 48V phantom power, Hi/Lo impedance, -20dB pad and DI ground lift on the input stage - Phase switching, EQ in/out - Insert send/return loop function allows external devices such as mono limiters/compressors to be connected to the 1073SPX audio chain - Pre-EQ insert send/return: A line-level send is possible from the mic preamp output stage with a return just before the EQ stage. - Post-EQ insert send/return: A line-level send is possible from the post-EQ stage with a return just before the main output stage. 7-stage LED signal level meter - displays mic/line/DI input levels, EQ stage levels and output stage levels up to +24dB Output level control External multi-voltage PSU Digital I/O module option supported
