AMS Neve / 1073DPX

2ch model of modern 1073 channel strip. It faithfully reproduces the original circuit and sound, while incorporating additional features such as instrument input, phantom power, and digital options to meet modern needs.

■ The first mic preamp chosen by top producers and artists
Designed and manufactured in the UK, the modern 1073DPX faithfully reproduces the original specifications, components and sounds.
The 1073DPX has a 2-channel 1073 class A mic preamp, each with a 3-band EQ (fixed HF and switchable 2-band with cut / boost function) and a high-pass filter. This gives the recording warmth and depth. The 1073DPX builds on the features of the 1073 Classic Module with additional features such as built-in DI input, phantom power, insert functionality, level meter, and headphone monitoring. The 19-inch rack-mount 2U unit contains an external multi-voltage PSU.

The 1073DPX can be fitted with an optional digital I / O module that allows AES and FireWire digital connectivity at various sample rates. Using a mastering grade converter, the simple configuration and convenience of a digital connection makes the 1073DPX the ultimate front end for the best recordings.

■ Features
Equipped with two independent 1073 transformers, mics, preamps / EQ circuits
・ 2U 19 "rack mount compatible
・ A dedicated Neve Marinair transformer is used for each input / output stage.

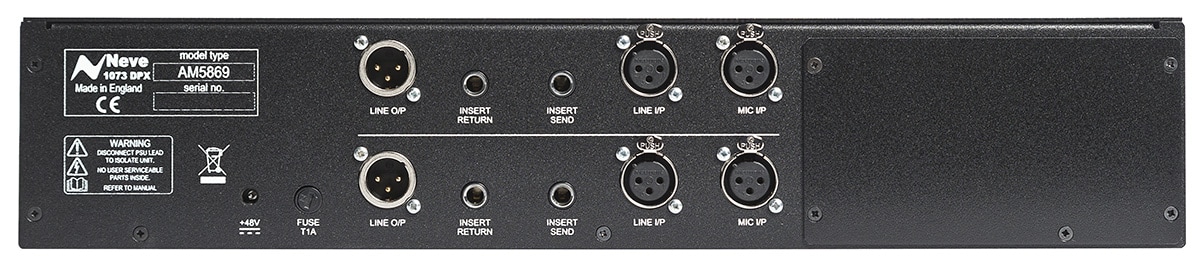

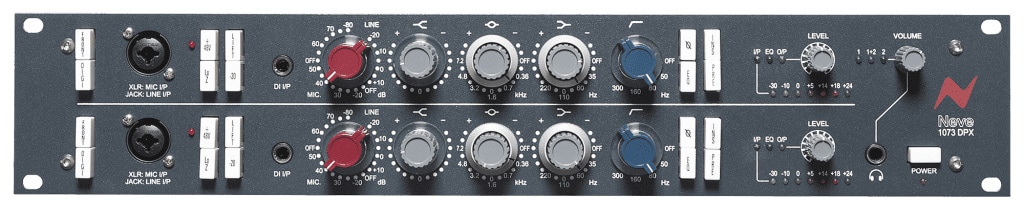

・ Equipped with microphone / line / DI input on the front of the unit and terminals for microphone / line input on the back of the unit.
・ 48V phantom power, Hi / Lo impedance, -20dB pad, input stage DI ground lift can be switched
・ Phase switching, EQ in / out
• The insert send / return loop feature allows you to connect external devices such as compressors to the 1073DPX's audio chain.
-Pre-EQ insert send / return: Line level send is possible from the output stage of the mic preamp. A return will be provided just before the EQ stage.
-Post EQ insert send / return: A line level send is possible from the post EQ stage, and a return is provided just before the main output stage.
-Independent channel output level control
・ Each channel is equipped with a 7-step LED signal level meter:
--Mic / Line / DI Input-Stage Level, EQ-Stage Level, Output-Stage Level can be displayed up to +24 dB
・ External multi-voltage PSU
・ Supports digital I / O options
