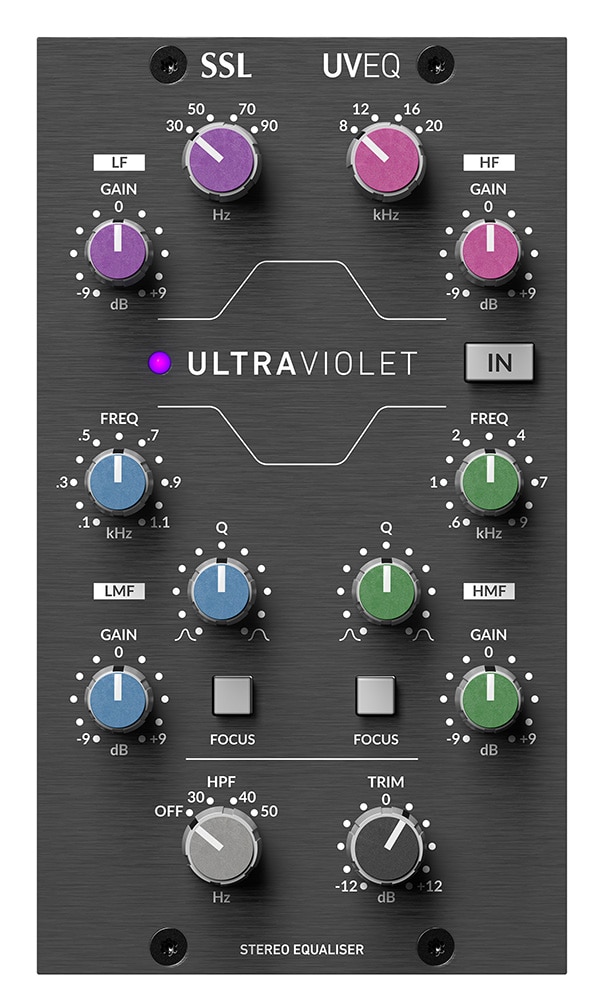

SSL (Solid State Logic) / 500 Series Ultra Violet EQ イコライザー・モジュール

Violet stereo equalizer in 500-series module format.

■FUSION's acclaimed Violet EQ
The SSL UltraViolet 500 Series Stereo EQ brings Fusion's acclaimed Violet stereo EQ section into the 500 Series format. The UltraViolet EQ takes the Fusion Violet EQ one step further, adding two dedicated midbands with their own focus control for added EQ flexibility. UV-EQ provides musical and intuitive equalization designed to help you quickly adjust the sound of your mix using the traditional SSL features of careful selection of frequency and response curves.

■Focus Mode
Focus Mode allows the user to "focus" on a problem frequency or a specific frequency that they want to emphasize or attenuate.
Focus Mode allows the user to "focus" on problem frequencies or specific frequencies that they want to emphasize or attenuate. Pressing the "Focus" switch automatically narrows the selected Q setting further, extending the range of available gain beyond the normal +/- 9dB operation.

■Key Features
4-Band SSL Stereo EQ
Minimum-Phase High and Low shelving bands inherited from Fusion.
2 fully parametric SSL Mid-Bands, with 'Focus' mode.
5 frequency selectable High-Pass Filter and Dedicated Output Trim.

■Tech Specs
Module signal: Stereo
LF Shelf EQ: +/-9dB Gain at 30, 50, 70, 90Hz.
HF Shelf EQ: +/-9dB Gain at 8k, 12k, 16k and 20kHz.
HMF Parametric EQ: +/-9dB Gain 600Hz-9kHz.
HMF Parametric EQ: +/-9dB Gain 600Hz-9kHz ・LMF Parametric EQ: +/-9dB Gain 100Hz-1.1kHz
Switchable HPF: 30, 40, 50, 75 and 100Hz.
Gain Trim: +/-12dB
Switched Bypass: Yes
