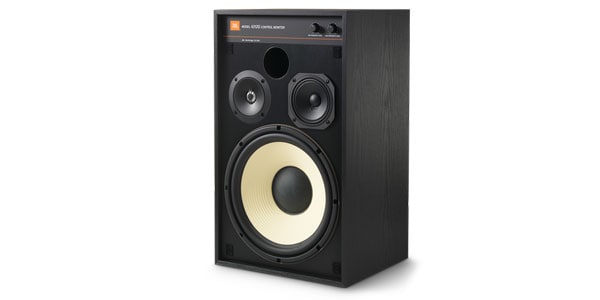

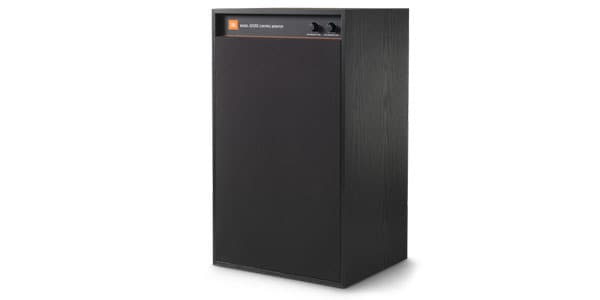

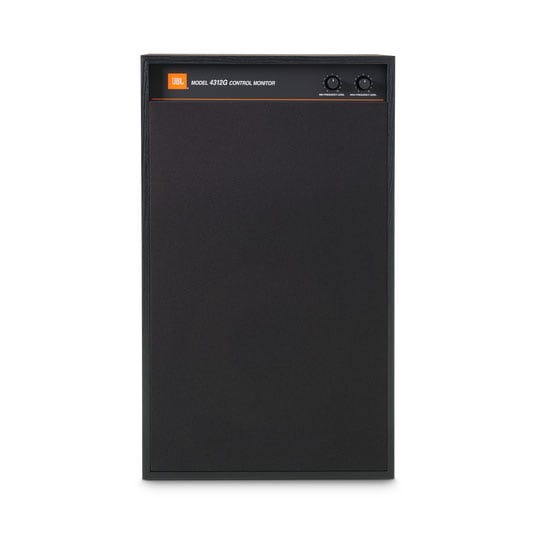

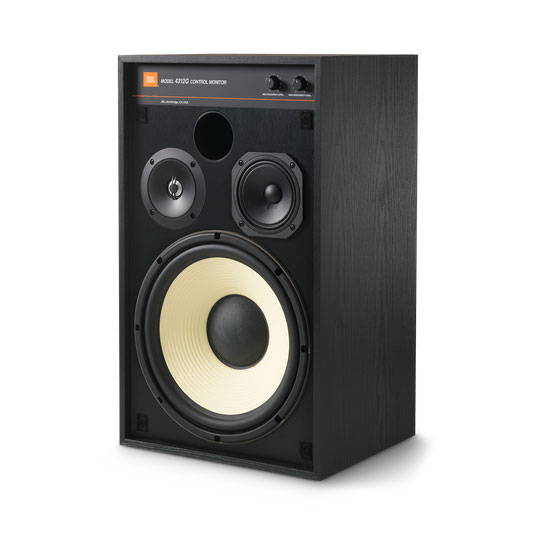

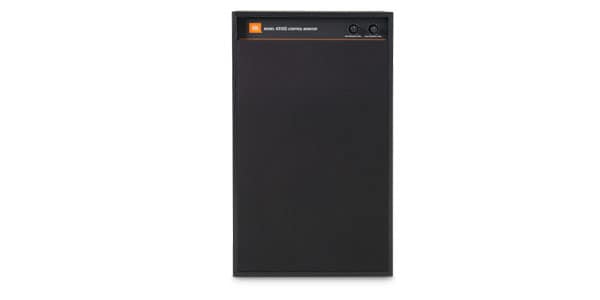

JBL / 4312G studio monitor for left channel

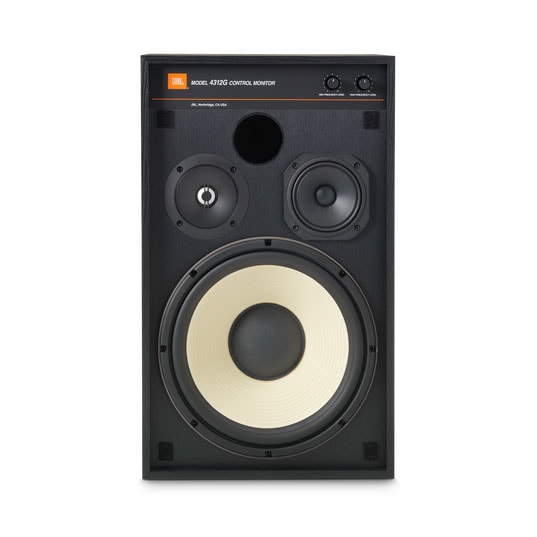

300mm 3-way bookshelf type control monitor 4312G. LF300mm diameter white pure pulp cone is used for the woofer. Equipped with MF125mm diameter polymer coated pure pulp cone in the midrange. Reproduces a powerful sound. For the left channel.

■ Studio monitor
■ 6Ω
■ 200W (RMS)

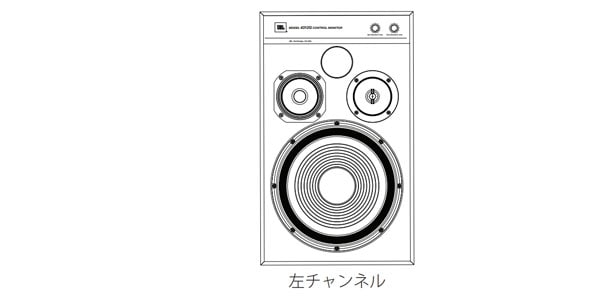

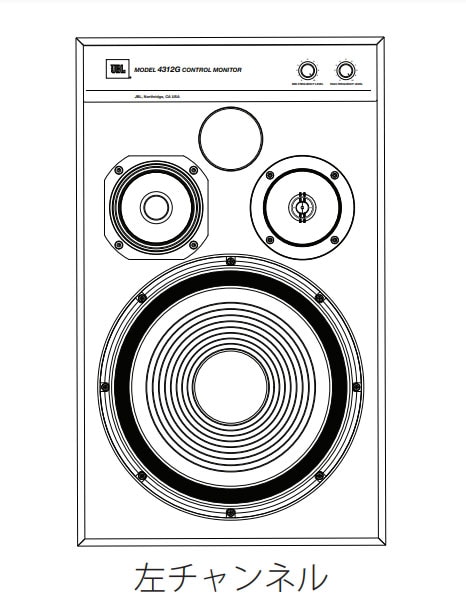

■ For left channel
■ 1

■ 300mm 3-way bookshelf type control monitor
The latest model 4312G has appeared in JBL's long-selling monitor speaker, which has evolved from the Model 4310 that appeared in the early 70's to the 4311, 4312, and 4312A to 4312E. This is the birth of a new dimension of control monitor, which is a port of the technical elements of the limited model 4312SE, which appeared to commemorate the 70th anniversary of JBL, and the latest consumer version L100 Classic with a diameter of 300 mm and 3 ways.


Specifications
LF300mm diameter white pure pulp cone woofer (JW300SW)
MF125mm Diameter Polymer Coated Pure Pulp Cone Midrange (JM125PC)
HF 25mm diameter aluminum / magnesium alloy dome tweeter (054AlMg-1)
Crossover frequency 640Hz, 5kHz
Output sound pressure level (2.83V / 1m) 90dB
Nominal impedance 6Ω
Playback frequency characteristics 44Hz-40kHz
Allowable input (RMS) 200W
Dimensions (HxWxD) 597x362x298 (301 with grill attached) mm
Weight 25.2 kg (when the grill is attached)
Model Front bass reflex type, bookshelf type
