FOCUSRITE / Red 8Line

FOCUSRITE / Red 8Line

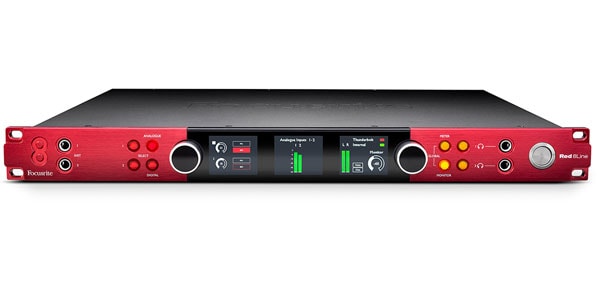

  • FOCUSRITE / Red 8Line画像1

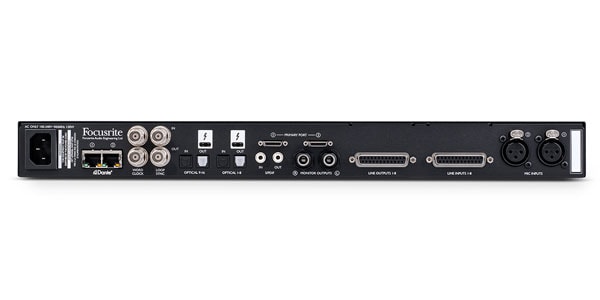

  • FOCUSRITE / Red 8Line画像2
10
  • メーカーサイトManufacturer Site
An audio interface that offers both high sound quality and high flexibility in connection.
■ Audio interface
■ Thunderbolt 3
■ Pro Tools HD

Up to 58 in / 64 out (including 8 analog inputs / 10 analog outputs) Dual Thunderbolt 3 / Pro Tools HD, Dante Audio Network Connection Compatible Professional Audio Interface

Connection to any format
Red 8Line is Focusrite's flagship Red Series latest professional audio interface. Get maximum flexibility in any audio production environment, whether it's a Mac or a Windows PC.
All Red Series interfaces, including the Red 8 Line, support both Thunderbolt 3 and Pro Tools HD workflows, with analog I / O as well as Dante, ADAT, and S / PDIF inputs and outputs.

Same quality as high-end models
Red 8Line has two Red Evolution mic presets, independent L / R monitor outs, eight balanced line inputs and outputs with a DB25 connector, 32 channels of Dante I / O, and 16 channels of ADAT inputs and outputs (at 48kHz). , Stereo S / PDIF input / output, etc., total 58 inputs and 64 outputs.
Like other Red interfaces, it has infinitely fast performance, a dynamic range of 118dB AD / 121dB DA, and flat characteristics up to 35kHz. By using the "parallel path summing" mechanism, unprecedented noise immunity performance is also realized, and mastering quality recording and audio playback are realized.
Overwhelming flexibility
In addition to Thunderbolt 3 and Pro Tools | HD, you can use onboard Dante connectivity, ADAT, and S / PDIF.
It can also be used to extend inputs using devices such as the Dante-enabled Focusrite RedNet interface and Neve, and to output such as Dolby Atmos.

Revolutionize your workflow
Red 8 Line revolutionizes your workflow with an incredible latency of 1.67ms.
I had to make two different mixes, one for overdubbing with an input monitor and one for playing back with a DAW.
Red 8 Line eliminates that need. Build your mix on your DAW and use it for overdubbing (using the RedNet Control software mixer to monitor the input being recorded) and for playback with all plug-ins in place, without any audio shifts.

Software / hardware control environment with RedNet Control
RedNet Control allows you to quickly configure complex monitoring and routing settings in software to control preamps and output levels remotely.

Build a complete system with RedNet R1
Red 8 Line makes it a very powerful interface in any professional audio environment.
RedNet R1 enables monitor control from monaural to 7.1.4 surround, accurate level metering of inputs and outputs, and menu navigation.

■ Operating environment
Compatible computers:
・ Macintosh with Thunderbolt 3/2/1 port (Thunderbolt 3 cable 2m included) *
-Can be connected to the Thunderbolt 2/1 port with an Apple Thunderbolt 3 to Thunderbolt 2 adapter (sold separately)
-Other requirements: High-speed internet environment for downloading software
・ Gain range 0-8dB-63dB (1dB step)
・ Type balance, Zin = 20kΩ
・ Maximum input level + 19dBu, minimum gain
・ Frequency characteristics 20Hz --35kHz ± 0.2dB
・ THD + N -102dB (0.0008%) @ -1dBFS
・ EIN -129dBu'A'-Weighted (typical)
・ SN ratio 119dB'A'-Weighted (typical)
・ CMRR (common mode rejection ratio) 50 / 60Hz CMRR: -70dB
・ Phantom power + 48V, can be turned on / off for each channel
・ HPF high-pass filter: -3dB @ 80 ± 3Hz, 12dB / Oct, can be turned on / off for each channel
・ Air mode + 2dB @ 10kHz, -2dB @ 20Hz (reference 1kHz), input impedance 2.2Ω

Line input 1-8
· 0 DBFS reference level + 18 / + 24dBu (switchable)
-Line input 0 DBFS reference level + 18 / + 24dBu (switchable)
・ Type balance, Zin = 20kΩ
・ Frequency characteristics 20Hz-35kHz ± 0.2dB, minimum gain
・ THD + N -102dB (0.0008%) @ -1dBFS
・ SN ratio 119dB'A'-Weighted (typical)
・ CMRR (common mode rejection ratio) 50 / 60Hz CMRR: -70dB

Monitor output
0 dBFS reference level + 18 dBu
Frequency characteristics 20Hz --35kHz ± 0.2dB
THD + N <-80dB (0.01%) unweighted, 20Hz -20kHz; -1dB FS input
Dynamic range + 120dB'A'-weighted
Output impedance Nominal output impedance = 136Ω Balance (68Ω for each phase)

Headphone output
0 dBFS reference level + 16 dBu ± 0.5 dB
Frequency characteristics 20Hz-20kHz ± 0.2dB
THD + N <-75dB (0.018%) unweighted, 20Hz-20kHz
Dynamic range + 114dB'A'-weighted, 20Hz-20kHz
Output impedance 10Ω
Stereo level balance ± 0.05dB @ 997Hz
Headphone impedance 32Ω-600Ω

Microphone crosstalk
Input from microphone input -80dB; 20Hz-20kHz channel drive @ -20dBFS
Output from microphone input -130dB; 20Hz -20kHz Channel drive @ -20dBFS
Microphone input from output -165dB; 20Hz-20kHz Channel drive @ -20dBFS

Line crosstalk
Line input to line input -100dB; 20Hz-20kHz channel drive @ -20dBFS
Output from line input -150dB; 20Hz-20kHz Channel drive @ -20dBFS
Output to line input -150dB; 20Hz-20kHz channel drive @ -20dBFS

Output crosstalk
Output to Output -95dB; 20Hz-20kHz Channel Drive @ -20dBFS

* Please refer to maker site for detailed specifications.
