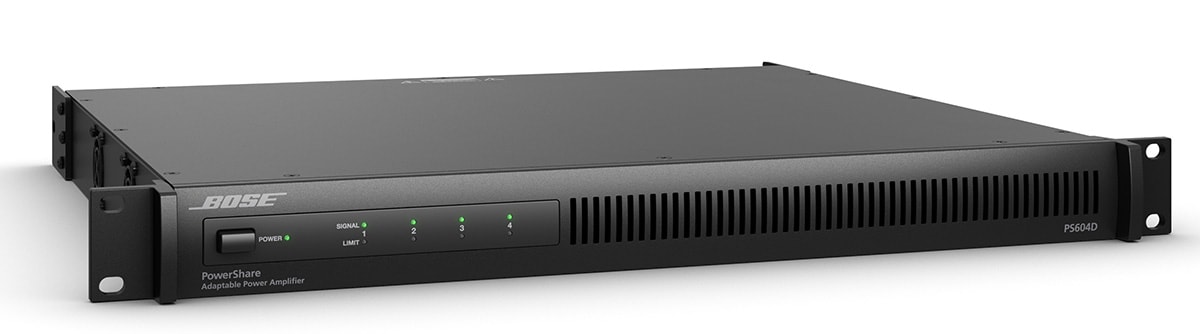

BOSE / PowerShare PS604D Adaptable Power Amplifier Power Amplifier

PowerShare PS604D Adaptable Power Amplifier is a power amplifier with a total of 600W. Supports low impedance and high impedance transmission of 100V line.

■ Power amplifier
■ Supports both high / low-impedance
■ 600W @ 4-8 Ω, 70 / 100V
■ 1U
■ Dante compatible

Power where you need it. Unique technology inherited from the well-established PowerMatch series realizes excellent audio performance, reliability, and flexibility. Adopts innovative PowerShare technology. It shares the power of the amplifier across the output channels and provides an optimal 600W output for permanent equipment. It is possible to distribute a total of 600W of power to each output as much as necessary, or to concentrate full power on one output. It supports both low impedance and high impedance transmission up to 100V, and can be easily used for various purposes. ControlSpace Designer software allows Ethernet-based configuration. Quickly set up external control options. The built-in DanteR audio network gives you the flexibility to place your PowerShare amplifier away from the source or near your speakers. Combining unmatched functionality and technology, PowerShare is one of the most versatile and high-performance power amplifiers out there today.

function
■ PowerShare technology
With unique PowerShare technology, a total of 600W of power can be freely distributed to all outputs. Achieve full power at each output. Rather than deciding the output of the amplifier based on the zone that requires the most power, you can freely use the required power from the total output where you need it. In addition, since the surplus power can be effectively utilized, it is possible to flexibly respond not only to the acoustic design at the time of introduction but also to unplanned changes after installation.

■ Soft impedance setting
Set the channel to low impedance (4-8Ω) or high impedance (70 / 100V) without the need for bridge connections or jumpers.

■ Built-in Dante audio network
Supports Dante network audio input channel (4ch). Mix the digital Dante input selected with the ControlSpace Designer software with the built-in analog input.

■ Dual feedback loop system
Improves performance and reliability. Inheriting the dual feedback loop system of the well-established PowerMatch amp series. Supports continuous monitoring and control of both current and voltage sent to each output. It improves linearity, reduces distortion, and protects speakers at the same time.

■ Control Space network
Connect to a large network audio system using the settings in the ControlSpace Designer software. You can control amplifier parameters with end-user controllers and scheduling events.

■ Integrated speaker processing
Use ControlSpace Designer software to adjust various parameters such as 9-band PEQ, matrix mixing, crossover, limiter, delay, mute / output polarity, and more.

■ Automatic standby
Saving power consumption? The PowerShare amplifier can be set to automatically enter standby mode when the audio signal falls below the threshold value, and automatically start when the audio signal is detected again.
