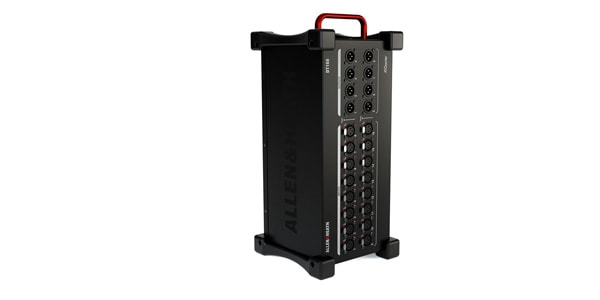

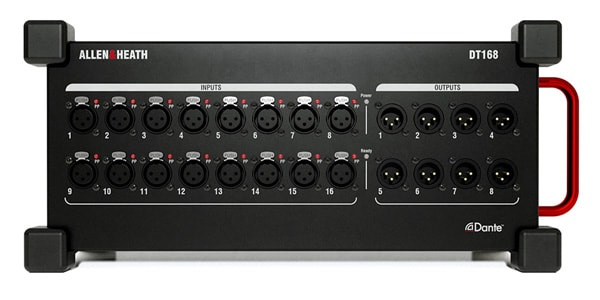

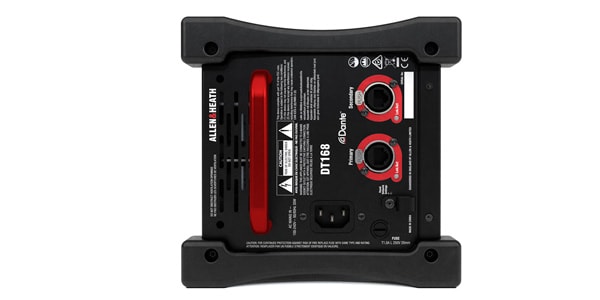

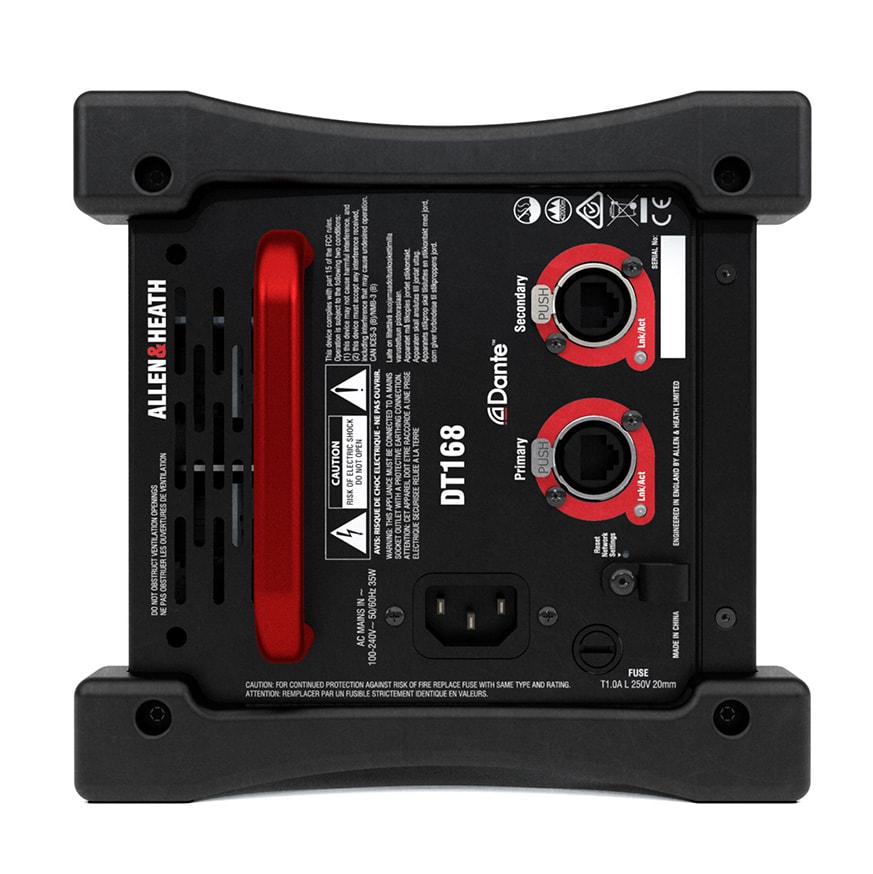

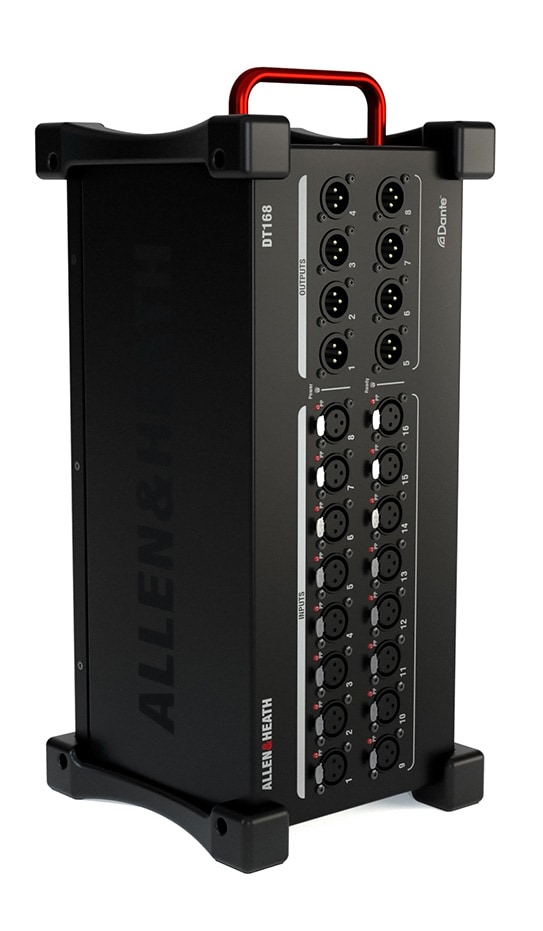

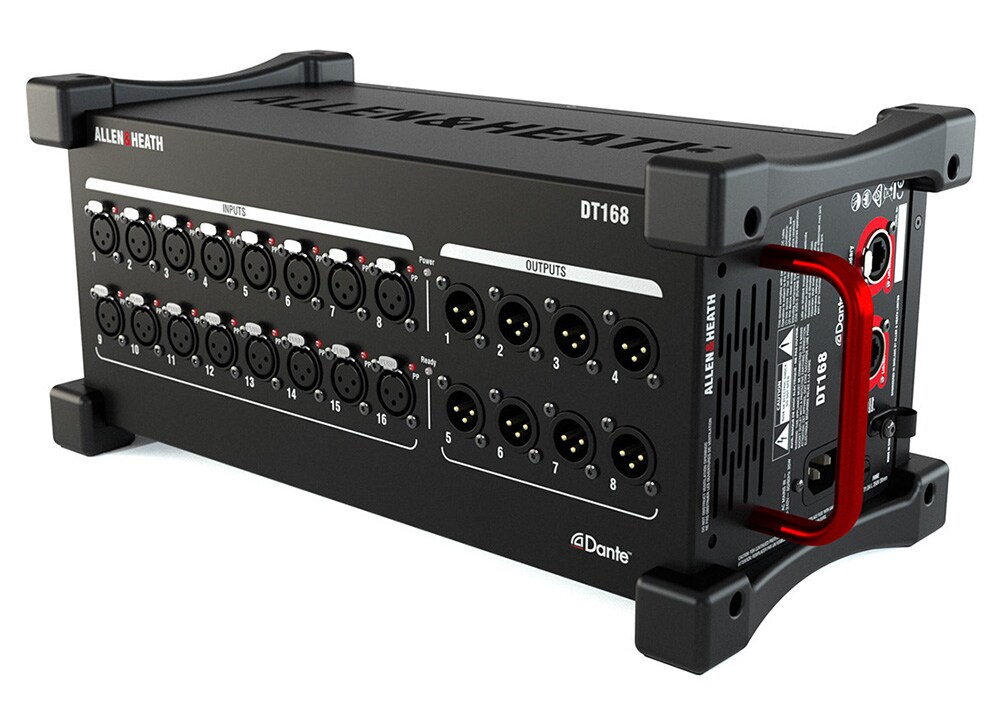

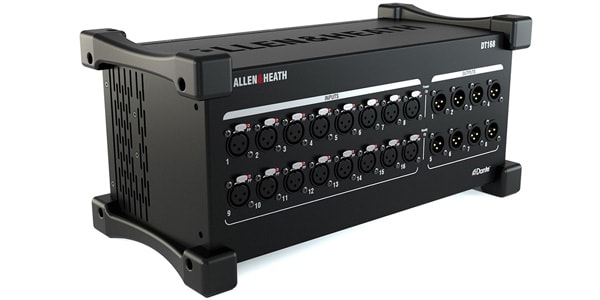

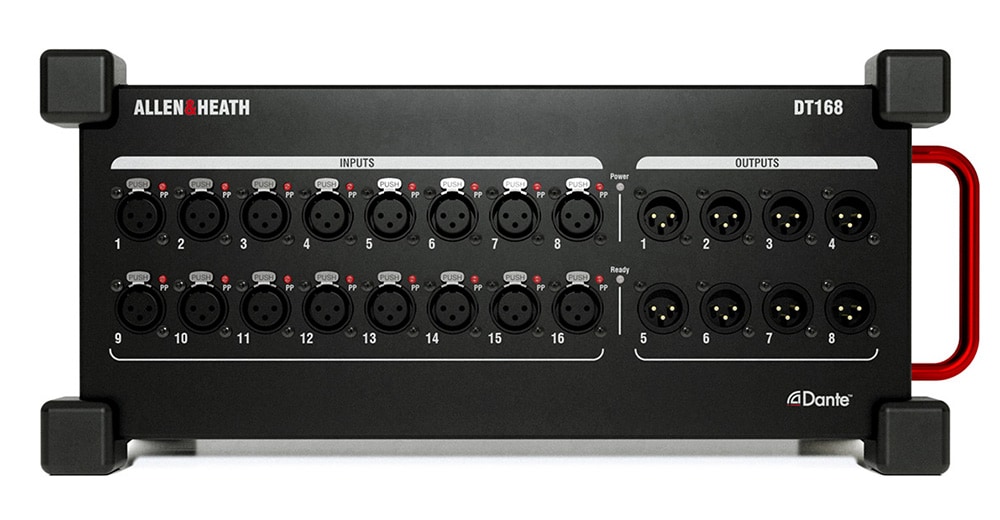

ALLEN&HEATH / DT168 Mobile Input/Output Expansion Unit

The DT168 is a digital stage box from ALLEN&HEATH. It features 16 channels of microphone preamps and 8 channels of line outputs. It has rubber bumpers and a handle for easy transport. High-quality sound is achieved through the Dante audio expander (96kHz/48kHz).

■ A Dante-compatible portable I/O expansion unit with 16 XLR inputs and 8 XLR outputs.

■ Features 16 microphone/line inputs and 8 line outputs.

■ Compatible with AHM-64, Avantis, SQ systems, or dLive Dante networks.

■ Equipped with high-quality microphone preamps with built-in 96kHz converters, and primary/secondary ports for daisy-chaining or redundant connections.

■ Add up to 16 units to AHM-64, SQ, Avantis, or dLive systems using an SQ Dante or dLive 96kHz Dante card.

■ DT preamp control software allows for remote control of multiple DT expansion units and compatibility with third-party Dante-compatible digital mixers.

■Specifications

16 microphone/line inputs (with phantom power status LEDs)

8 line outputs

96kHz

1 PSU

2 RJ45 (Dante ports Primary/Secondary)

Redundant or daisy-chain (switchable) mode

Direct control of preamps from dLive, Avantis, AHM-64, and SQ

Optional rackmount hardware available

Sturdy rubber bumper

Convenient carrying handle

AES67 compatible

Dante Domain Manager compatible

Dimensions (W×H×D): 416.55×182.1×189mm

Weight: Approx. 4.6kg
