JTS / SIEM111R

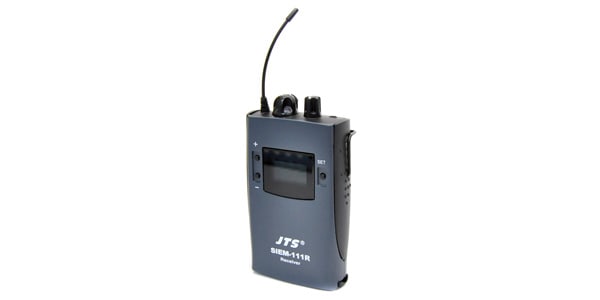

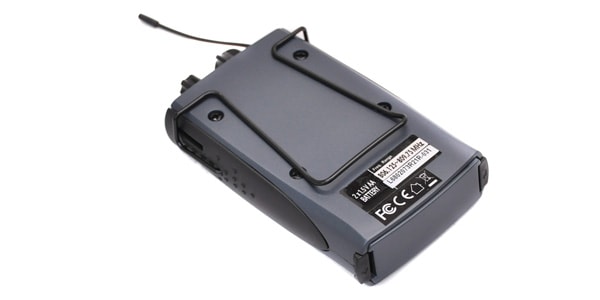

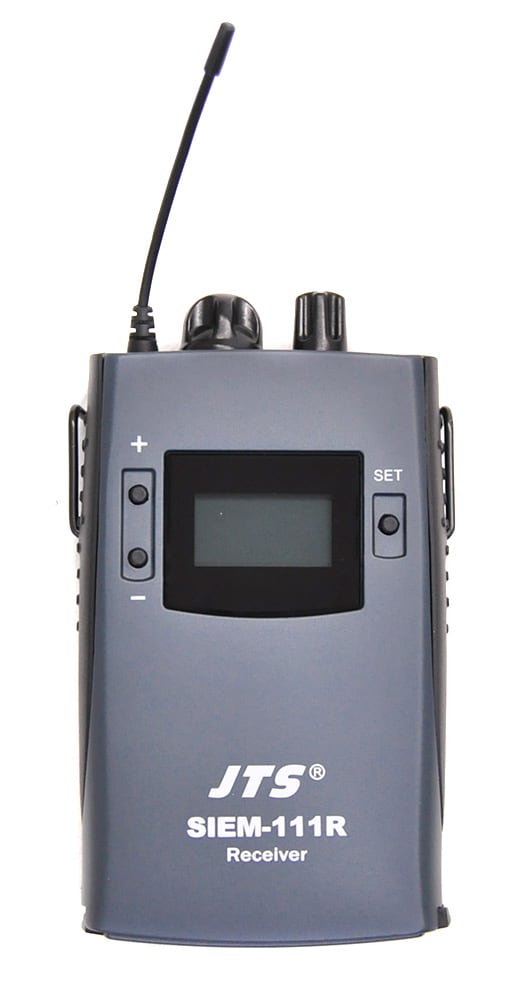

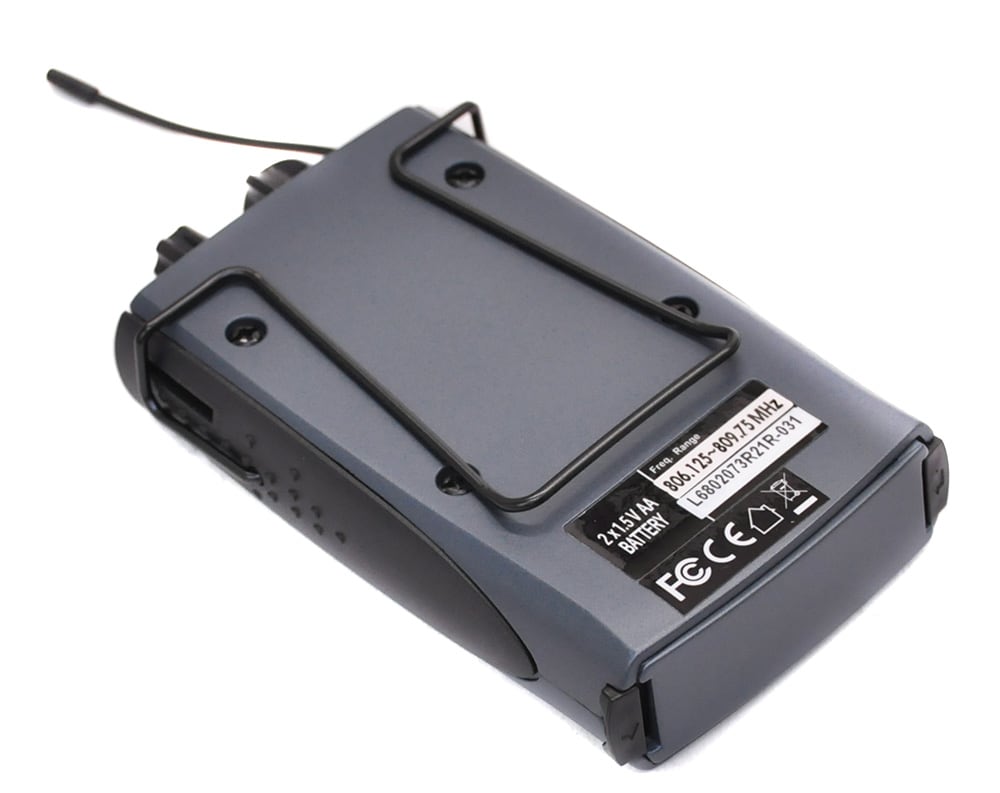

Beltpack receiver for the SIEM111 in-ear monitor system

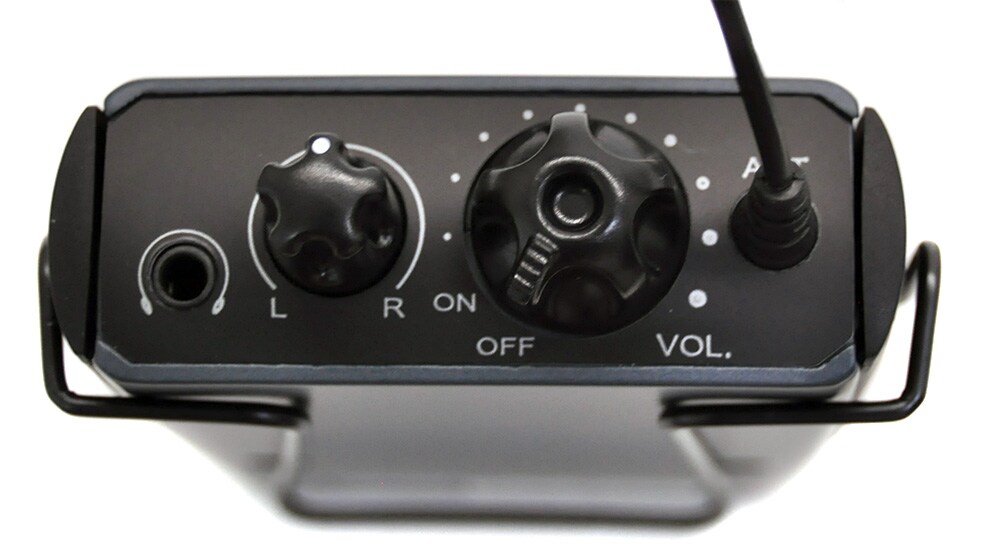

■Receiving frequency: B band (select any one of the 30 channels in the 806.125-809.750MHz band) ■Transmission method: PLL synthesizer method ■LED display: RF level, lock-on, battery level gauge, stereo/mono, HF booster, dynamic limiter, group, channel, mute, frequency display ■Input level selection switch: 0dB / -10dB ■Output connector: 1/8 inch stereo phone jack ■Power supply: 2 x AA alkaline batteries ■Continuous use time: More than 12 hours *Earphones are not included with this product. *Images are for illustrative purposes only. *5 waves can be used simultaneously *There is no limit to the number of receivers that can be connected to one transmitter. *Stereo/mono output can be selected. *When inputting a mono sound source, each is a mono input, so if two are input, a mixed sound will be output. ・Transmission frequency: B band (select any one of the 30 channels in the 806.125-809.750MHz band) ・Transmission power: 10mW ・Audio input impedance: 20kΩ ・Input level: -10 dBV; 0 dBV (ATT-10 dBV) ・10 dBV; 20 dBV (ATT-10 dBV) ・IRR (Image Rejection Ratio): 80dB ・Channel separation: 35dB ・Maximum output level: 0dBV ・LCD display: AF level, stereo/mono, attenuation level, group, channel, frequency display ・Audio input connector: Combo jack x 2 XLR (balanced) or phone (unbalanced) ・Loop-out connector: φ6.3mm x 2 (balanced) ・Dimensions and weight: 211 x 245 x 46mm (without antenna), 1.53kg ・Power supply: 100V switching power supply ＜SIEM-111R Wireless In-Ear Monitor System Receiver＞ ・Receiving frequency: B band (select any one of the 30 channels in the 806.125-809.750MHz band) ・Transmission method: PLL synthesizer method ・Earphone output: 60mW ・LED display: RF level, lock-on, battery level gauge, stereo/mono, HF booster, dynamic limiter, group, channel, mute, frequency display ・Input level selection switch: 0dB / -10dB ・Output connector: 1/8 inch stereo phone jack ・Power supply: 2 x AA alkaline batteries ・Continuous use time: More than 12 hours ・Dimensions and weight: 190x75x30mm, 0.2kg ※Number of simultaneous uses: 5 waves ※There is no limit to the number of receivers that can be connected to one transmitter. ※Stereo/mono output can be selected. *When inputting a mono sound source, each is a mono input, so if two are input, a mixed sound will be output. Note: Using a mono mini-jack earphone with the receiver may damage the unit. Please be sure to use a stereo mini-jack earphone.
