BOSS / WL-30XLR

Wireless for dynamic microphones for quick setup. A stable connection is achieved by scanning 14 channels of radio waves with the touch of a button. With a transmission range of 70m, the performer can move around freely on the stage. It can be used continuously for up to 11 hours. With a channel lock function to prevent erroneous operation during performance.

BOSS's unique wireless technology provides high-quality sound and ultra-low latency, and wireless for dynamic microphones for quick setup.

Wireless for dynamic mics for quick setup
High-quality sound and ultra-low latency with BOSS's unique wireless technology
Setup is possible with a simple 2-step operation
Both the transmitter and receiver are powered by a single AA alkaline battery. Can be used continuously for up to 11 hours
Transmission range covers up to 70m (see * 1)
Scan 14 channels to maintain a stable connection
Equipped with LED battery light that can visually check the operating time

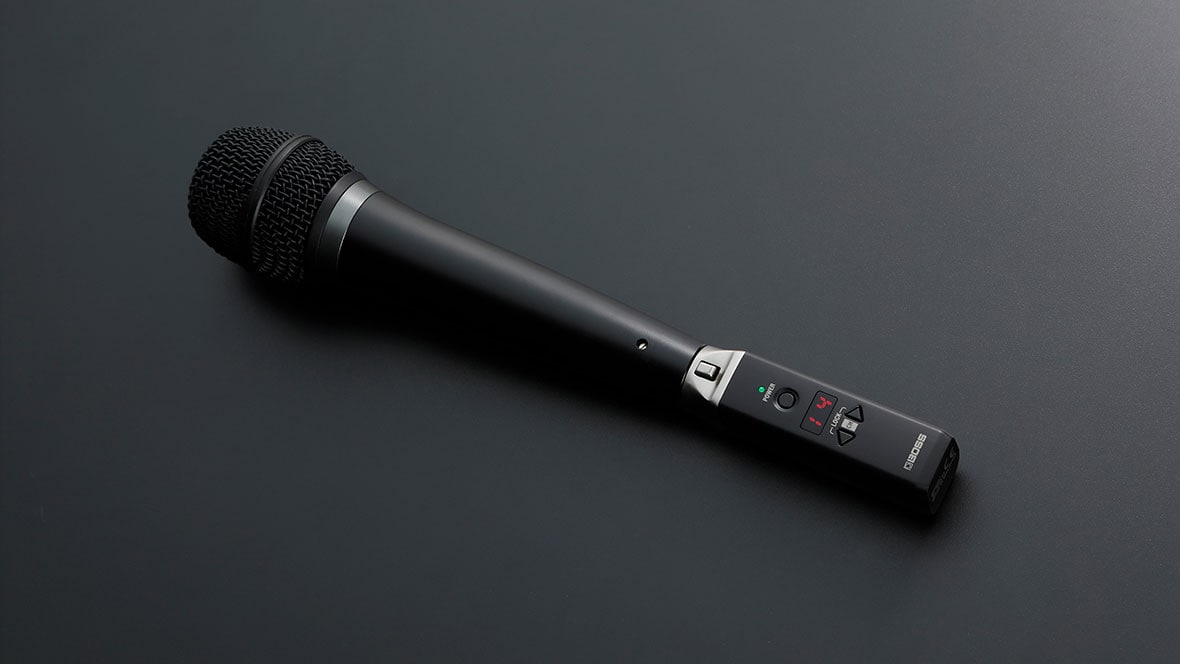

Lightweight and compact transmitter for comfortable performance
The output terminal of the receiver is an XLR type. Can be connected directly to mixers, amplifiers, and audio interfaces
Channel lock function to prevent erroneous operation during performance
* 1 Varies depending on the conditions of the place of use

■ Specifications
● Receiver
-Wireless communication format: Digital audio by the boss's original method
・ Wireless carrier frequency: 2.4GHz
・ Number of channels: 14 (varies depending on the conditions of the place of use)
・ Transmission range outlook: 70m (varies depending on the conditions of the place of use)
・ Latency: 2.3ms
・ Dynamic range: 110 dB or more
・ Frequency characteristics: 20Hz-20kHz
・ Specified output level: -40dBu
-Non-clip maximum output level (1kHz, typ.): 0dBu
・ Output impedance: 600Ω
・ Recommended load impedance: 10kΩ or more
-Control: POWER button, CH button, SCAN button
・ Display: 7-segment 2-digit LED
・ Indicator: POWER, RECEIVE
-Connection terminal OUTPUT terminal: XLR type
・ Power supply alkaline battery (AA type) x 1
・ Current consumption 130mA
・ Battery life during continuous use Alkaline battery: Approximately 11 hours (depending on usage conditions)
・ Accessories: Instruction manual, "Safety Precautions" leaflet, transmitter, alkaline battery (AA) x 1, warranty card, Roland user registration card
・ External dimensions: 23 (width) x 27 (depth) x 99 (height) mm
・ Mass (including batteries) 90 g

● Transmitter (WL-30XLRT)]
・ Specified input level: -40dBu (4kΩ)
-Non-clip maximum input level (1kHz, typ.): 0dBu
・ Control: POWER button, CH button
・ Display: 7-segment 2-digit LED
・ Indicator: POWER
-Connection terminal: INPUT terminal: XLR type
・ Power supply alkaline battery (AA type) x 1
・ Current consumption: 120 mA
・ Battery life during continuous use: Alkaline battery: Approximately 14 hours Depends on usage conditions)
・ External dimensions: 23 (width) x 27 (depth) x 99 (height) mm
・ Mass (including batteries) 90 g

* 0dBu = 0.775Vrms
