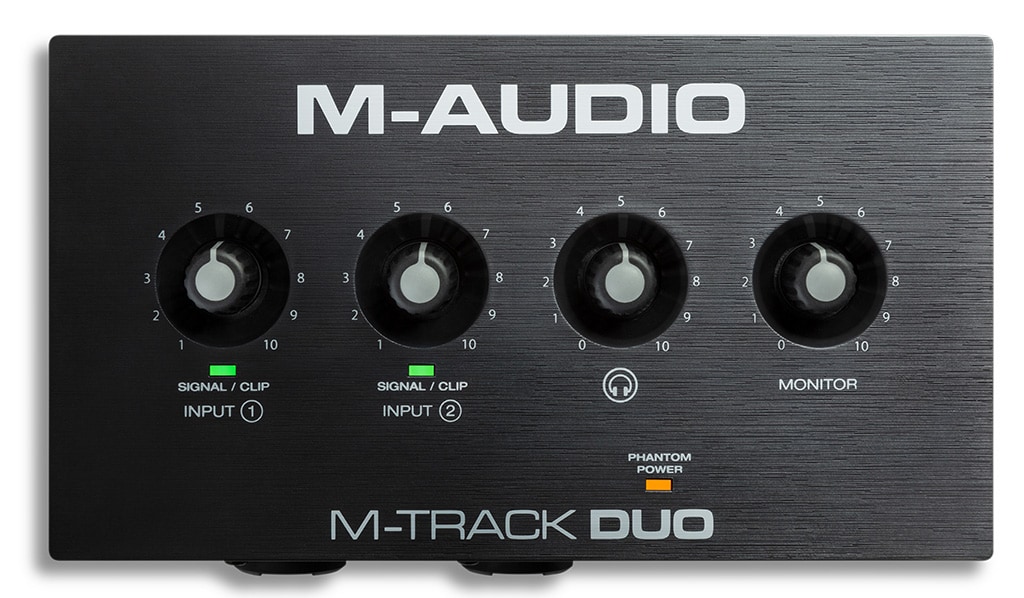

M-AUDIO / M-Track Duo USB Audio Interface

The M-Track Duo is a portable audio interface packed with basic features. In addition to supplying phantom power, it is an audio interface that can flexibly handle direct monitors and microphone/line/instrument input sources. It is ideal not only for music production, but also for high-quality live streaming and podcasts. Comes with a 3-year Sound House warranty!

2-channel USB audio interface
48kHz, 2-channel USB audio interface
Two combo inputs with built-in crystal preamps
Equipped with phantom power

Compact audio interface that enables clear sound quality
M-Track Duo is a portable recording audio interface in its class. In addition to its compact and simple design, it achieves high-resolution recording at 16bit/48kHz. It is ideal for music production on Mac/PC/iOS devices. Supports recording of any audio source. Equipped with two combo inputs with built-in crystal preamps with phantom power, it can also be used for recording from various microphones. It also has a switchable Line/Instrument input terminal for direct input of electric pianos, drum machines, guitars, basses, etc. It is USB bus-powered, so it is highly portable and can be recorded anywhere. With just M-Track Duo and a laptop, you can podcast, create music, and mix anywhere.

Direct monitoring with headphones
Both the 1/4"" headphone jack and the RCA main output jack allow for zero-latency monitoring of the mic/line/instrument inputs. You can also use the USB/Direct switch to balance the volume between the direct input and the software you're using on your computer. These features make it easy to record new parts to add to your project.

Crystal preamps, superior A/D converters and premium components
The Crystal preamps capture the sound from the microphone clearly and with low noise. The M-Track Solo's superior A/D converters also provide a dynamic range that captures the subtle nuances of your performance, allowing you to record in high resolution at 16bit/48kHz.

Main features of M-Track Duo

- 2-channel USB audio interface (mac/PC)

- 1 high-quality combo input with built-in crystal preamp

- Equipped with mic, instrument, and line level selector switch

- +48V phantom power for condenser microphones

- 1/4-inch RCA output terminal (stereo), 1/4-inch headphone terminal with level knob

- Direct Mono/Direct Stereo/USB switch to switch between direct mono/direct stereo for mic, line, and instrument inputs

■Specifications

- Mic input (balanced XLR)

Frequency response: 20Hz - 20kHz (+0.1dB)

S/N ratio: 109dB (A-weighted)

THD+N: 0.003% (min. gain, 0dBu out, A-weighted)

Preamp EIN: -128dBu (max. gain, 40Ω source, A-weighted)

Gain range: Direct Mono: 0dB to +54dB / Direct Stereo: 6dB to +60dB

・Line input (balanced 1/4 inch TRS)
Frequency response: 20Hz-20kHz (+0.1dB)
Input sensitivity: -43dBu
THD: 0.002% (min. gain, 0dBu out, A-weighted)
Gain range: Direct Mono: -10dB to +44dB / Direct Stereo: -4dB to +50dB

・Instrument input (unbalanced 1/4 inch TS)
Frequency response: 20Hz-20kHz
THD+N: 0.005% (min. gain, 0dBu out, A-weighted)
Input impedance: 1MΩ
Gain range: Direct Mono: -10dB to +44dB / Direct Stereo: -4dB to +50dB

・Main output L/R (impedance balanced 1/4 inch TRS)
Frequency response: 20Hz - 20kHz (+0.1dB)
S/N ratio: 109dB (A-weighted)
THD: 0.002% (0 dBu out, A-weighted)
Maximum output level: +4dBu

・Headphone output (1/4 inch TRS)
Output: 60mW/Ch, 32Ω
Frequency response: 20Hz - 20kHz (+0.5dB)
THD+N: 0.02% (A-weighted)
S/N ratio: 100dB (A-weighted)

・General
Power supply: USB bus power
Dimensions (W x D x H): 19.1 x 11.1 x 5.5cm
Weight: 0.4kg
Specifications are subject to change without notice.
