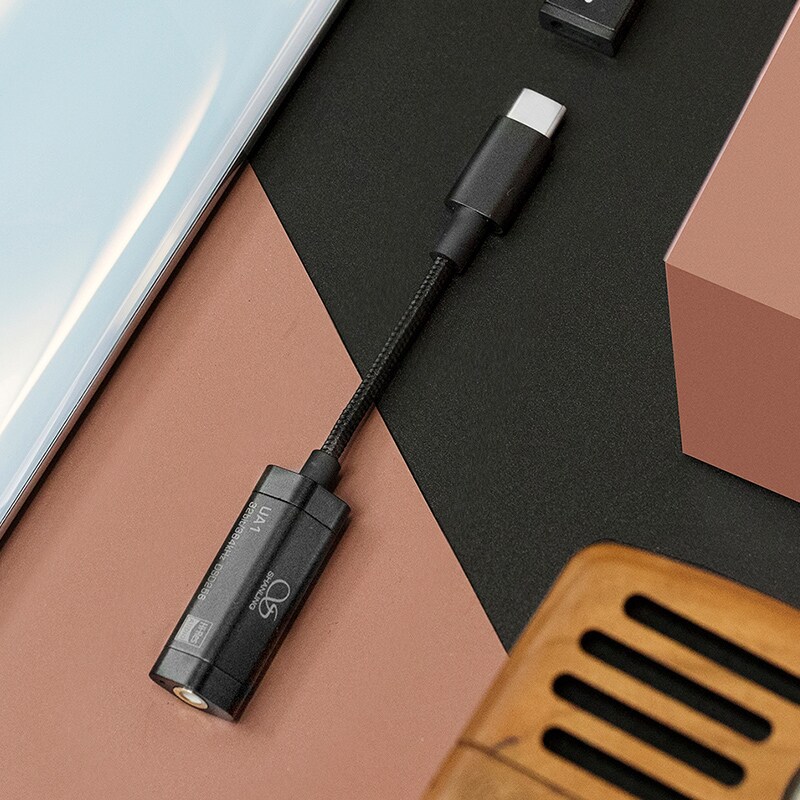

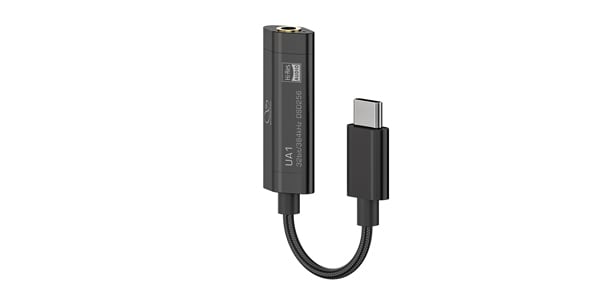

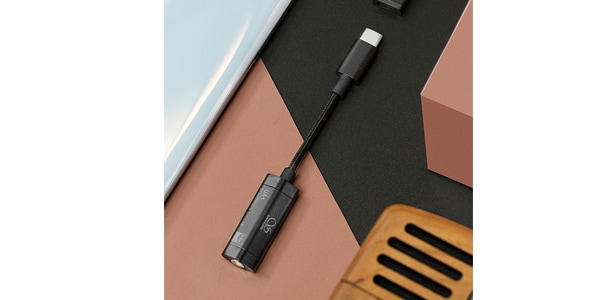

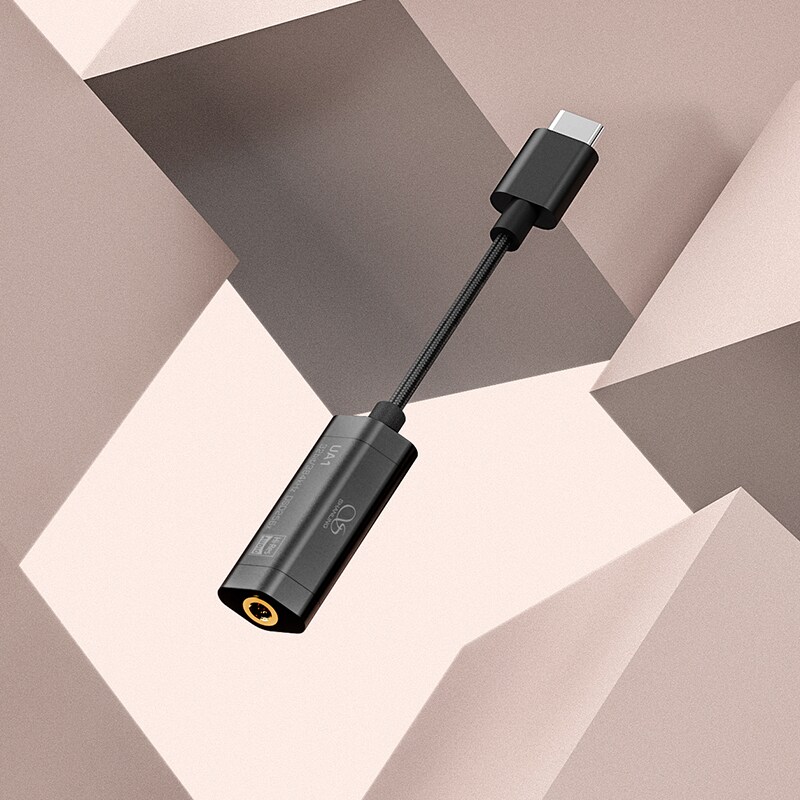

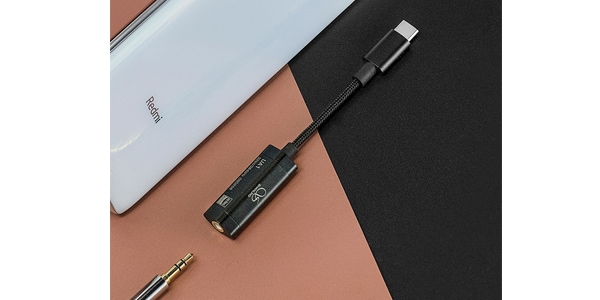

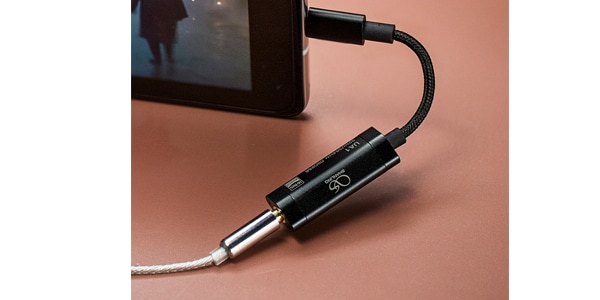

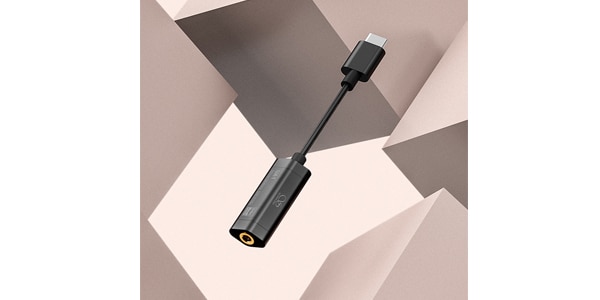

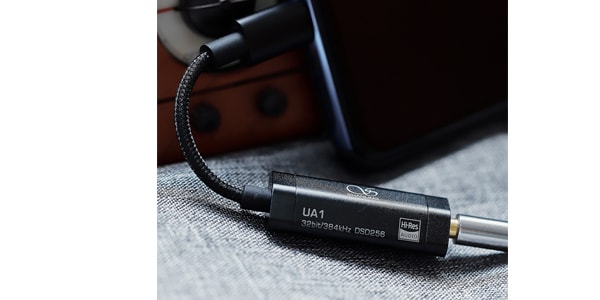

Shanling / UA1

The amplifier cable is made by Shanlin. It eliminates noise and provides excellent silence. You can also install a smartphone app to customize it for you.

■Equipped with ES9218P DAC chip
-Following Q1, UP2, and UP4, the DAC chip for UA1 is ""ES9218P"". By utilizing our extensive experience in adoption, we have maximized the performance of this DAC chip, raising the sound quality of UA1 to Hi-Fi quality.

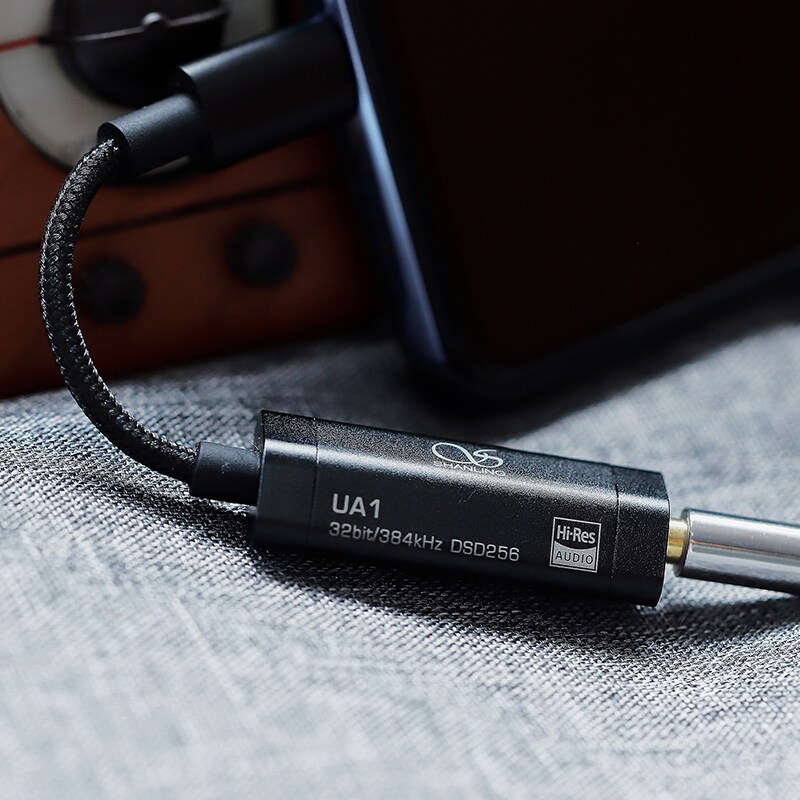

-Supported formats: DSD256, PCM384kHz/32bit
-Maximum output: 80mW@32Ω

■Excellent quietness
-Making low-noise products is one of Shanling's commitments, and this UA1 does not disappoint. In order to minimize background noise, we performed repeated tuning with the LDO regulator to achieve a jet-black background.
-THD+N: 0.001%

■Low power consumption and low heat generation for peace of mind
-Improved power conversion rate has achieved ideal temperature control and low power consumption. Shanling overturns the common sense that ""high output level = high power consumption"" through circuit design research.

■ Personalize for you using the app
・By installing the dedicated app on your smartphone, the possibilities of UA1 will be further expanded. Digital filter, equalizer, gain control, and channel balance setting functions will be available.

■ Conductive fiber shield
・Conductive fiber is used inside the UA1 housing to cover the board 360 degrees. This fiber acts as a shield and effectively blocks electromagnetic radiation and noise. Therefore, you can use it with confidence even in environments with significant radio interference such as subways.

■ USB-TypeC standard that can be used immediately just by plugging it in

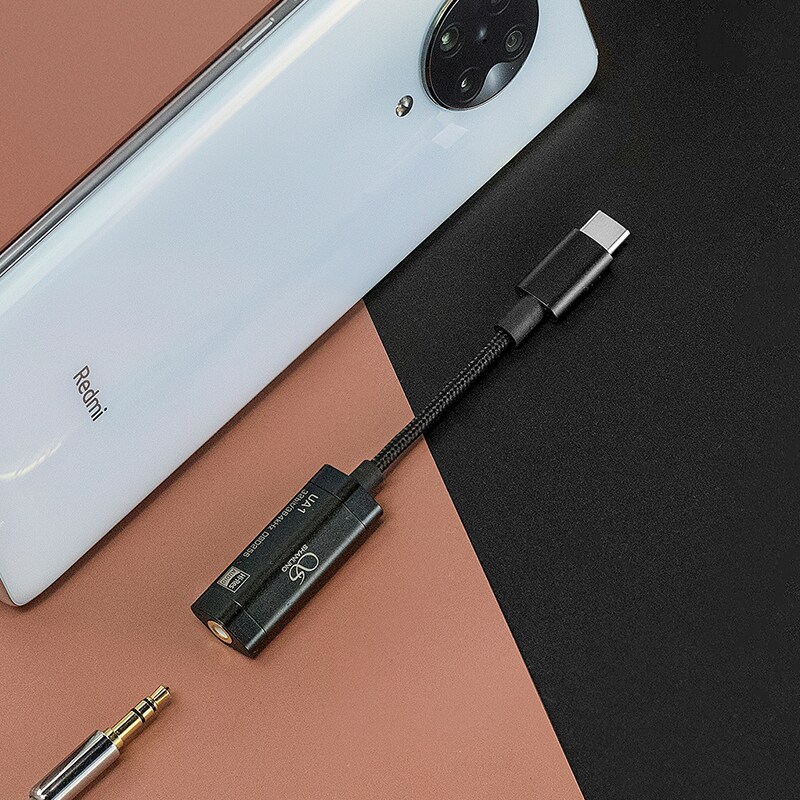

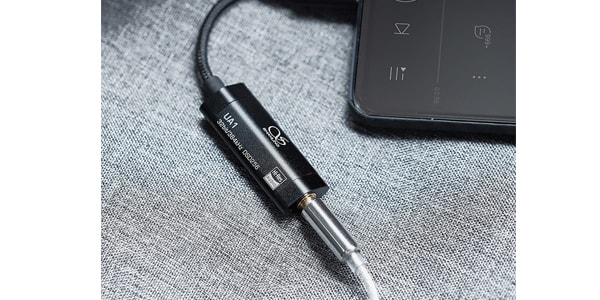

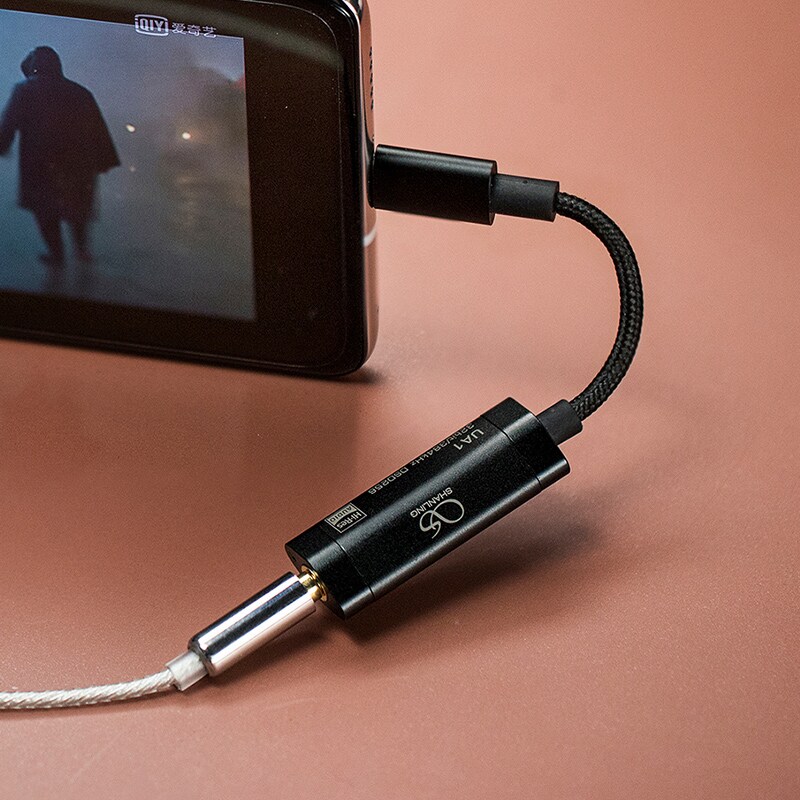

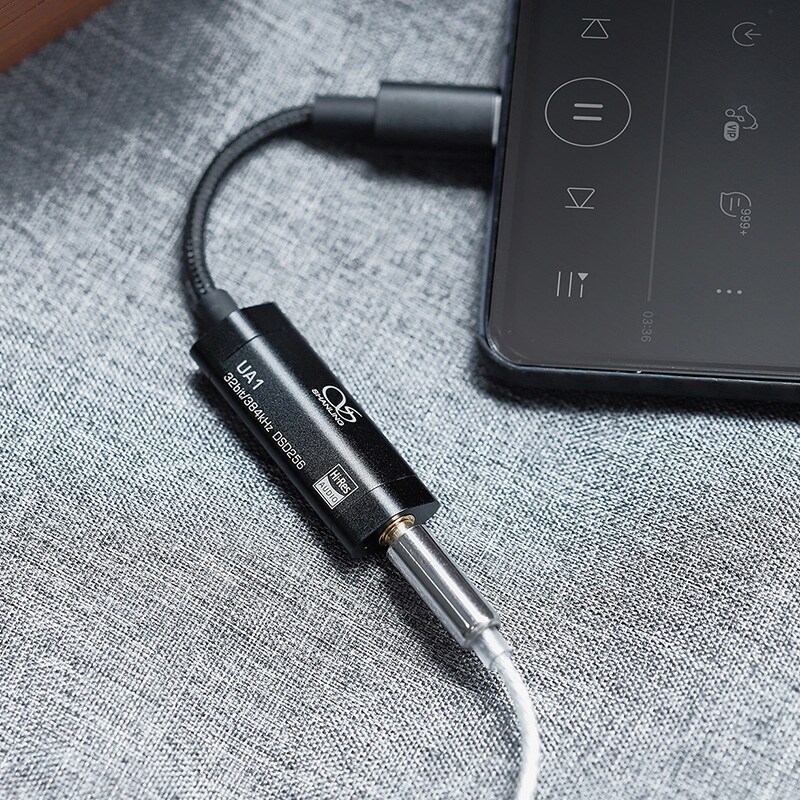

・ ""My new smartphone doesn't have a headphone jack!"" In that case, just connect the UA1. The UA1 is highly versatile and uses the USB-TypeC interface that is installed in many devices. You can continue to use your favorite wired headphones with higher sound quality.
* Depending on the model, you may need to manually recognize the device after connecting.

■Audio-grade connection cable
- High-quality audio products require high-quality connection cables. The [18-Core / 7-strand: high-purity oxygen-free copper cable] used in the UA1 suppresses sound distortion and transmission loss, supporting pure signal transmission.

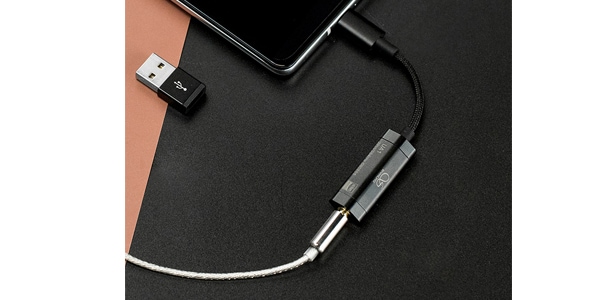

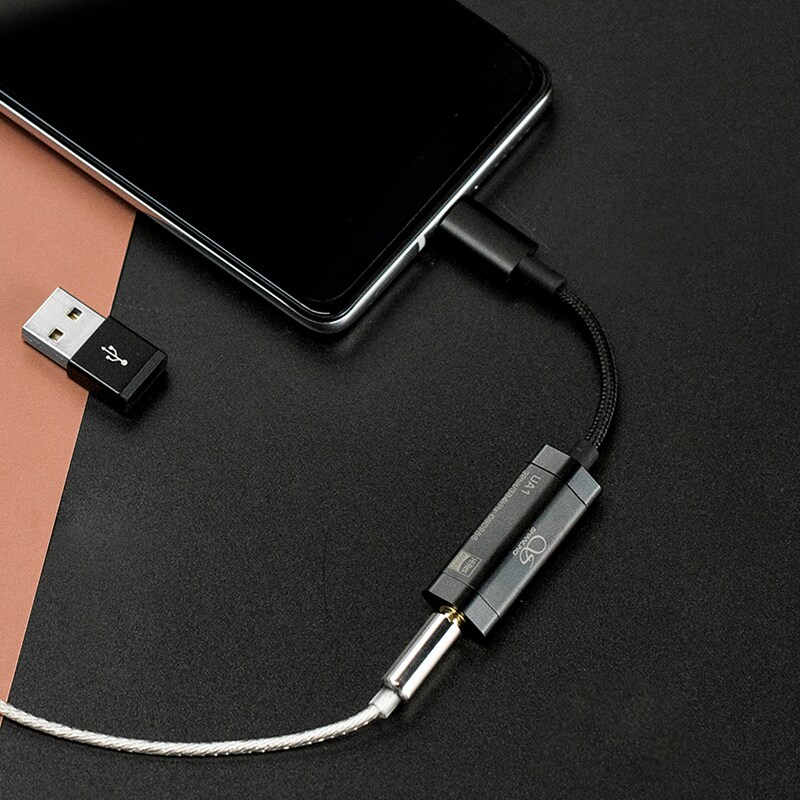

■Includes adapter to convert to standard USB connector
- You're sure to have your favorite music stored on your PC. By using the adapter included with the UA1, you can connect it to your PC and use it immediately. There's no need to go to the trouble of copying files from your computer to your smartphone.

＜Product Contents＞
UA1 main unit x1
USB-TypeC to A connector x1
Quick Start Guide x1
Warranty x1

＜Product Specifications＞
■Main unit size: 39 (including cable: approx. 116) x 15 x 9mm
■Weight: approx. 8.3g
■Output value: 1.6V @ 32Ω (80mW@32Ω)
■Frequency response: 20Hz-50kHz (-0.5dB)
■THD+N: 0.001% @ 32Ω (a-weighted)
■Dynamic range: 119dB @ 32Ω (a-weighted)
■S/N ratio: 119dB @ 32Ω (a-weighted)
■Crosstalk: 77dB @ 32Ω
■Output impedance: ＜0.5Ω
