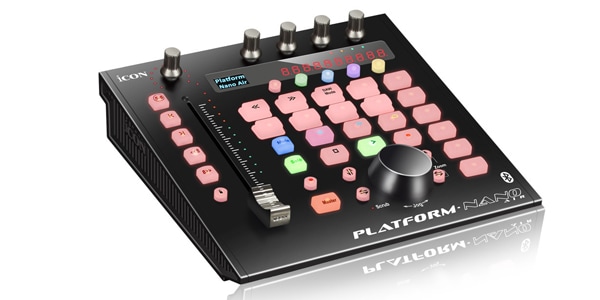

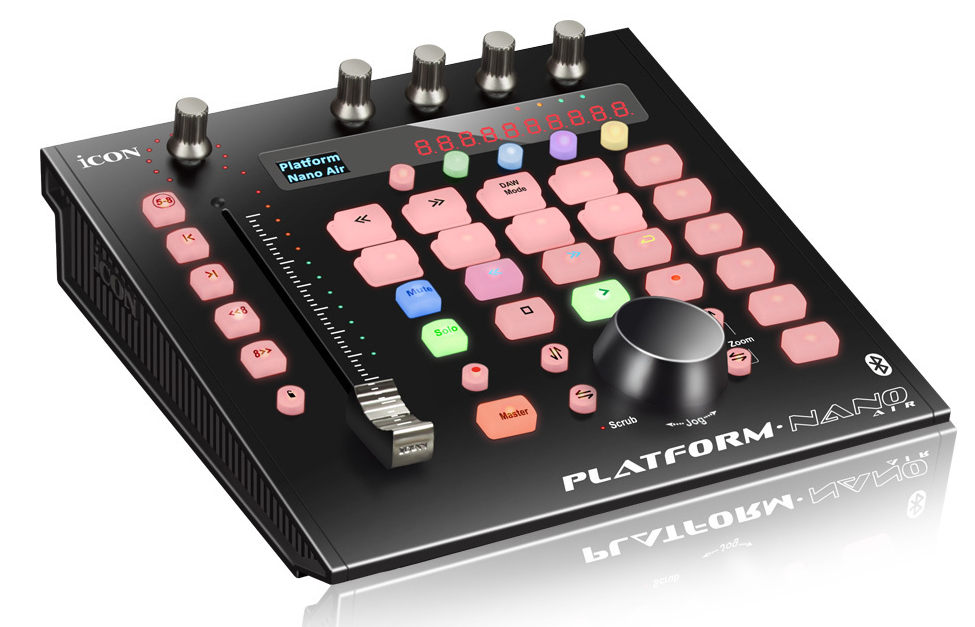

ICON DIGITAL / PLATFORM NANO AIR Physical Controller

A wireless version of a compact USB/MIDI control surface with one motorized fader.

■MIDI Control Surface

Main Features
Platform Nano Air is a compact MIDI control surface for producers, engineers, musicians, and home recordists. It provides tactile motorized fader control over USB 3.0 or Bluetooth wirelessly to DAWs and other production environments. It features one full-size motorized fader, four rotary dual-function encoders, backlit buttons for mute, solo, automation, and transport control, and a jog wheel, allowing you to shift tracks in groups of eight or by a single channel to access the entire mix.

Supports Mackie Control and HUI protocols, allowing you to control many major DAWs, including Cubase, Nuendo, Ableton Live, Pro Tools, Logic, Reason, Studio One, Bitwig, FL Studio, Digital Performer, Sonar, Samplitude, and Reaper. It also comes with an overlay sheet for each DAW you use.

When used in combination with the optional dedicated LCD module Platform D3, you can display many track names and parameter names, making it even more convenient.

■Main specifications
-Built-in wireless module compatible with Bluetooth 2.4 GHz (4.0)
-Touch-sensitive 100 mm motorized fader with 10-bit resolution
-Compact and stylish design
-Backlit LCD display showing channel names and parameter values
-1 (main) + 4 dual-function (turn/push) rotary encoder knobs
-11-segment LEDs for position around the main knob
-12-segment LED display for time and location
-Jog wheel for fast search, scrub and control
-8 function buttons with 5 color modes
-Illuminated buttons for mute, solo, record, etc.
-Illuminated transport buttons for play, stop, record, rewind, fast forward and loop
-Illuminated zoom button with 2 directional keys for use with the jog wheel
-2 illuminated track buttons for easy selection of each channel
-2 illuminated bank buttons for shifting in 8-channel increments
-Mackie Control Universal protocol and HUI Supports compatible DAWs through protocol implementation
- Includes overlay sheets for Cubase / Nuendo, Logic Pro, Digital Performer, FL Studio, Samplitude, Reaper, Studio One, Bitwig, Reason, Pro Tools, Sonar, Ableton Live, and user settings
- Includes iMap software for easy mapping of MIDI functions
- Easy firmware updates with USB connection and iMap software
- High-speed connection via USB 3.0 (USB 2.0 connection and use via USB hub are not supported)
- Two freely configurable foot switch terminals (only compatible with 1/4 inch TS and Mackie Control)
- Built-in 3000mAh lithium secondary battery that can be operated for up to 5-6 hours
- Optional Platform D3 expansion display can be connected
- Highly accurate assembly quality
- Equipped with Kensington lock port
- USB 3.0 cable included
- External dimensions: (Main unit) 195 x 215 x 55 mm / (Wireless dongle: Body exposed when connected to USB port) 56 x 24 x 14 mm

Weight: (Main unit) 855 g / (Wireless dongle) 17 g

Supported OS: Windows 10 / macOS 10.12 or later (class compliant)

Depending on the version of the DAW, not all parameters may be available.
