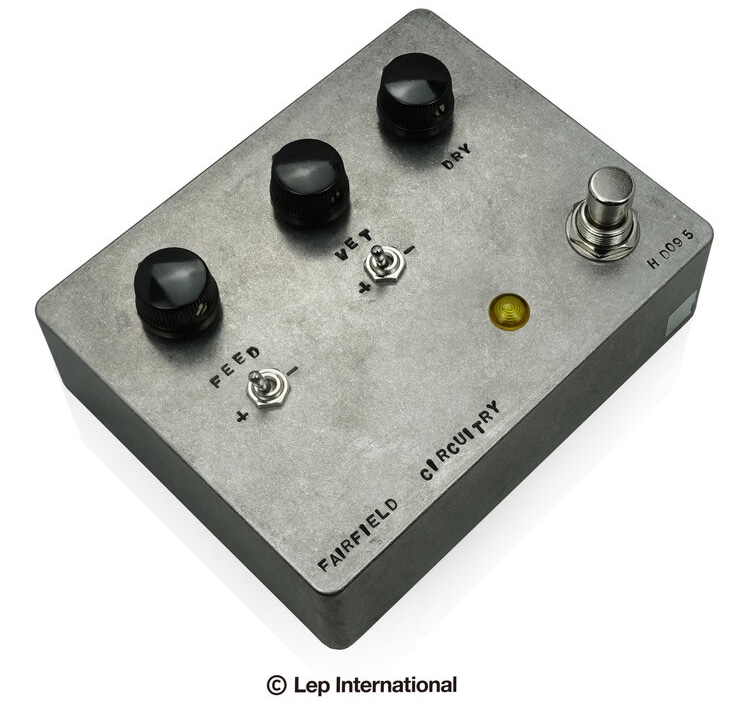

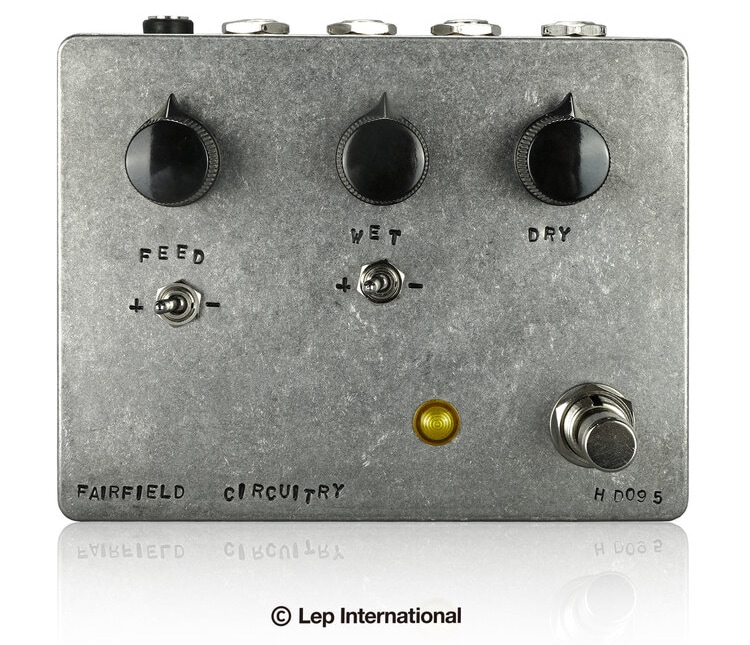

Fairfield Circuitry / Hors D'oeuvre?

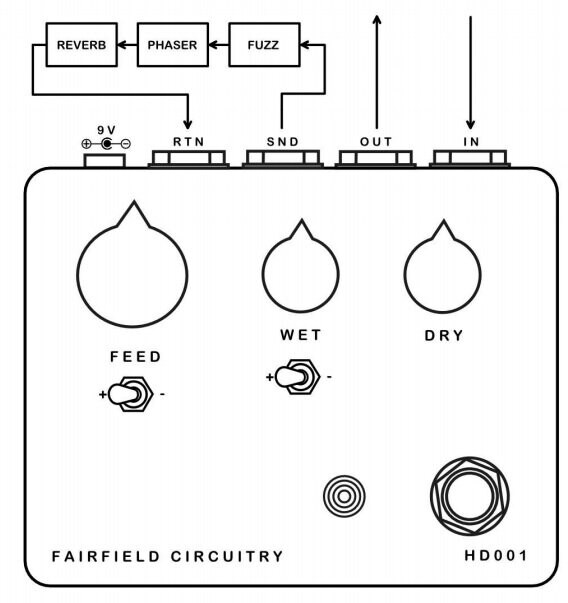

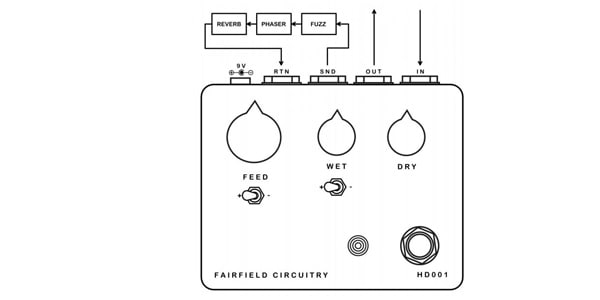

A feedback looper that returns a portion of the signal from the output of the equipment to the input. It can produce various effects, such as oscillation and special effects, depending on the equipment connected. It can also be used as a loop box with a clean mix function.

■Guitar effects
■Feedback looper
■Controls: FEED, WET, DRY
■Recommended effects for loops
・Pitch shifter
・Fuzz
・Reverb
・Ring modulator
・Delay
・Phaser
・Looper
■Specifications
・True bypass
・Input impedance: 1MΩ
・Output impedance: 1kΩ
・Power supply: 9-9.6VDC center negative (batteries cannot be used.)
・Current consumption: 30mA
