AKG / 5100247-00

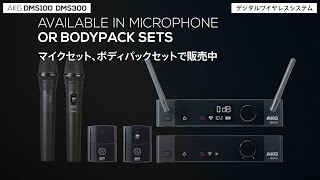

AKG wireless microphone set. Up to four units can be used in the same area. Adopts a diversity system to achieve stable transmission and reception. Comes with a receiver, handheld transmitter, microphone holder, two AA alkaline batteries, a power adapter, and an English instruction manual.

■Features
- Up to 4 units can be used in the same area.
- Audio information is encrypted and transmitted using AES256bit, reducing the risk of data leaking to the outside.
- Diversity system is used. Stable transmission and reception is achieved. Furthermore, it is equipped with a DFS function that automatically switches the transmission and reception frequency according to the surrounding radio wave conditions.
- 24bit/48kHz digital transmission system is used. Captured sound is reproduced clearly without degradation.
- Equipped with XLR terminal and TS phone terminal on the back.

■System specifications
Carrier frequency: 2.4GHz band (2402MHz-2480MHz)
Encryption: 256-bit AES
Maximum number of systems: Up to 4 systems can be used in the same area *1
Maximum reach: Approximately 30m *The reach of the radio wave varies depending on the radio wave conditions, reflections and interference *2
Latency: 2.9ms or less
Radio wave format: F1D
Modulation method: GFSK (Gaussian filter shift keying)
Number of tuners: 1ch
RF output: 10mW
THD: 0.05% or less
Frequency characteristics: 70Hz-20kHz (+1/-3dB)
Dynamic range: 116dB
AD-DA conversion: 24bit, 48kHz

■Receiver
Number of tuners: 1ch
Output terminal: XLR or TS phone
Maximum output: XLR: +15dBu, TS Phone: +9dBu
Power supply: Power adapter (AC100V, 50/60Hz), DC 9V (1.3A),
Dimensions (W x H x D): 200 x 44 x 141mm (excluding protrusions)
Weight: 368g

■Handheld transmitter
Type: Dynamic
Directional characteristics: Supercardioid
Antenna type: Built-in
Power supply: 2 x AA alkaline batteries
Battery life: Approximately 12 hours *Depends on usage and environment.
Dimensions: φ51 x 250mm
Weight: 248g (excluding batteries)

*1 The receiver has one tuner, so one receiver can receive one microphone. The maximum number of units that can be operated simultaneously is the maximum number that can be operated simultaneously when used in a situation where there is no radio interference.
*2 Because the device uses the 2.4GHz frequency band, the communication distance may be shortened or the sound may be interrupted if there is an obstacle between the transmitter and receiver, if the transmitter or receiver is placed directly on the ground or floor, if it is used outdoors in the rain, or if it is used in a location where devices that emit radio waves, such as wireless LAN or microwave ovens, are in use. If it does not work properly, remove the obstacle or change the location of use.
