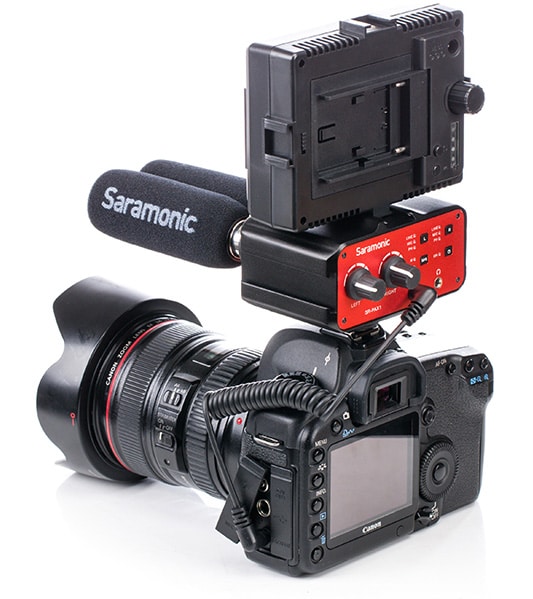

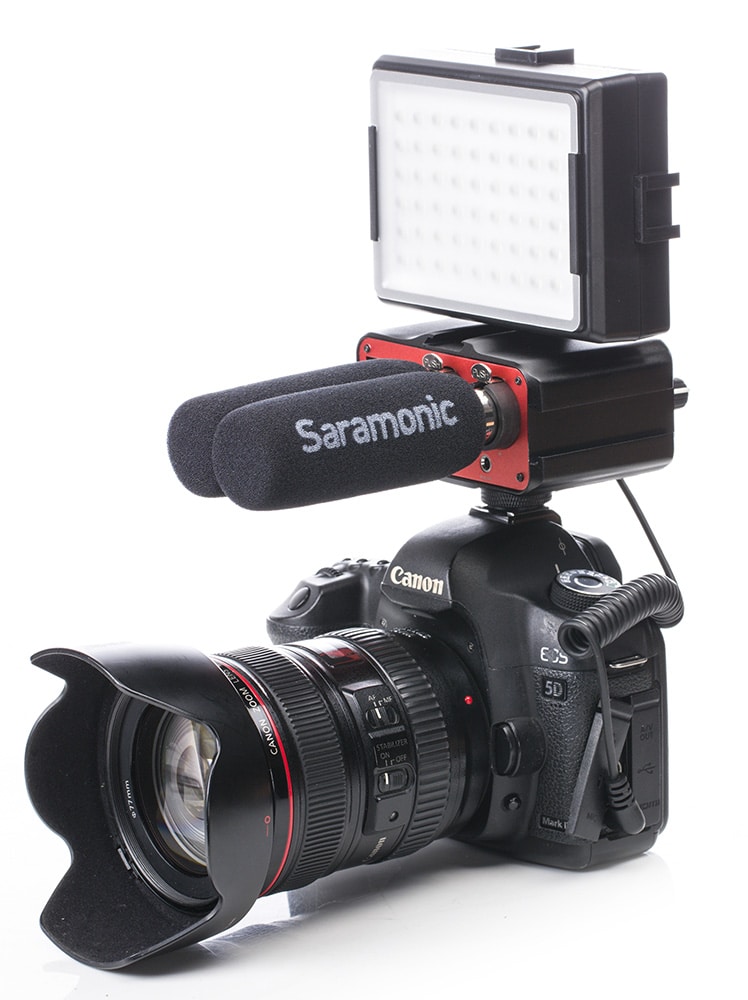

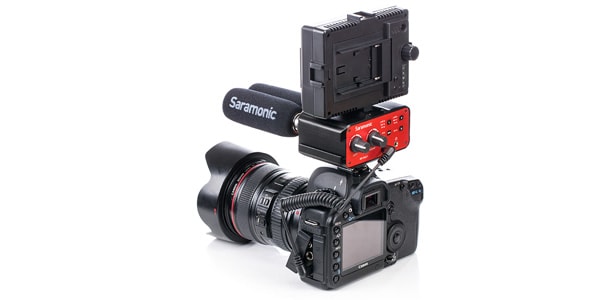

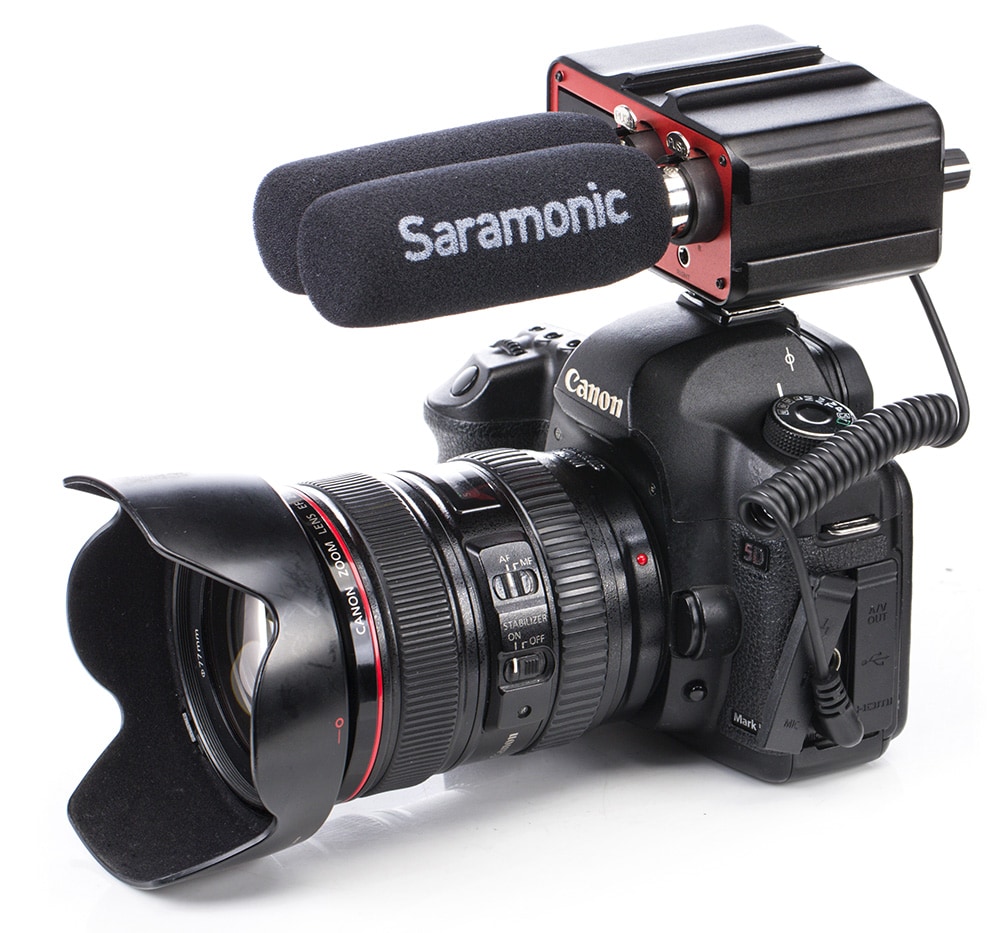

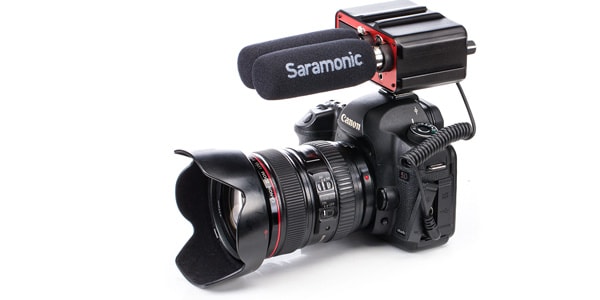

Saramonic / SR-PAX1 Camera Audio Adapter Active

2-channel active audio adapter for cameras with shoe mount. Built-in preamp and phantom power. Mixes two audio sources with high quality sound. Easily control the volume input level of each channel with the knob. Also includes a 3.5mm stereo mini jack for monitoring with headphones.

■Audio adapter (active)
2 x 3.5 mm stereo mini jack inputs

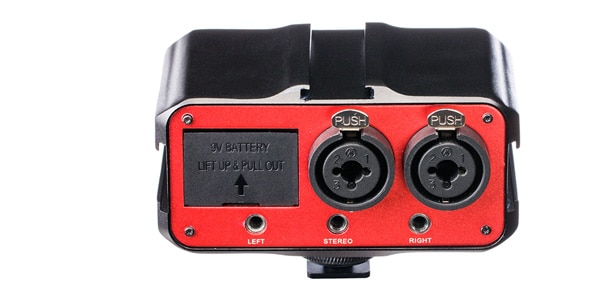

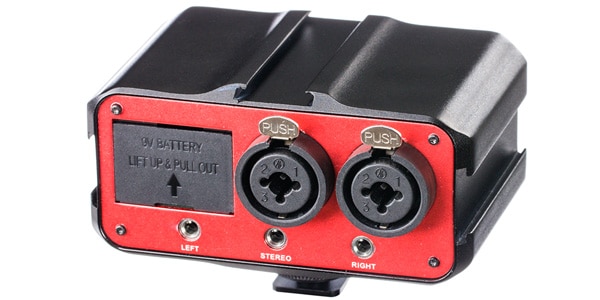

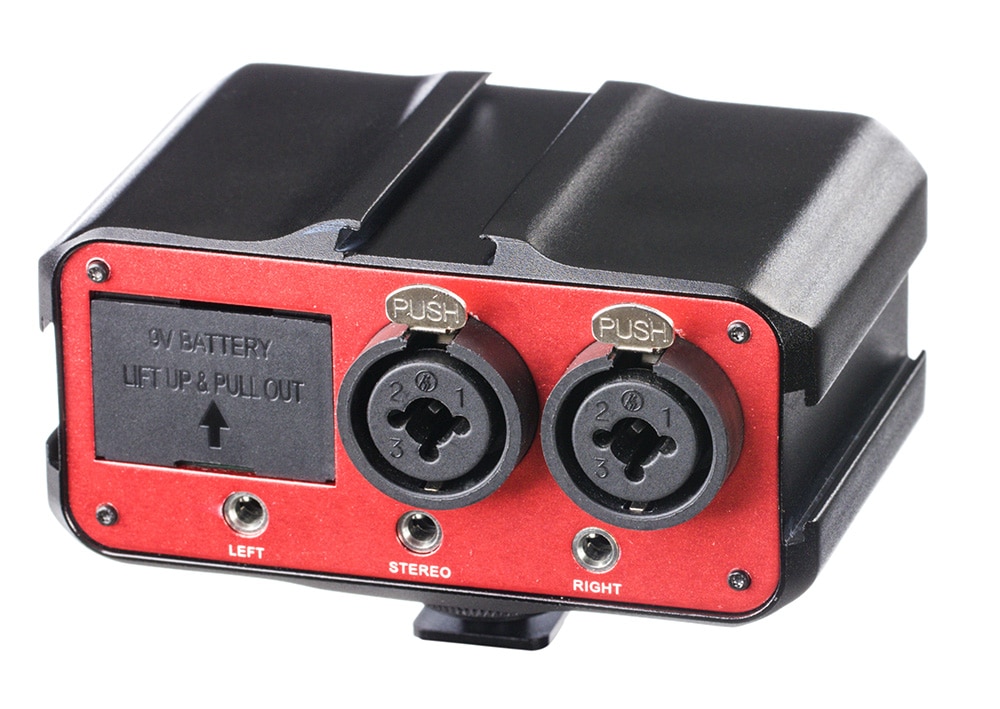

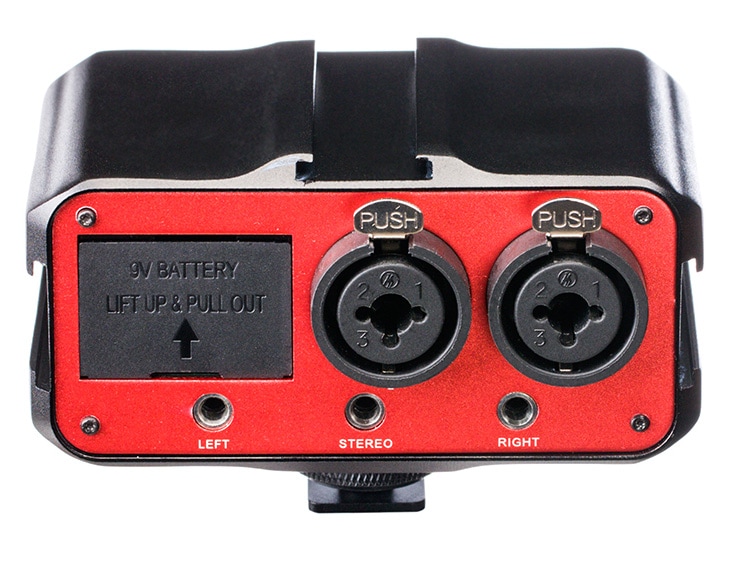

2 x XLR balanced inputs
2 x standard 6.35 mm (1/4 inch) mono jacks
1 x 3.5 mm stereo mini jack output

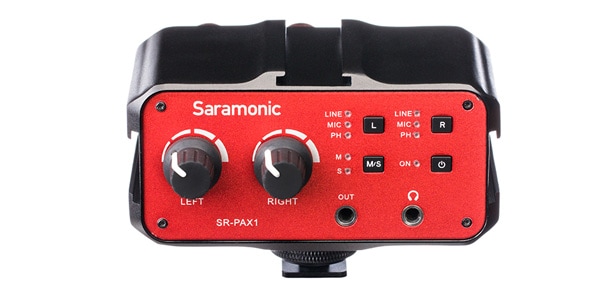

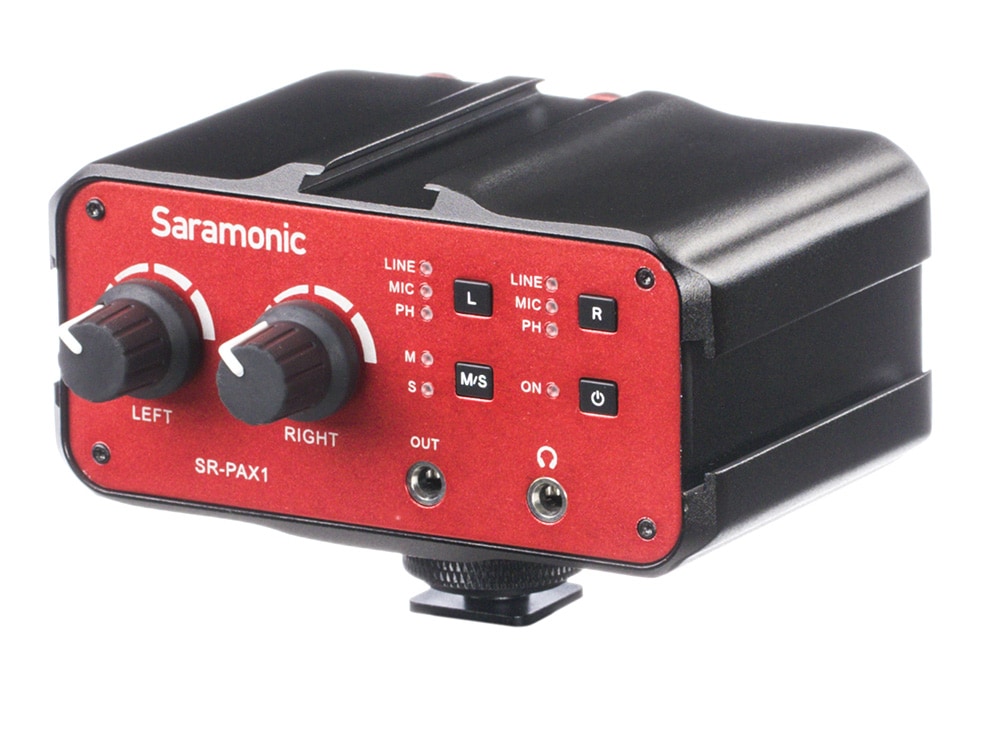

Mono/stereo switch (M/S)
Adjust the signal of each channel to set the optimal recording level
LINE/MIC/PH switch
3.5 mm headphone output for monitoring


Input: 2 x XLR & 6.3 mm jacks, 3 x 3.5 mm jacks
Output: 1 x 3.5 mm jack
Frequency response: 20 Hz to 20 Khz, +/-1 dB
THD: 0.01% @ < 1 kHz, -30 dBu input
SNR: 74 dBu @ 1 kHz, -30 dBu input

L & R Gain: LINE: -30 dBu MIC: 0 dBu, MIC/PH: 0dBu
Phantom power: 48V power (XLR), 5V power (3.5mm jack)
LED power indicator: Power on (blue), low battery (red)
Power requirements: 9V alkaline or lithium battery (not included)
Weight: 357g
Dimensions: 101.2mm x 85.0mm x 65.5mm
