Saramonic / SmartRig+ UC smartphone audio interface USB-C connection

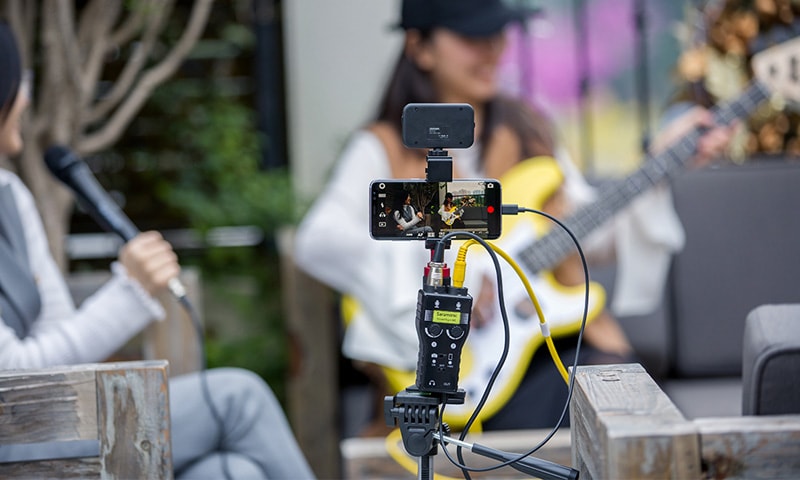

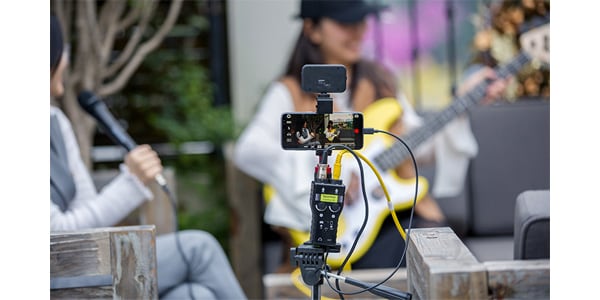

An audio interface that can be used with devices such as Android smartphones equipped with a USB-C terminal. Equipped with a combo jack that can connect XLR and phone plugs, and two 3.5mm microphone inputs. Phantom power can also be supplied. The headphone output terminal can also be used for real-time monitoring, making it ideal for high-quality Vlog production and live streaming that emphasizes music. Comes with a reliable 3-year Sound House warranty!

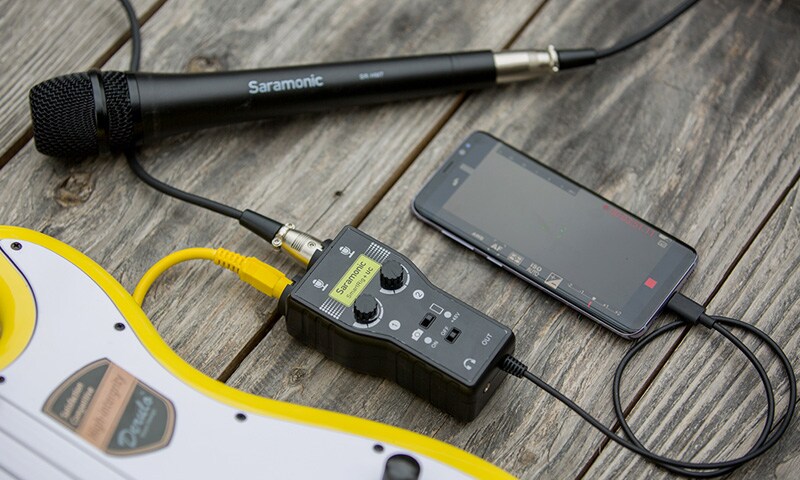

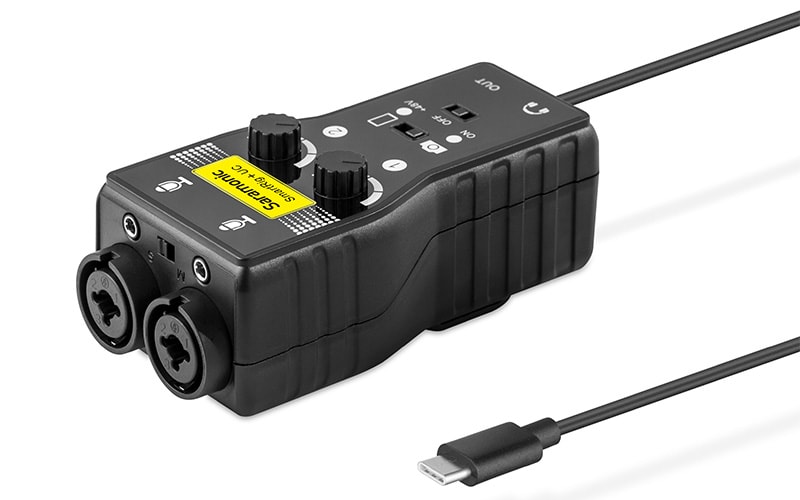

Saramonic SmartRig+ UC is a 2-channel audio interface. You can connect a professional microphone/guitar to record high-quality sound or create music with your USB Type-C device.

Using the USB Type-C connector, you can record great stereo sound to your device.

SmartRig+ UC makes your recording work easier. It has 48V phantom power for microphones and a 3.5mm headphone output for real-time monitoring.

Two gain controls make it easy to set the level of each channel individually.


-USB-C output audio interface

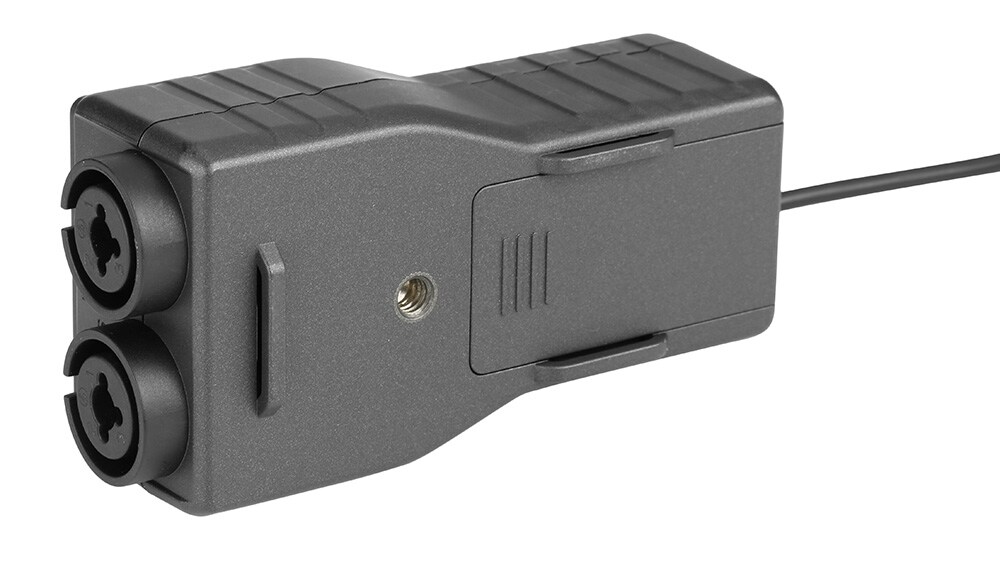

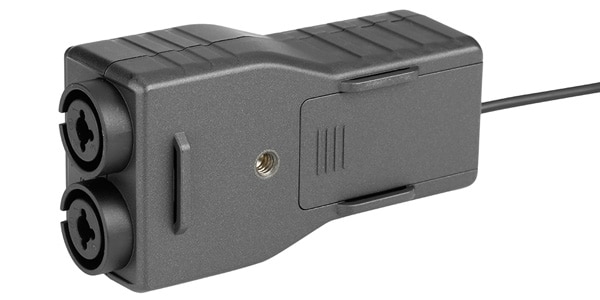

-2 x XLR inputs
-2 x 6.35mm phone inputs (guitar)
-2 x 3.5mm inputs

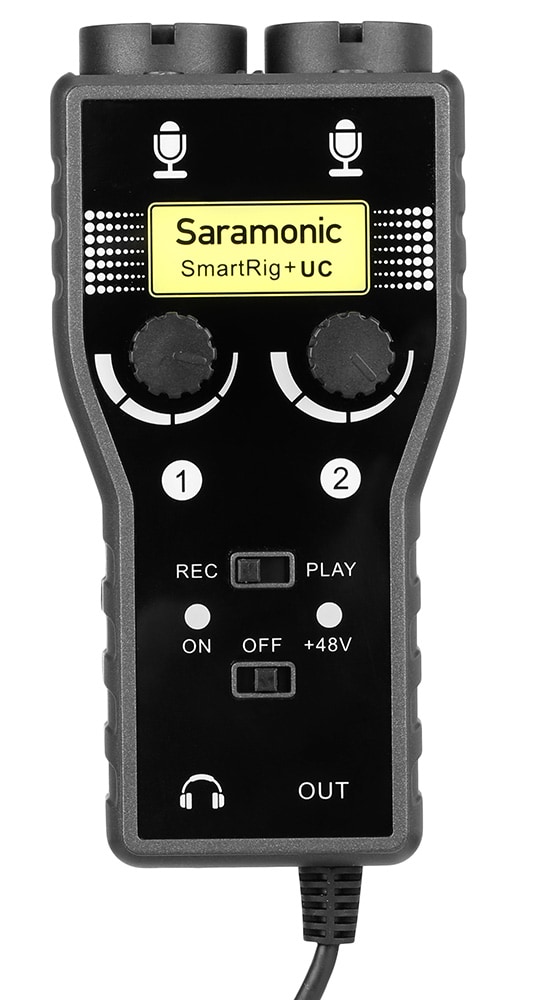

-Mono/stereo switch
-REC/PLAY switch
-Phantom power (48V) supply possible

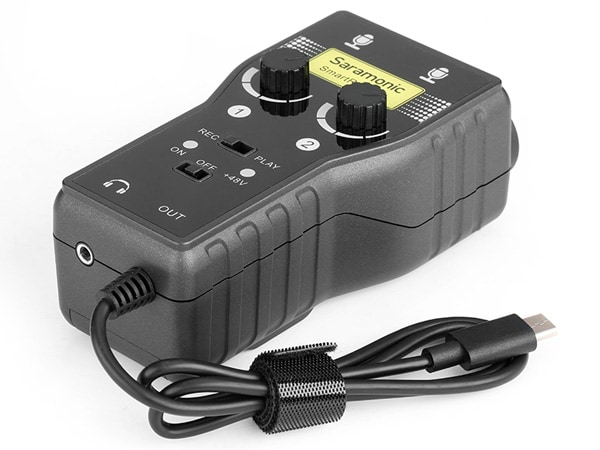

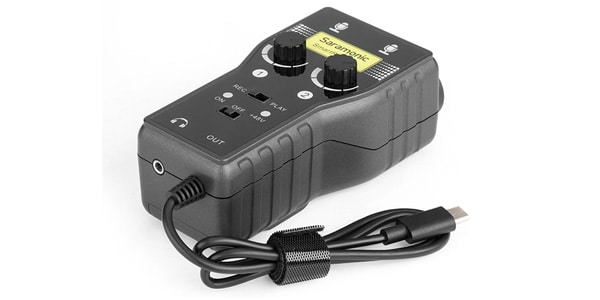

-3.5mm headphone output (for monitoring)
-Gain control
-USB-C connector for output


Frequency response: 20 Hz to 20 Khz, +/-0.5 dB
THD: less than 0.01%@1KHZ, -30dBu input
Signal-to-noise ratio: 80 dB @ 1 kHz, -30 dBu input
Input 1: 1 x XLR input, 1 x 6.35mm guitar input, 1 x 3.5mm input
Input 2: 1 x XLR input, 1 x 6.35mm guitar input, 1 x 3.5mm input
Output terminal: USB Type-C connector
Headphone output: 3.5mm Output
Gain: +20 dB to -∞
Phantom power: 48V
Power source: 9V battery
Dimensions: L120 x W40 x H40 mm
Weight: 130g
Continuous use time: 3.5 hours

*This is designed to be used in conjunction with an app that supports external audio device input.
