MOOER / R7

A reverb pedal unique to Mooer that contains 7 types of reverb effects in a small body. In addition to standard rooms, halls, springs, plate reverbs, effects such as Mod, Cave, and Church are also available. You can adjust the high/low range of the reverb sound, and control the material that forms the space, the hardness of the space, and the transparency.

■ Guitar effector
■ Reverb
■ Specifications
・Input: 1/4 inch monaural jack (impedance: 2.2 MΩ)
・Output: 1/4 inch monaural jack (impedance: 100Ω)

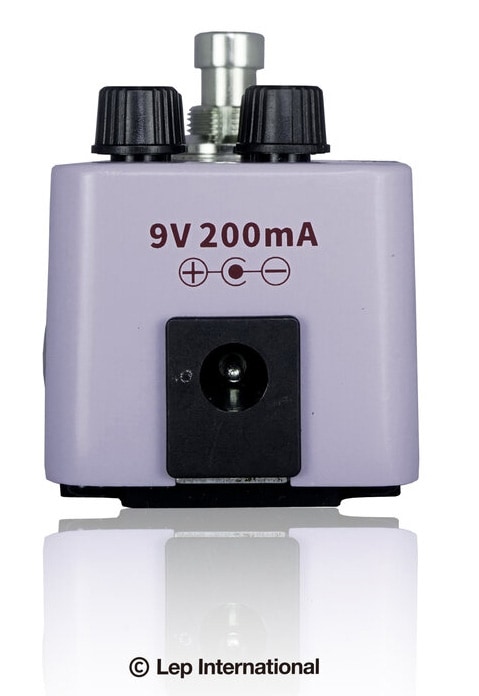

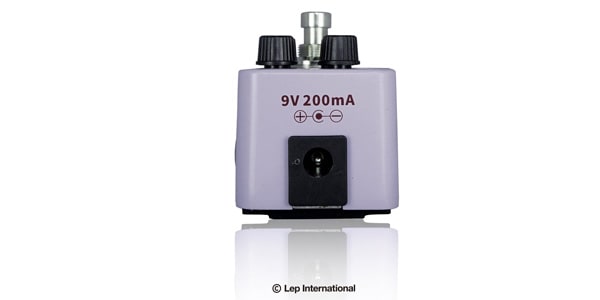

■ Power supply: Center minus DC9V adapter, 220mA (sold separately)
■ Current consumption: 220mA
■ Size: 93.5mm(D) x 42mm(W) x 52mm(H)
■ Weight: 155g

■ Features
・Includes 7 types of reverb algorithms
・Trail On function that can bypass effects naturally
・Buffered bypass
・Presets can be saved for each effect
・Supports firmware update from USB
■ Effect type
・Room: Room reverb in a small space
・Hall: Concert hall reverb
・Church: Church reverb in a larger space
・Cave: Reverb reminiscent of a huge canyon
・Plate: Studio-style plate reverb
・Spring: Classic spring reverb tank sound
・Modulation is applied to the reverb

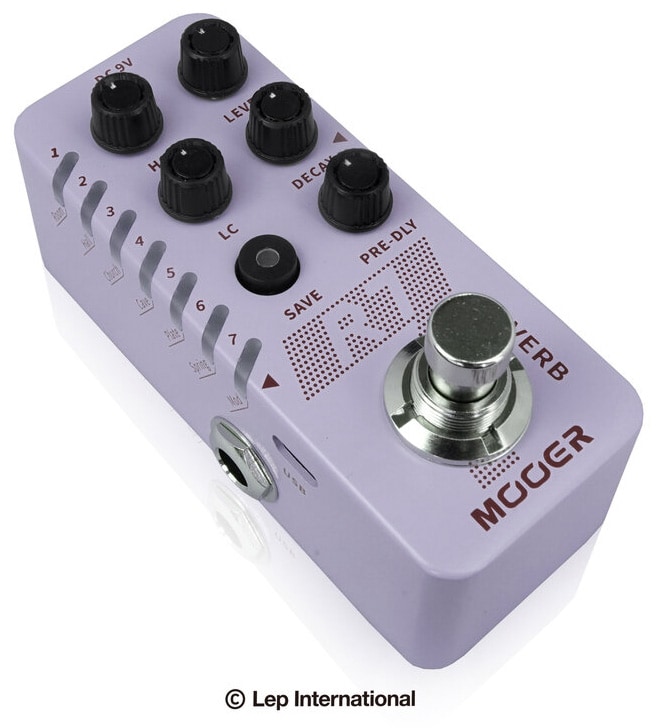

■ Control
・LEVEL: Adjust the volume
・DECAY: Adjust the reverb length (decay)
・PRE-DL: Adjust pre-delay (length to first reverberation)

※The image is for reference only.
・HC: Adjust high range
・LC: Adjust low range
・SAVE: Save preset
・Foot switch: Switch effect ON/OFF
