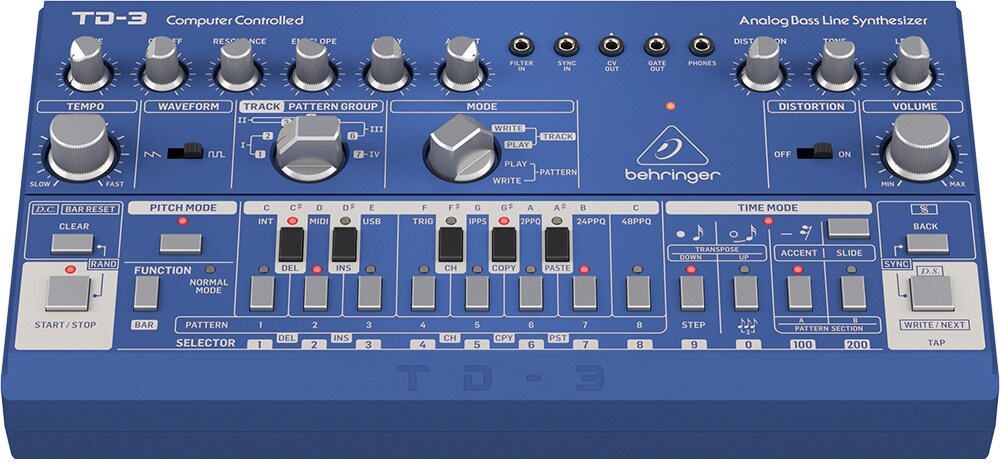

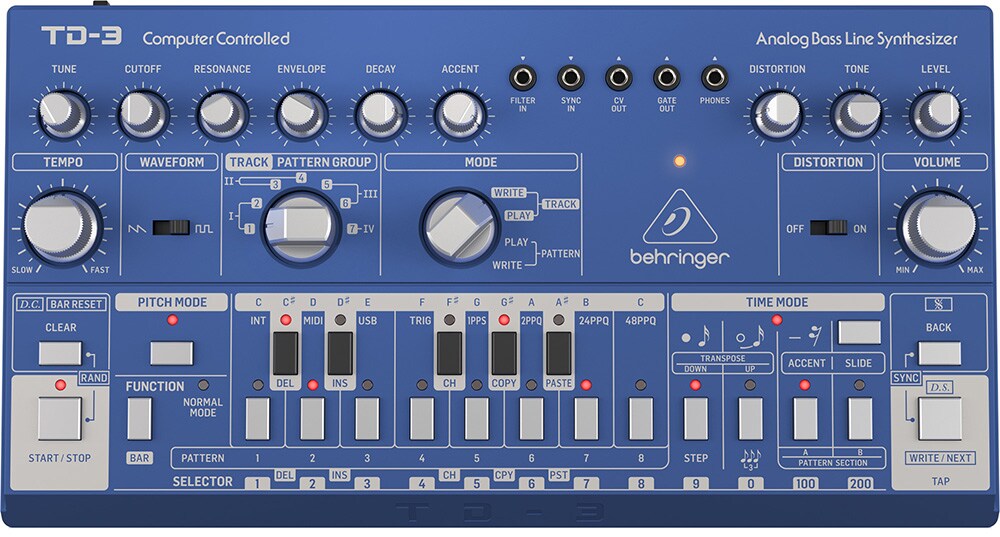

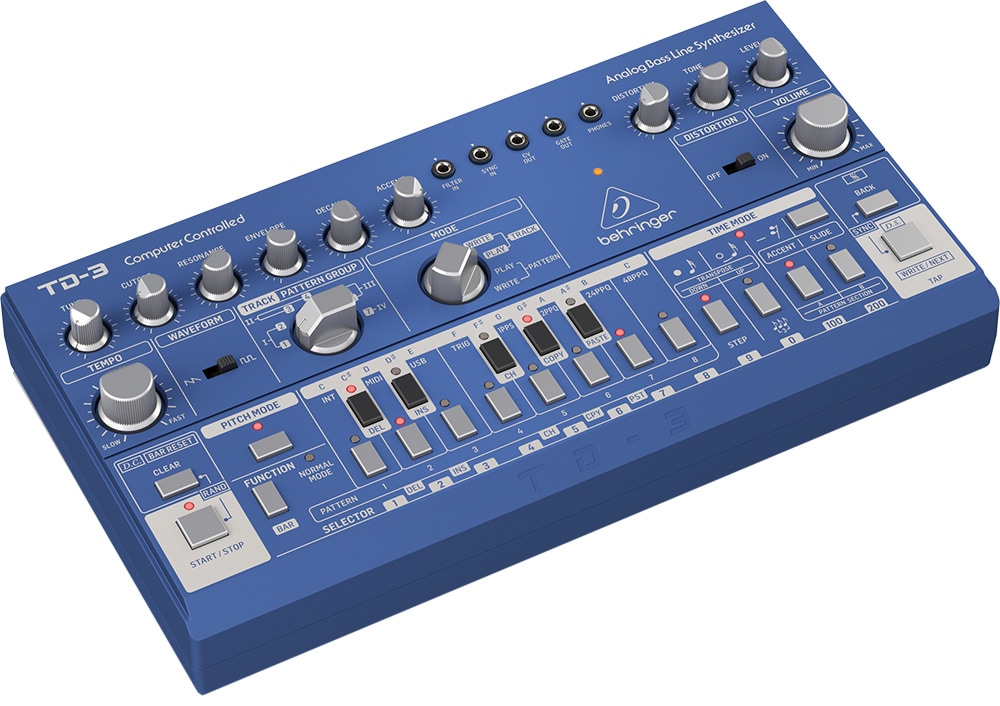

BEHRINGER / TD-3-BU bass synthesizer

An homage to the legendary synth that created house music. A new distortion circuit is added to create any kind of sound. Equipped with an analog signal path, 16-step sequencer, real VCO, VCF, and VCA filters. The sound will be a strong stimulus for track makers.

Polyphony: Monophonic
Type: analog
Number of oscillators: 1
VCF: 1 low pass
Envelope: 1

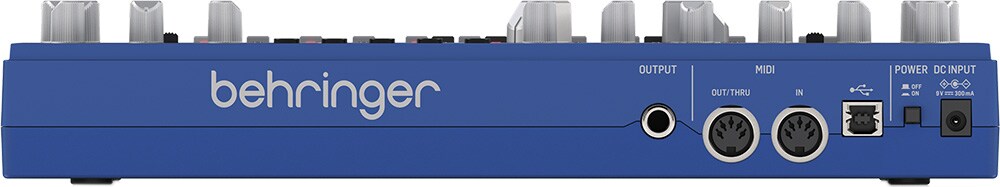

MIDI: MIDI In / Thru (1 x each, 5 pin DIN)
USB: (MIDI) USB 2.0, type B
Headphone output: 3.5mm stereo mini jack x 1
Line output: 1/4 inch TRS x 1
CV output: +1V+5V (1V/oct)
3.5 mm TS input: Filter in: +12 dBu, Sync in: 2.5 V or more
3.5 mmTS output: CV out: +1V to +5V (1 volt/oct), Gate out: OFF: 0 V;ON: +12V
Supported OS: Windows 7 or later, Mac OS X 10.6.8 or later
External power adapter: 9V DC670 mA (adapter included)
Maximum power consumption: 2 W
Dimensions: (height x width x depth) 56 x 305 x 165 mm
Weight: 0.8 kg
Accessories: Power adapter
