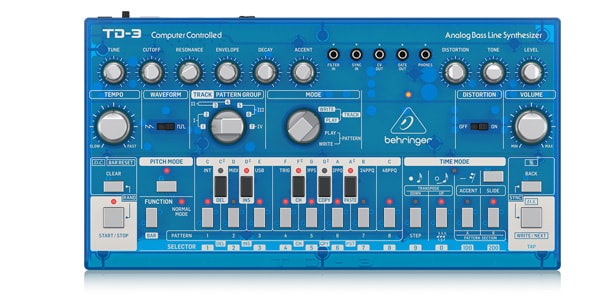

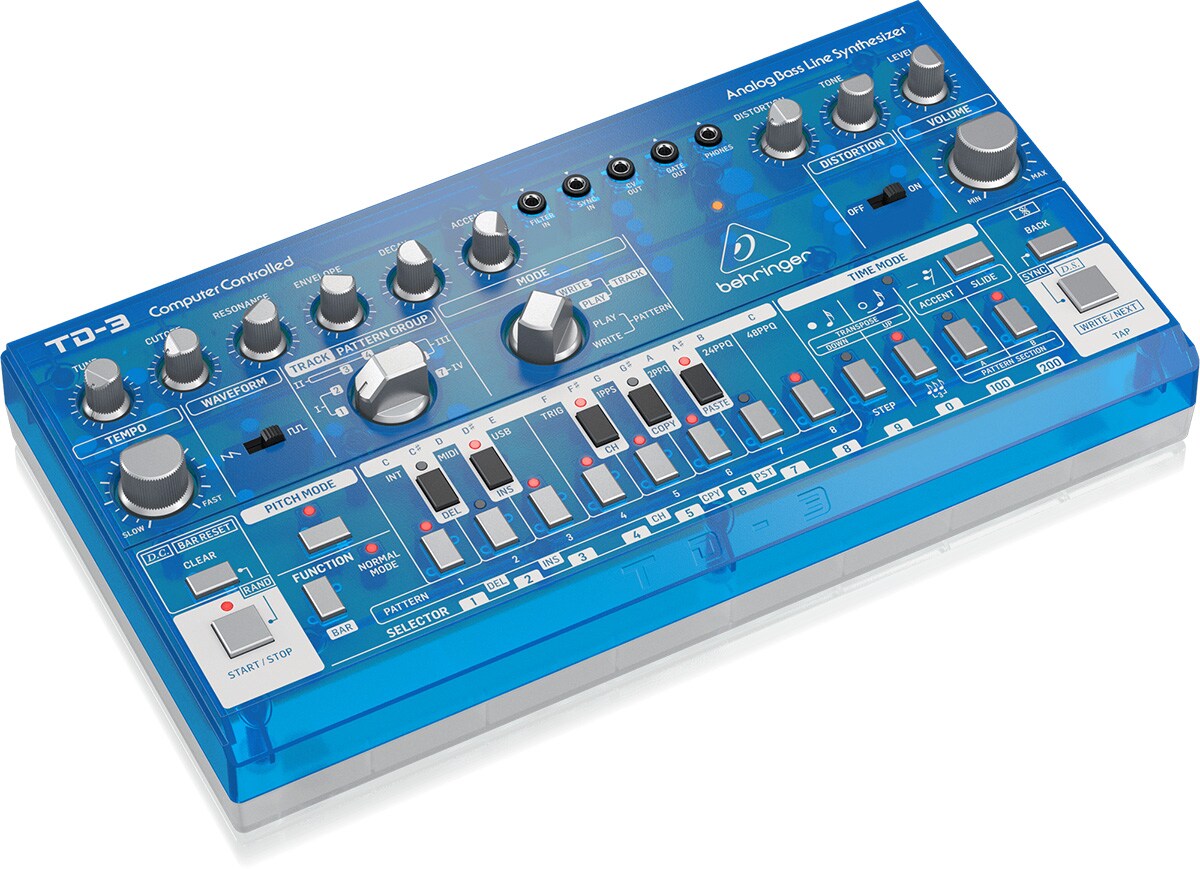

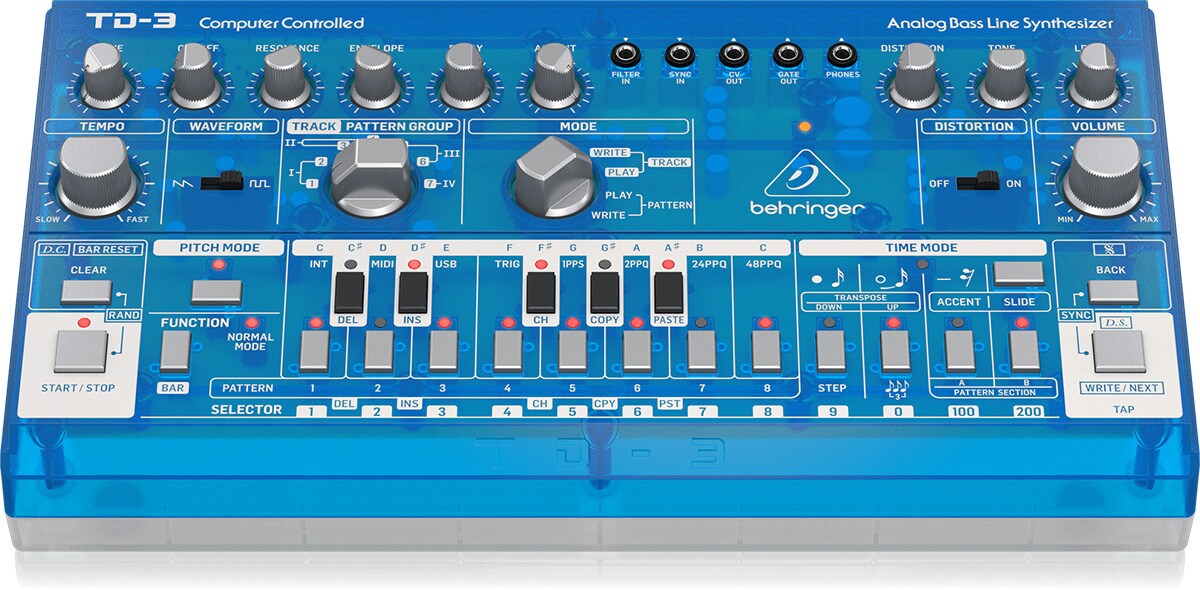

BEHRINGER / TD-3-BB

The Behringer TD-3 is an homage to the legendary synth that gave birth to house music. With a newly added distortion circuit, it allows you to create any sound imaginable. Equipped with an analog signal path, 16-step sequencer, real VCO, VCF, and VCA filters, its sound will strongly inspire track makers.

An incredible bassline synthesizer with true analog circuitry for bass and groove sounds
Faithfully reproduces the original circuitry with matched transistors
Pure analog signal path based on legendary VCO, VCF, and VCA designs
Sawtooth and square wave VCOs with transistor waveform shaping circuitry
An amazing 4-pole low-pass resonant filter with cutoff, resonance, envelope, decay, and accent controls
An easy-to-use 16-step sequencer (7 tracks, each with 250 user patterns)
An arpeggiator with wide patterns for sound effects
DS-1 modeled distortion circuit adds insane spice and edge to your sound
16-voice poly-chain for up to 16-voice polyphony by combining multiple synthesizers
11 controls and 28 switches provide direct, real-time access to all important parameters
MIDI and USB implementation with selectable MIDI channels and voice priority

Pure Analog Signal Path
Meticulous engineering has been applied to the design of the VCO, VCF, and VCA, faithful to the original, and to the pure analog circuitry with matched transistors. Its ultra-flexible sound-shaping capabilities cover everything from thick bass and lead tones to amazing effects and otherworldly sounds from your imagination.

The TD-3 allows you to create amazing sounds immediately with its default signal routing that requires no patch cables. Its highly intuitive layout makes it easy to capture the inspiring sounds of 1980s and 90s progressive rock, wave, EDM, synth-pop, and more—sounds that shaped rock and roll history!

Versatile VCF
The essence of the TD-3's sound lies in its versatile 24 dB/octave filter. You can freely experiment with the low-pass cutoff frequency and resonance settings to create the perfect sound.

Vintage Oscillator
The TD-3's built-in VCO (Voltage Controlled Oscillator) incorporates a transistor waveform shaping circuit, allowing you to select between reverse sawtooth and pulse waveforms for easy, ultimate sound creation.

Onboard Sequencer
You can program up to 16 steps of notes and rests and save them as patterns. Up to 250 patterns can be recorded, saved, and recalled, and all patterns can be saved in four groups. Sequences can be played in keyboard mode for creating and saving patterns, or in step mode for interactively playing while composing patterns.

Kick It Into Distortion
When you want to add even more power to your performance, simply flip the Distortion on/off switch to activate ""Envelope"" You can apply a ""Drive"" to boost the sound.

16-Voice Poly-Chain Support
The TD-3 is a monophonic instrument (one note at a time), but its 16-note poly-chain function allows you to combine multiple synthesizers to achieve up to 16-voice polyphony.

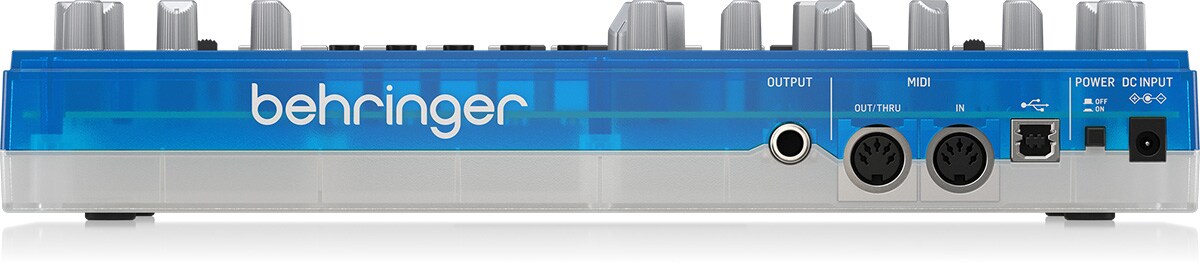

Controls and Connectivity

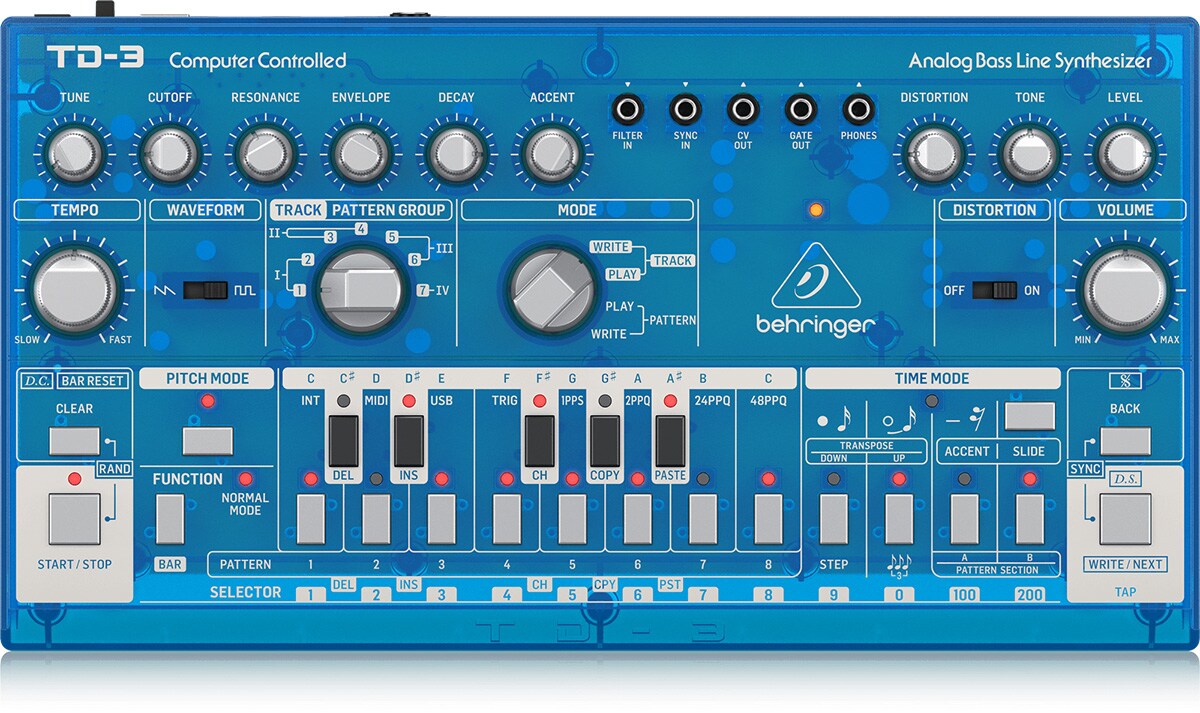

The TD-3 features 11 controls and 28 switches for real-time access to important parameters. Furthermore, you can expand the TD-3's tone-sculpting capabilities by connecting external devices using the multi-I/O patchbay!

Polyphony: Monophonic
Type: Analog
Oscillator Count: 1
VCF: 1 Low-Pass
Envelope: 1
MIDI: MIDI In / Thru (1 each, 5-pin DIN)
USB: (MIDI) USB 2.0, Type B
Headphone Output: 3.5mm Stereo Mini Jack x 1, 50 mW / 32 Ω
Headphone Output Impedance: 15 Ω
Line Output: 1/4 inch TRS x 1

CV Output: +1V to +5V (1 volt/oct)

3.5 mm TS Input: Filter in: +12 dBu, Sync in: 2.5V or higher

3.5 mm TS Output: CV out: +1V to +5V (1 volt/oct), Gate out: OFF: 0 V; ON: +12V

Supported OS: Windows 7 or later, Mac OS X 10.6.8 or later

External Power Adapter: 9V DC 670 mA (use the included adapter)

Maximum Power Consumption: 2 W

Dimensions: (Height x Width x Depth) 56 x 305 x 165 mm

Weight: 0.8 kg

Accessories: Power adapter
