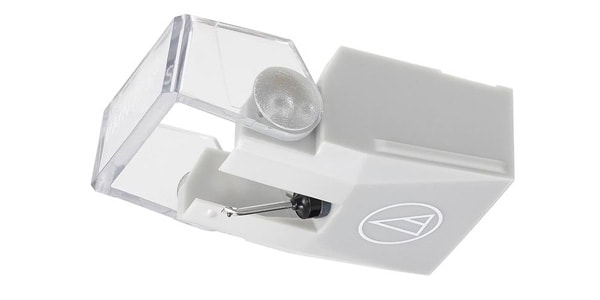

audio technica / VMN70SP VM type SP record cartridge replacement needle

Replacement needle for the VM670SP, a dedicated model that uses a spliced round needle with a radius of curvature of 3 mil that corresponds to SP records from a wide range of ages.

■ Replacement needle
■ For VM670SP
■ Joint round needle (3mil)
VM type
■ Output voltage: 3.0mV (1kHz, 5cm / sec.)
■ Needle pressure: 4.5-5.5g (5.0g standard)

Model: VM type
Reproduction frequency range: 20-20,000Hz
Output voltage: 3.0mV (1kHz, 5cm / sec.)
Needle pressure: 4.5-5.5g (5.0g standard)
Coil impedance: 1.4kΩ (1kHz)
DC resistance: 400Ω
Load resistance: 47kΩ
Load capacity: 100-200pF
Coil inductance: 230mH (1kHz)
Static compliance: 15 × 10-6cm / dyne
Dynamic compliance: 2.0 × 10-6cm / dyne (100Hz)
Stylus: Joined round needle (3mil)
Cantilever: Aluminum pipe
Vertical tracking angle: 23°
External dimensions: H17.3 x W17.0 x D28.2mm
Weight: 6.4g
