audio technica / VM610MONO VM type monaural cartridge

  • メーカーサイトManufacturer Site
A monaural LP dedicated model that reduces the surface noise of the record and produces a stable playback sound.
■ Cartridge
■ Joining round needle (0.6mil)
VM type
■ Output voltage: 3.0mV (1kHz, 5cm / sec.)
■ Needle pressure: 1.8-2.2g (2.0g standard)
■ External dimensions: H17.3 x W17.0 x D28.2mm
■ Weight: 6.4g

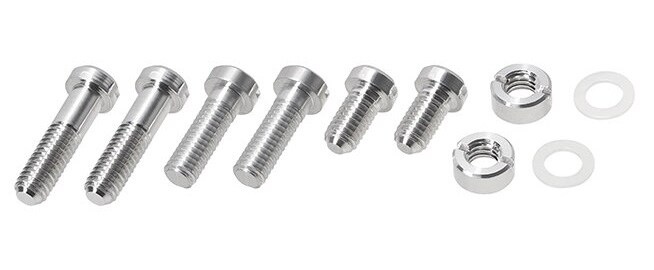

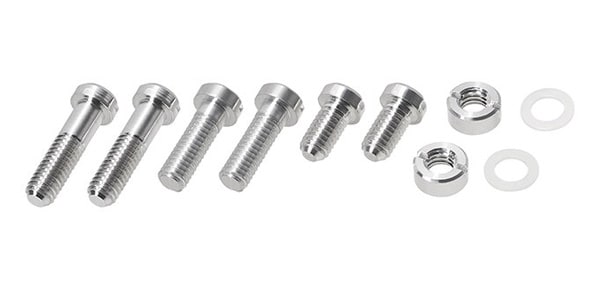

■ Accessories: Washer x 2, round nut x 2, cartridge mounting screw (M2.6) 10mm / 8mm / 5mm each x 2
■ Replacement needle: VMN10CB

Model: VM type
Reproduction frequency range: 20-20,000Hz
Output voltage: 3.0mV (1kHz, 5cm / sec.)
Needle pressure: 1.8-2.2g (2.0g standard)
Coil impedance: 1.4kΩ (1kHz)
DC resistance: 400Ω
Load resistance: 47kΩ
Load capacity: 100-200pF
Coil inductance: 230mH (1kHz)
Static compliance: 35 × 10-6cm / dyne
Dynamic compliance: 8 × 10-6cm / dyne (100Hz)
Stylus: Joined round needle (0.6mil)
Cantilever: Aluminum pipe
Vertical tracking angle: 23°

関連商品

レビューを投稿するWrite a Review

  • この商品のレビューを書くWrite a Review

audio technica (オーディオテクニカ)
VM610MONO VM type monaural cartridge

Item ID:276968

13,800 yen(excl. tax)

(15,180 yen incl. tax)
