Studiologic / SL Mixface

A control surface that enables wireless MIDI control via Bluetooth.

■MIDI control surface
■Bluetooth

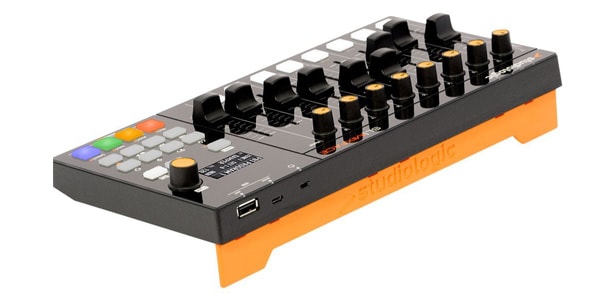

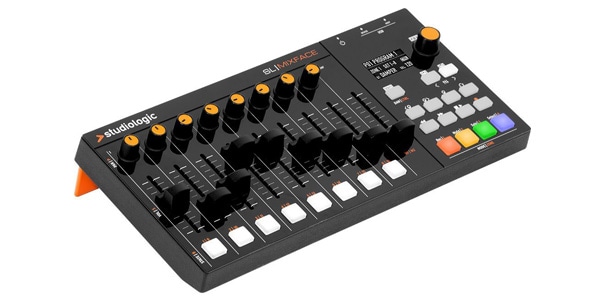

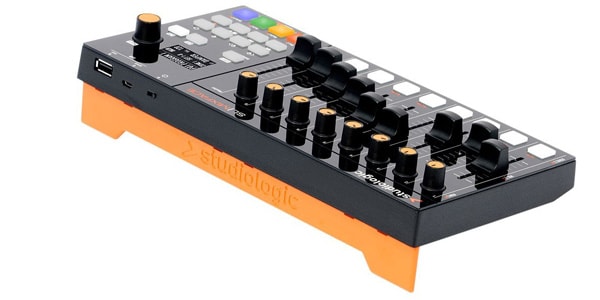

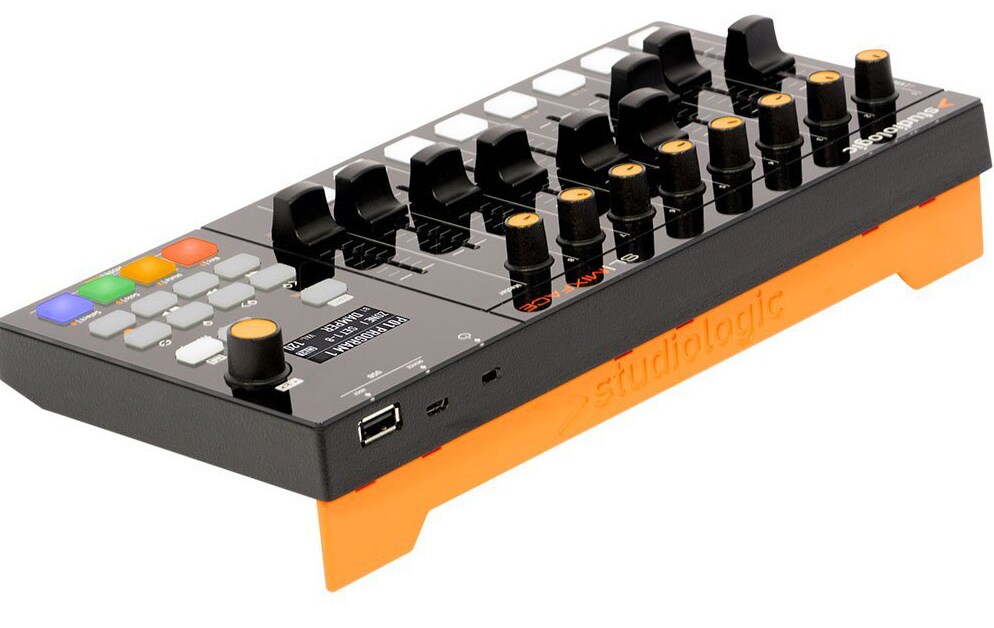

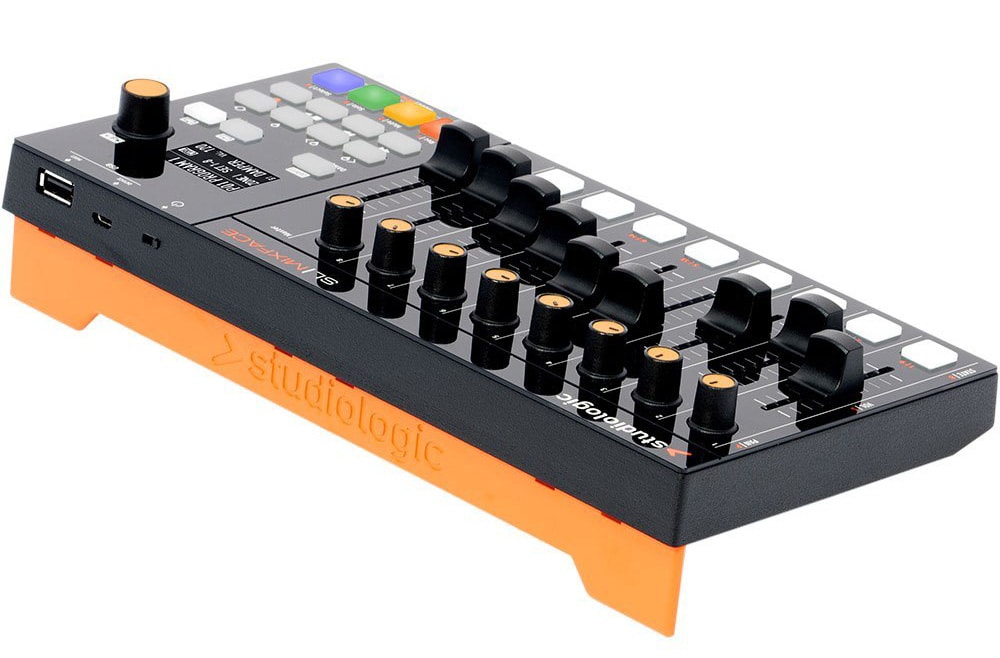

SL Mixface is a state-of-the-art MIDI control surface that combines style, simplicity, and powerful functionality.

Its lightweight and compact body features two powerful modes: ""Control Mode"" that turns any external MIDI keyboard into a full 4-layer MIDI controller, and ""DAW Mode"" that functions as a control surface for major DAWs.

It also supports Bluetooth, allowing for versatile control by using USB and Bluetooth wireless connections simultaneously.

DAW Mode and Control Mode
It features ""Control Mode"" that turns any external MIDI keyboard into a full 4-layer MIDI controller, and ""DAW Mode"" that functions as a control surface for major DAWs. You can switch between them with the push of a button.

Bluetooth Wireless Connection
USB wired connection and Bluetooth wireless connection can be used simultaneously. You can incorporate the MIDI app on your iOS device into systems such as DAWs and external MIDI keyboards to control a variety of systems at once.

SL Keyboard Series Expansion

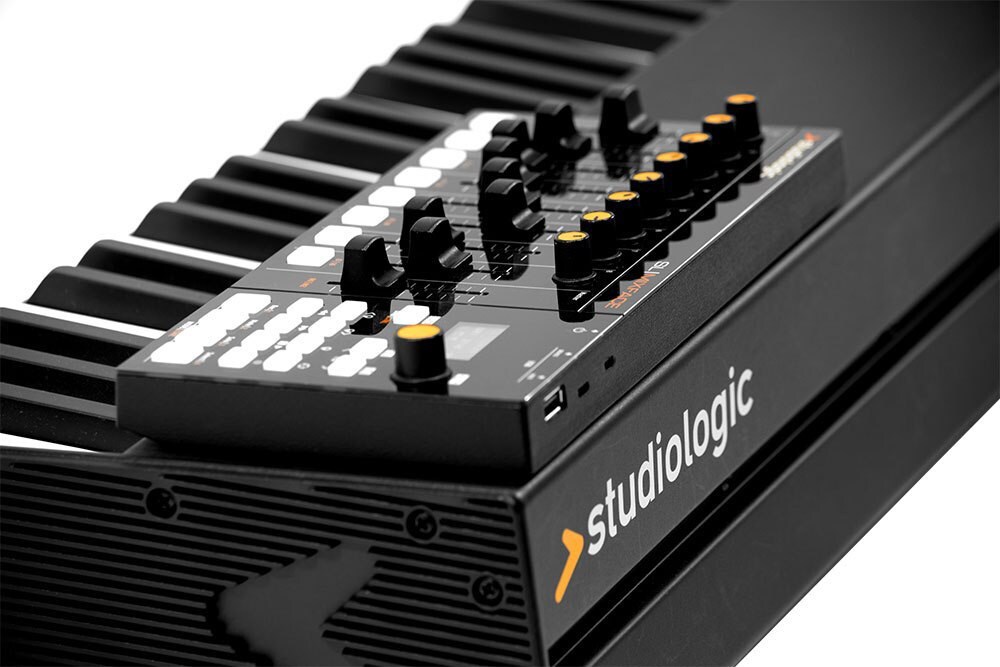

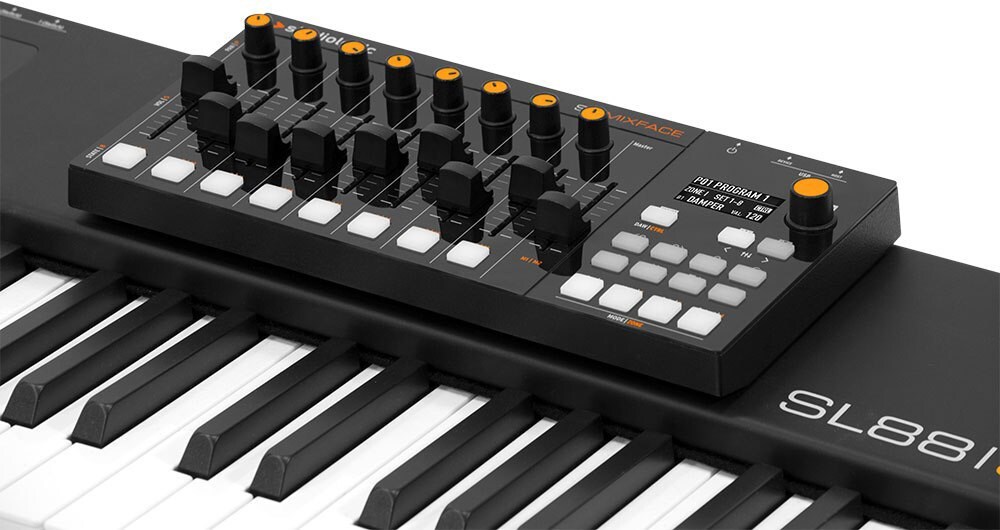

The SL Mixface is a perfect match for Studiologic's SL keyboard controller series. The back of the SL Mixface is equipped with a magnet, so it can be easily attached to the top panel of the SL Series. Simply connect the USB cable to the SL Series and you can immediately control the four layers (ZONEs) of the SL Series.

■Features
・ Compatible with major DAWs
・ Transport and marker control
・ 99 user presets for MIDI controllers
・ Functional integration with Studiologic SL keyboard series
・ Gives 4-layer controller functionality to any MIDI keyboard
・ 16 sets of controls for each layer
・ 8 knobs, 9 sliders, 8 buttons
・ USB terminals for HOST and DEVICE
・ Bluetooth 4.2 Low Energy compatible
・ USB bus powered and battery powered

■Specifications
General
・ Organic LED (OLED) display: 128 x 64
・ Navigation encoder
・ 8 knobs, 9 sliders, 8 buttons

DAW
・ Rec, Mute, Solo, Select
・ 3 controls (knobs, sliders, buttons) for each track
・ Master slider

Transport functions
・ Play/Stop, Record, Next Track, Previous Track
・ Set Marker, Next Marker, Previous Marker, Cycle

Supports DAW1
・ Ableton Live
・Apple GarageBand2
・Apple Logic Pro X
・Avid Pro Tools
・Motu Digital Performer
・Presonus Studio One
・Propellerhead Reason
・Steinberg Cubase
・Steinberg Nuendo

Controller
・12 user presets
・Perfect match with SL controller series
・4 ZONE (layer) controls

ZONE controls
・16 sets (knob + slider + button)
・2 master sliders

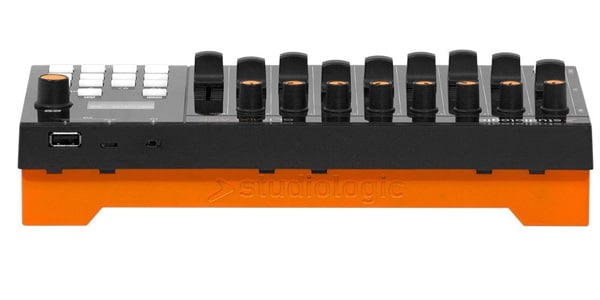

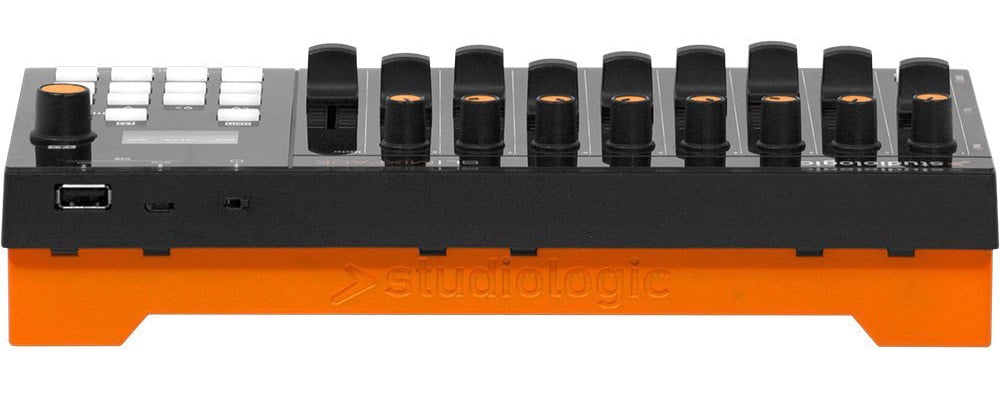

Terminals
USB DEVICE terminal (USB Micro B)
USB HOST terminal (USB Type A)

Bluetooth 4.2 Low Energy

Power supply and battery
USB bus power (when connected to USB)
3 AAA batteries3 (when connected to Bluetooth)
Battery life: up to approx. 4 hours

Size and weight
26.2 x 13 x 3.6 cm (W x D x H)
570 g (excluding batteries)

Package Contents
SL Mixface main unit
USB cable
Anti-slip desktop pad
Stickers, etc.

Some DAWs require additional components to be installed.

Only compatible with macOS version. Not compatible with iOS version of Garage Band. Marker function does not work.

Batteries are not included.

Contents: SL Mixface main unit, USB cable, anti-slip desktop pad, stickers, etc.
