ZOOM / H6/BLK

The world's first handy recorder, the ZOOM ""H6,"" which allows you to change between four interchangeable capsules: XY microphone, MS microphone, shotgun microphone, and XLR/TRS combo, is now available in a black model! It allows you to record professionally from live recording to film and video audio recording and outdoor recording. It is a high-quality recorder with excellent usability that can instantly respond to any scene.

■Handy recorder
■Color: Black

[Product specifications]
■Supports simultaneous recording of 6 tracks
■USB audio interface function
■Recording media: SD card (16MB-2GB), SDHC standard compatible card (4GB-32GB), SDXC standard compatible card (64B-128GB)

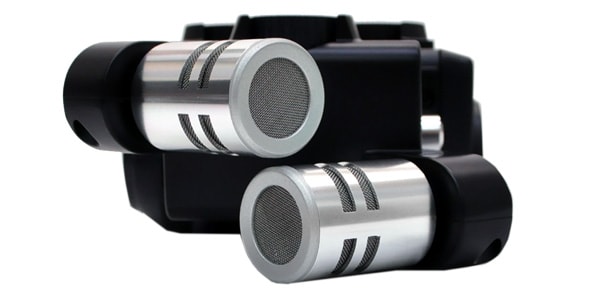

■L/R input: XY microphone (XYH-6), unidirectional
■MIC/LINE IN: 1/8"" stereo mini jack
■Plug-in power: 2.5V compatible
■MS microphone (MSH-6), unidirectional & bidirectional
■INPUT1-4 connectors: XLR/TRS combo jack
(XLR: 2 hot / TRS: TIP hot)
■Maximum allowable input level: +22dBu (PAD ON)
■Phantom power: +12/+24/+48V (INPUT1-4 can be turned ON/OFF individually)
■Output: LINE OUT: 1/8"" stereo mini jack

■PHONE OUT: 1/8"" stereo mini jack

■Speaker: 400mW 8Ω mono speaker

■Recording format:
When WAV is selected

Sampling frequency: 44.1/48/96kHz

Quantization bit rate: 16/24bit mono/stereo (BWF compliant)

Maximum number of simultaneous recording tracks: 8 (6 tracks + backup recording)

■Recording time (2GB card): 3 hours 8 minutes (WAV 44.1kHz/16bit), 34 hours 43 minutes (MP3 128kbps)

■Battery life: (alkaline battery) XY microphone used, 44.1kHz/16bit (stereo x1): Approximately 21 hours

XY microphone used, inputs 1-4 used, 96kHz/24bit (stereo x3): Approximately 9 hours 45 minutes

*The above values are only a guide.
*Battery life is based on our testing method. It varies greatly depending on the conditions of use.

■Power supply: 4 AA batteries, AC adapter: DC5V 1A AD-17 (optional), USB bus power 　　
■External dimensions: Main unit: 77.8mm (W) x 152.8mm (D) x 47.8mm (H)
XYH-6: 78.9mm (W) x 60.2mm (D) x 45.2mm (H)
MSH-6: 58.0mm (W) x 67.6mm (D) x 42.1mm (H) 　　
■Weight: Main unit: 280g (excluding batteries), XYH-6: 130g, MSH-6: 85g 　　
■Accessories: XY microphone capsule (XYH-6), quick guide

■Optional accessories: Shotgun microphone capsule (SGH-6), XLR/TRS combo capsule (EXH-6), hot shoe mount (HS-1)

*MS microphone is not included as this is a 2020 model.


Remote control (RCH-6), hairy windscreen (WSH-6H), AC adapter (AD-17)
