KORG / Pitchblack Advance PB-AD スパークル・ブルー

Sparkle blue color of KORG's popular pedal tuner Pitchblack Advance. In addition to a display with 4 types of display that boasts outstanding visibility, ultra-high precision tuning that can drive up to ±0.1 cents, true bypass specification, etc. High specifications as a tuner loved all over the world regardless of professional/amateur Keeps the same as it is, and brightly colors the pedal board.

■ Pedal tuner for guitar/bass
■ Pitch black Advance series
■ Sparkle blue
■ Features
・4 types of display methods that boast group visibility
・Ultra-precision tuning that can drive up to ±0.1 cents
・True bypass specifications
・DC output that can be branched to other effectors (only when using an adapter)
■ Specifications
・Temperature: 12 averages
・Temperature measurement range: E0 (20.60Hz) to C8 (4186Hz)
・Reference pitch range: A4=436 to 445Hz (1Hz step)
・Measurement accuracy: ±0.1 cent
・Input impedance 1 MΩ (when tuner is on)
・Display mode: regular, strobe, half strobe, mirror
・Connection terminals: INPUT (monaural standard jack), BYPASS (monaural standard jack), DC 9V IN, DC 9V OUT
■ Power supply: 9V type dry battery (6F22/6LR61) or DC9V center minus adapter KA181 (sold separately)
■ Current consumption: Maximum 20mA
■ Dimensions: 68(W)x111(D)x47(H)mm (including rubber feet)
■ Weight: 257g (including batteries)

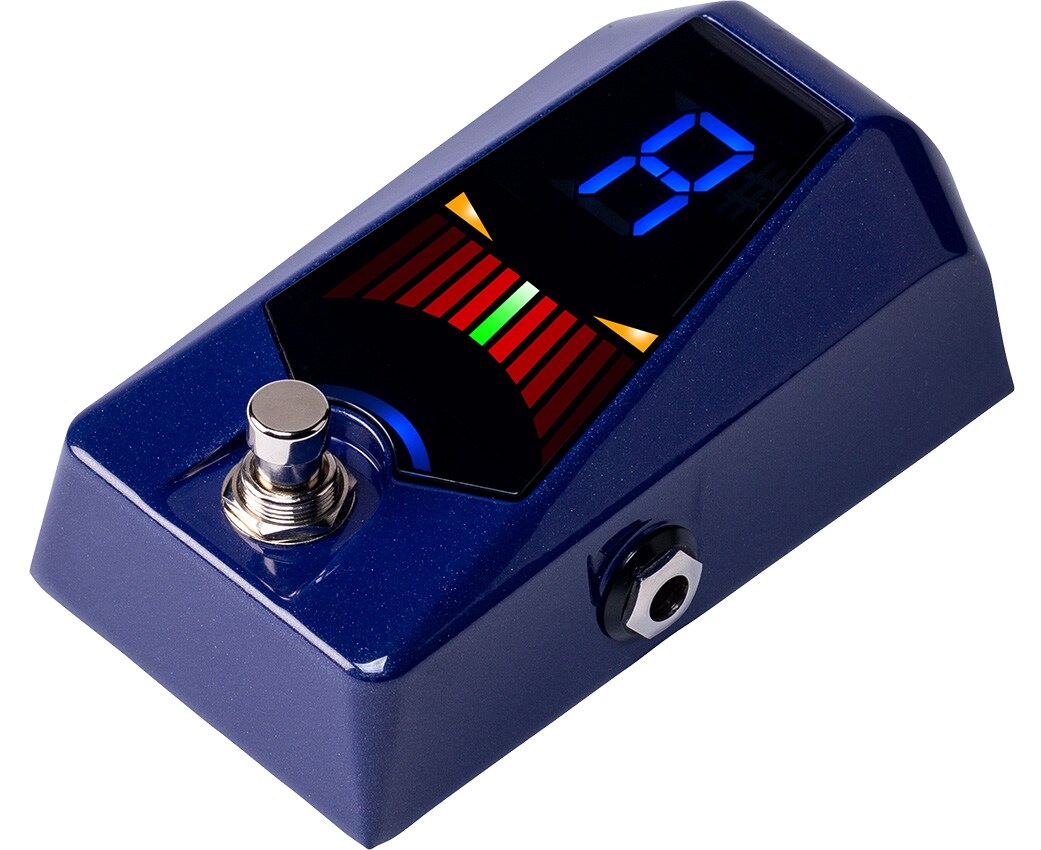

*The photo is for illustrative purposes.
*Batteries are also used as a power supply for holding settings, and hold calibration and display mode settings. When the battery is removed from the unit or when the battery reaches the end of its life, the calibration will be reset to 440Hz and the display mode settings will be reset to regular.
The TUNER ON/OFF LED flashes when the battery life is approaching. Replace it with a new battery as soon as possible.
*Calibration settings are retained even when the power is off. However, if the battery is removed or the AC adapter is removed, the factory settings (440Hz) will be restored. Even if the battery is connected, the factory default settings will be restored if the AC adapter plug that is not supplied with power is inserted.
