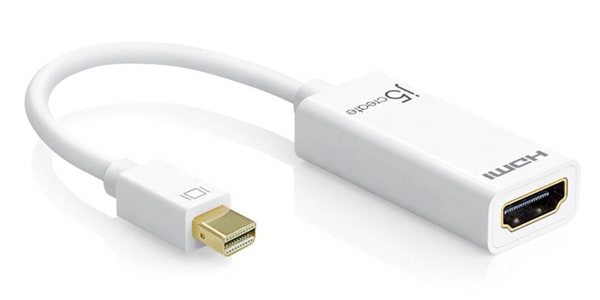

j5 create / JDA159

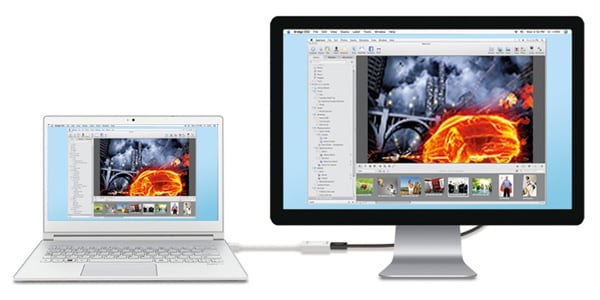

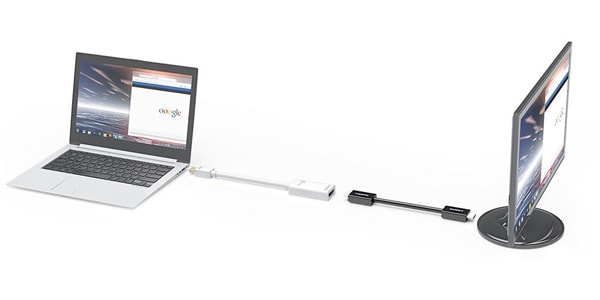

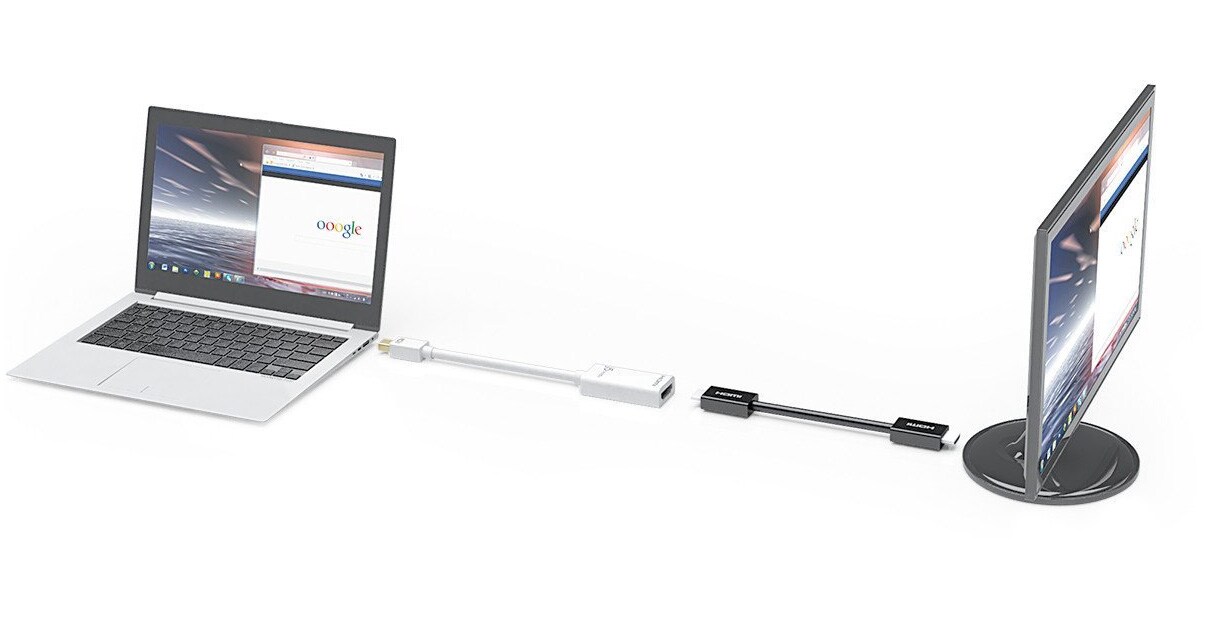

This is a display adapter that changes the Mini DisplayPort terminal to an HDMI terminal. It has a compact design and supports a maximum resolution of 4K. It allows you to smoothly connect your computer to a monitor or projector.

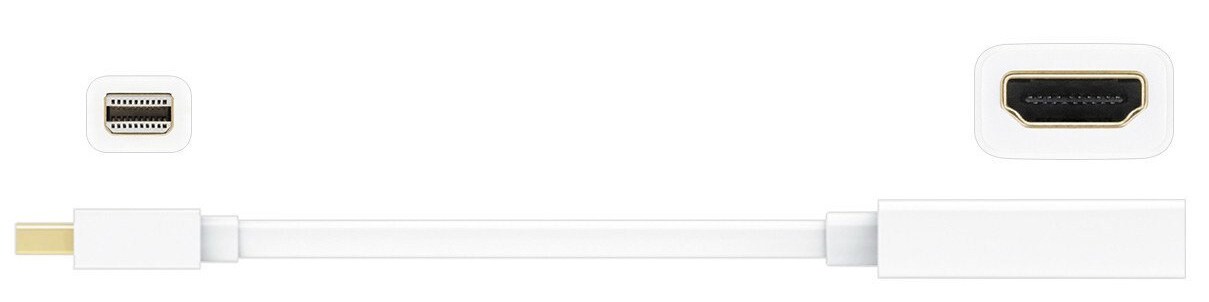

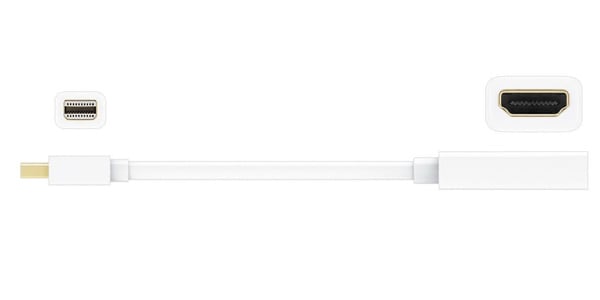

■Mini DisplayPort to 4K HDMI Adapter

■Product Features

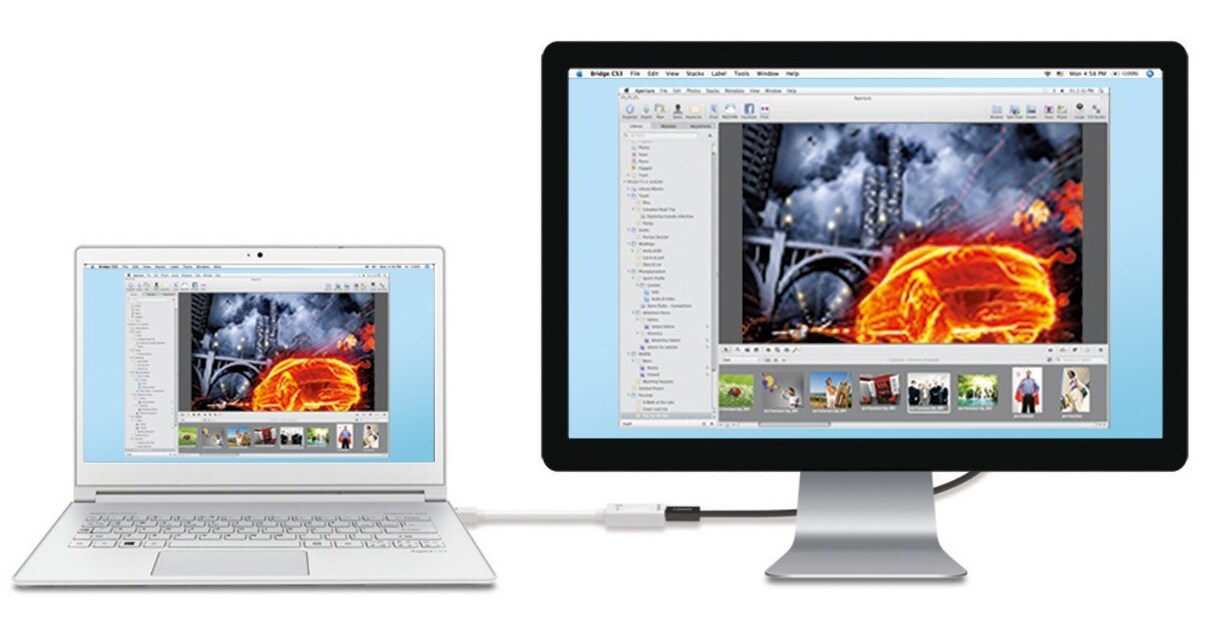

Connect your PC's Mini DisplayPort to a 4K-compatible monitor to display ultra-high definition images.
Maximum resolution 4K (4096x2160) @ 30Hz.
No driver installation/external power supply required, PnP support.
Compact, stylish design
Ultra-compact design, lightest at just 19g.

■Product Specifications
Interface: Mini Display Port
Power Supply: Bus Power
Power Consumption: 210mA
Housing Material: Plastic

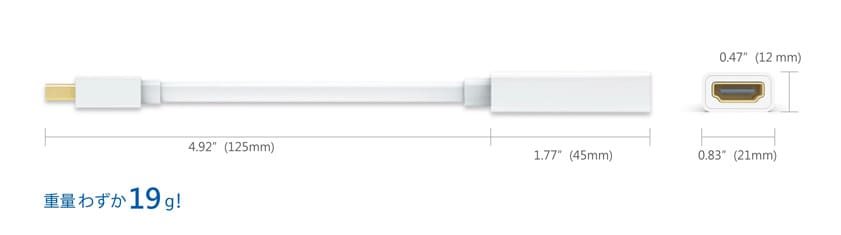

Dimensions: 21(W)x 45(H)x12(D) mm
Cable: 125 mm
Weight: 19 g

■Required Environment
Microsoft Windows 10 / 8.1 / 8 / 7 / XP
Mac OSX 10.6 or later
Complies with DisplayPort Dual Mode version 1.2 or Thunderbolt 2
Complies with HDMI 1.4 specifications
Notes: The PPC main unit must support 4K output (Thuderbolt 2 or DisplayPort v1.2) and the monitor must support 4K image quality
A graphics card that supports DP++ ports (Dual Mode DisplayPort) is required
(DVI or HDMI pass-through function must be supported)
The maximum output resolution for DisplayPort 1.1a and Thunderbolt 1 is 2560 x 1200.

■Mac with Thunderbolt 2 port
MacBook Pro (Retina model, Late 2013 or later)
Mac OSX 10.6 or later
iMac (Retina 5K, 27-inch, Late 2014)
Mac mini (Late 2014)Available Mini DisplayPort 1.2 or Thunderbolt 2

Package contents
JDA159 Mini DisplayPort to 4K HDMI adapter
Quick installation guide (warranty card)
