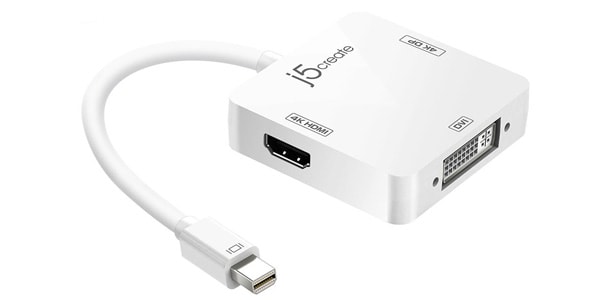

j5 create / JDA173

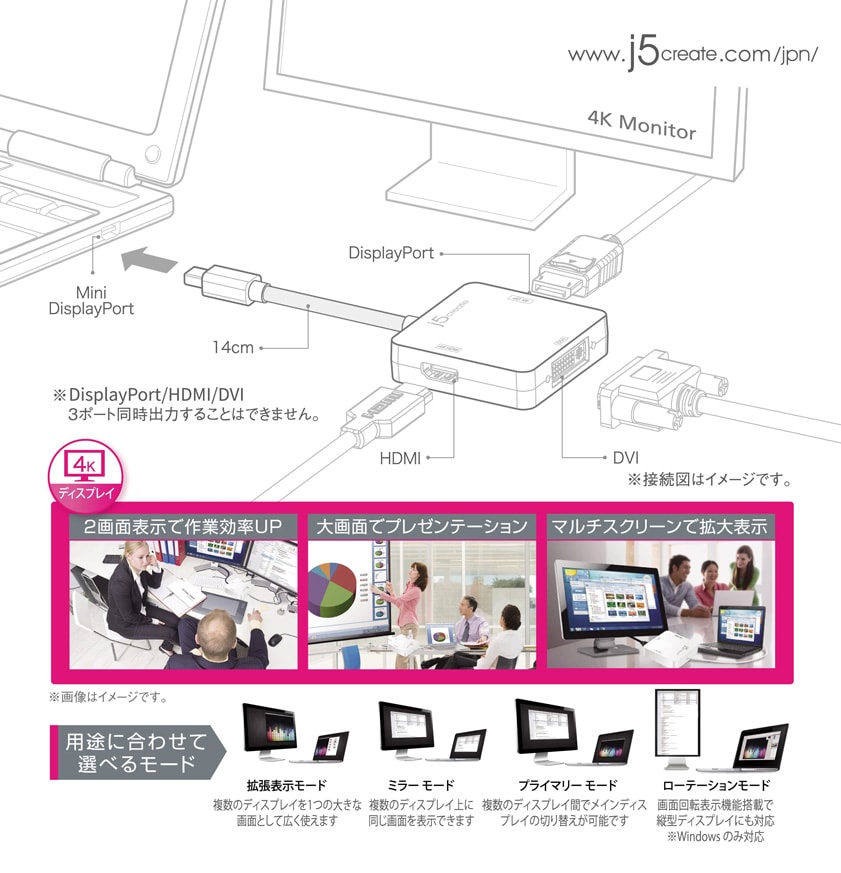

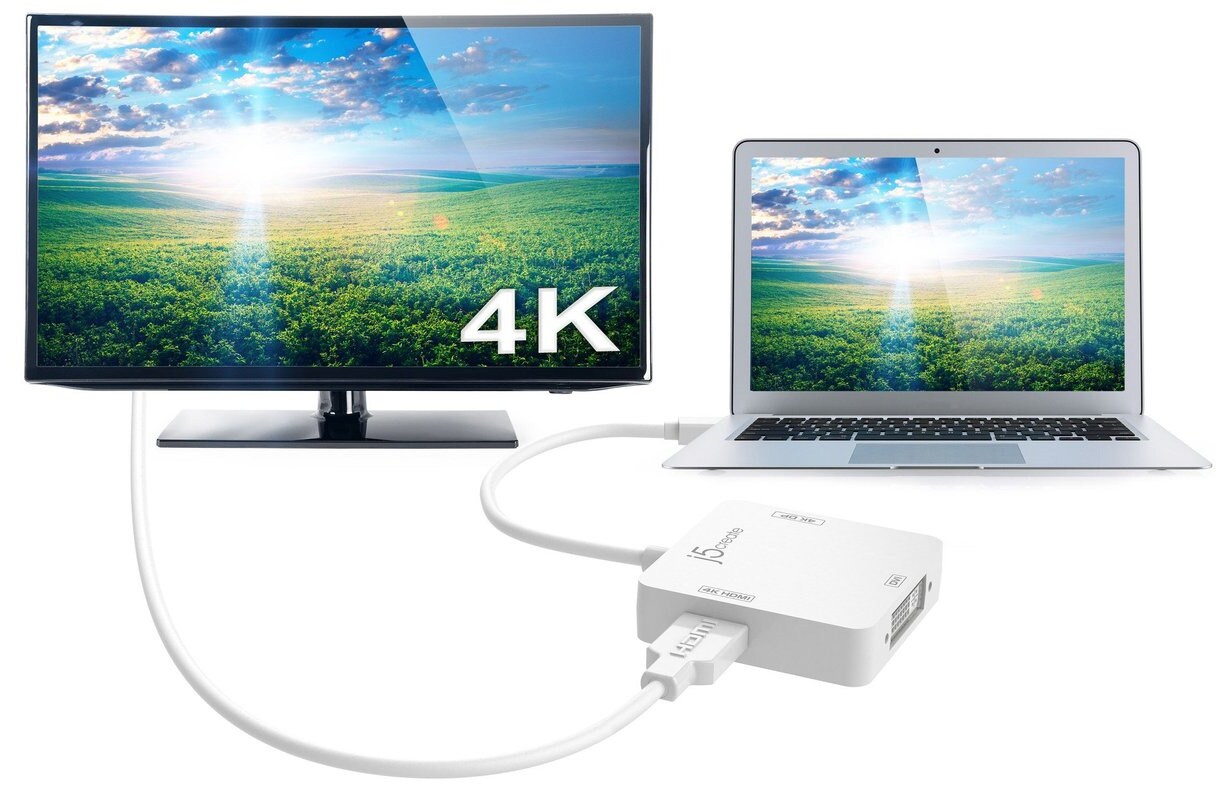

This is a display adapter equipped with a 3-in-1 terminal that can change the Mini DisplayPort terminal to a 4K DisplayPort, 4KHDMI, and DVI terminal. It allows you to smoothly connect from your computer to a monitor or projector.

■Mini DisplayPort to 4k DisplayPort/4k HDMI/DVI adapter

■Product features
Equipped with 3-in-1 display interface.
This single unit can instantly add DisplayPort HDMI and DVI interfaces to a PC equipped with Mini DisplayPort.
Maximum resolution: DisplayPort 4K 60Hz, HDMI 4K 30Hz, DVI 1920×1200 60Hz.

■Product Specifications

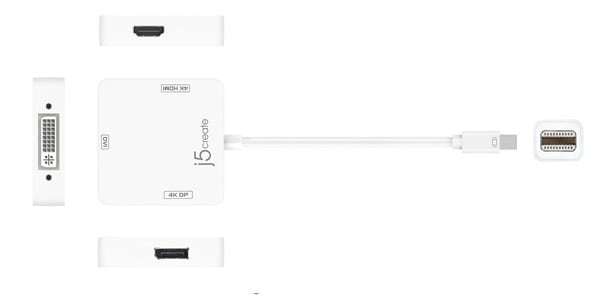

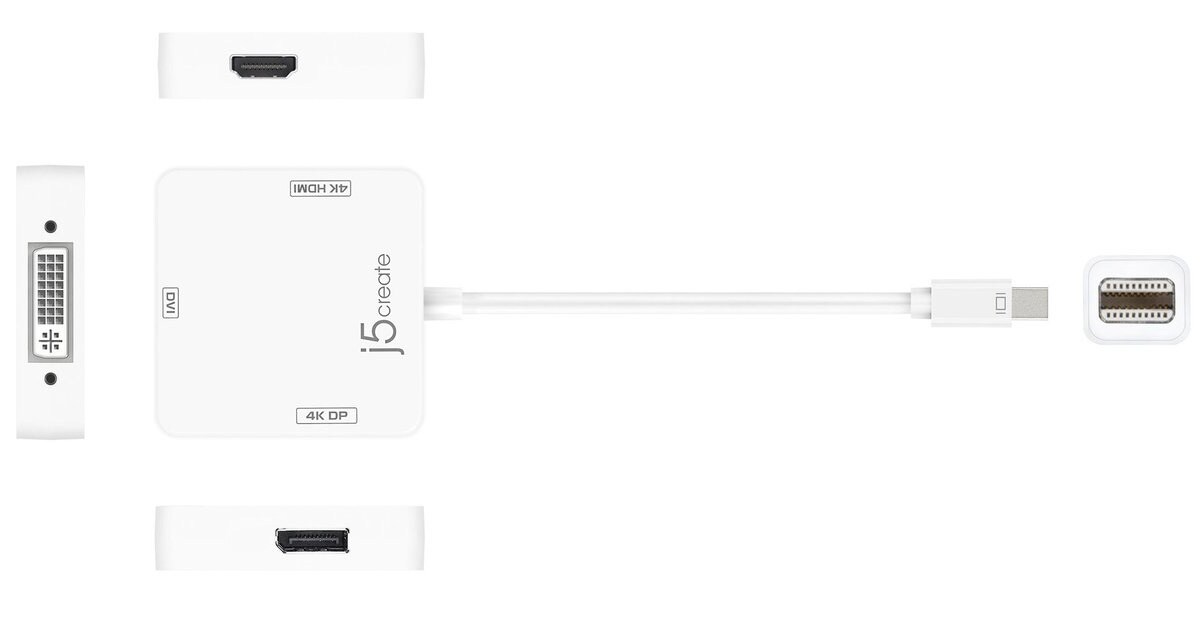

Host interface: Mini DisplayPort (male)
Video interface:
DisplayPort: (20 pin) (female)
HDMI: (19 pin) (female)
DVI-D: (25 pin) (female)
Display
DP: Up to 4K 60Hz
HDMI: 4K 30Hz
DVI: 1080P 60Hz

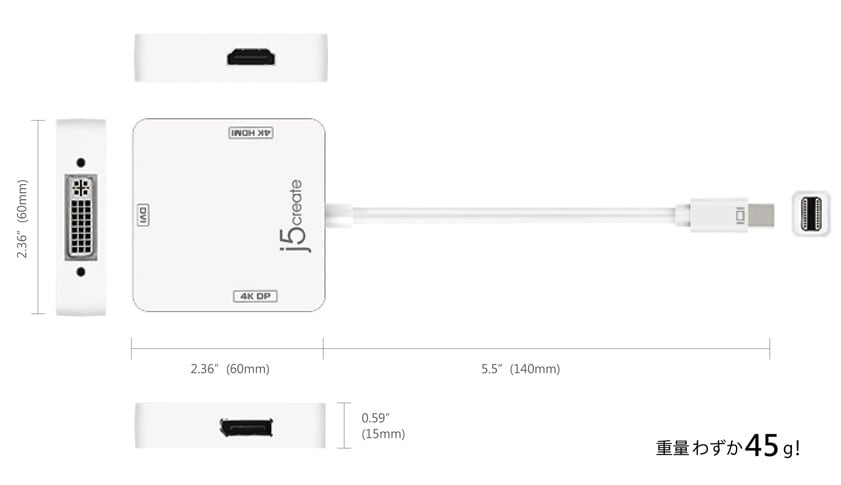

External dimensions: 60 (W) x 60 (H) x 15 (D) mm Cable 14cm
Weight: Approximately 45g
Required environment
To display 4K, the PC and monitor must support 4K image quality.
To display the maximum resolution of 4K/2K 60Hz/30Hz, the graphics card must support DisplayPortv1.2.
Package contents
JDA173 Mini DisplayPort to 4k DisplayPort/4k HDMI/DVI Adapter
Quick installation guide (warranty card)
