RME / M-32 AD Pro MADI/AVB Converter

32-Channel High-End MADI/AVB Converter

■32-channel high-end MADI/AVB converter

The new M-32 Pro combines the open standard network transmission standard ""AVB"" with the de facto standard for point-to-point transmission, ""MADI,"" to create an advanced, versatile, multi-channel format converter that combines flexibility and robustness.

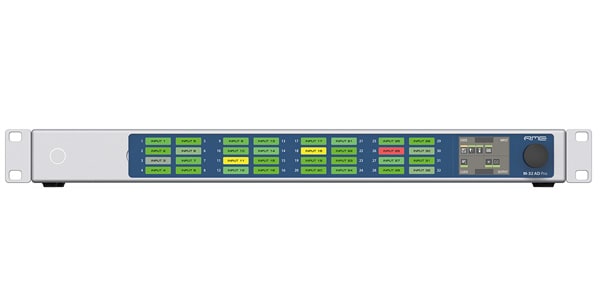

The compact 1U rack is equipped with the highest level of components, including high-end converters, to provide outstanding audio quality on all channels. Reflecting various feedback from the field, the front panel allows you to easily check the status of the equipment and set all the functions using the encoder and display. 32 custom labels with green/yellow/red backlit LEDs display the signal level in real time, allowing you to instantly check the status of the unit even from a distance.

The M-32 Pro series features a built-in web server and an interface that allows you to easily control the equipment remotely, making it possible to transmit high-quality digital audio via MADI/AVB that is both reliable and high quality.

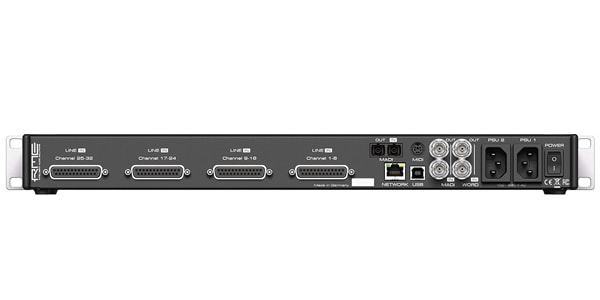

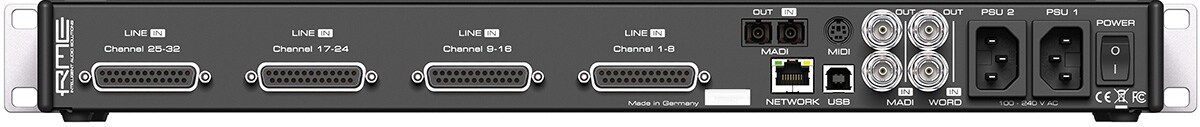

■Technical Specifications
M-32 AD Pro
Line Inputs 1-32

D-sub 25 pin (Tascam pinout)
Resolution: 24 bit
Input level switching per channel: +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Input AC coupled, fully symmetrical signal path (servo balanced)
Input impedance: 10kΩ (balanced), 5kΩ (unbalanced)
Signal to noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
Signal to noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
Signal to noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz ~ 20.5 kHz
THD @ -1 dBFS:< -111 dB, < 0.00029%
THD+N @ -1 dBFS:< -108 dB, < 0.00039 %
Channel separation:> 110 dB
Word Clock Input
BNC, terminated (75 kΩ)
SteadyClockTM ensures low jitter sync, even in varispeed operation
Insensitive to DC offsets on the network
Signal Adaptation Circuit: automatic signal centering and signal regeneration with hysteresis
Overvoltage protection
Level range: 1.0 Vpp - 5.0 Vpp
Lock range: 27 kHz - 200 kHz
Jitter on sync input signal: < 1 ns
Jitter suppression: > 30 dB (2.4 kHz)
AVB Input
4 streams (up to 8, 12, 16 channels each)
Formats: AM-824, AAF, CRF
ABV Output
4 streams (up to 8, 12, 16 channels each)
Formats: AM-824, AAF, CRF
MADI Input
BNC coaxial, 75 Ω, based on AES10-1991
High sensitivity input (< 0.2 Vpp)
Optical: FDDI duplex SC connector
Supports 62.5/125 and 50/125
Supports 56 and 64 channel modes, 96k frame
Single wire: up to 64 channels 24 bit 48 kHz
Double wire/96k frame: up to 32 channels 24 bit 96 kHz
Quad wire: up to 16 channels 24 bit 192 kHz
Jitter when syncing to input signal: < 1 ns
Jitter suppression: > 30 dB (2.4 kHz)
MADI Output
Coaxial: BNC, 75 Ω, based on AES10-1991
Output level: 900 mVpp
Cable length (coaxial): up to 100 m
Optical: via FDDI duplex SC connector
Supports 62.5/125 and 50/125
Cable length (optical): up to 2000 m
Supports 56-channel and 64-channel modes, 96k frame
Single wire: up to 64 channels at 24bit / 48 kHz
Double wire / 96k frame: up to 32 channels at 24bit / 96 kHz
Quad wire: up to 16 channels at 24bit / 192 kHz
Word Clock Output
BNC
Maximum output level: 3.5 Vpp
Output level @ 75 Ω: 1.8 Vpp
Impedance: 10 Ω
Frequency range: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/- 1.5%
Digital
Clock settings: internal clock, AVB input, MADI input, word clock input
Low jitter design: < 1 ns PLL mode, all inputs
External clock jitter suppression: > 30 dB (2.4 kHz)
Clock jitter during AD conversion: Near zero
PLL ensures zero dropout even with jitter of 100ns or more
Supported sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
MIDI
Receives and passes through legacy SysEx remote control commands
Mini DIN-6 connector
Opto-coupled, ground-free input
MIDI over MADI
Transmits ""invisible"" using user bits on 56 channels (at 48k frames)
General
Dimensions 440 x 44 x 243 mm
Weight 2.8 kg
Package size 560 x 315 x 115 mm
Compliance CE, FCC, WEEE, RoHS
Power supply 60W AC 90~264V (2 systems)
Power consumption 25W in normal mode, 0.5W in standby mode
