NOBUNAGA LABS / NLAFWR

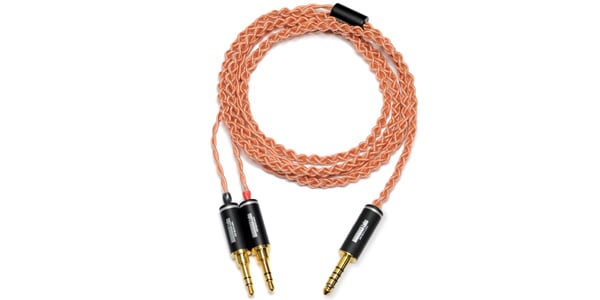

NOBUNAGA LABS Fukiwari NLA-FWR is a 4.4mm 5-pole balanced headphone cable that uses high-purity oxygen-free copper wire to reduce signal transmission loss and achieve clear positioning and spatial expression.

■ Adopts proprietary Symmetric Braid Matrix technology
・ The symmetric braid matrix, which makes the flow of electrical signals as smooth as possible by symmetrically twisting the positive and negative sides of the conductor, suppresses the increase in electrical resistance between conductors and enables the transmission of a wide range of sound from low to high frequencies.

■ High-purity oxygen-free copper wire that achieves low resistance

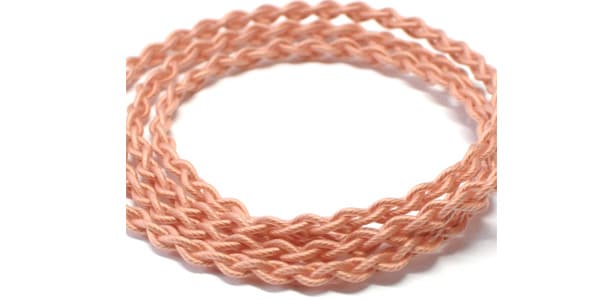

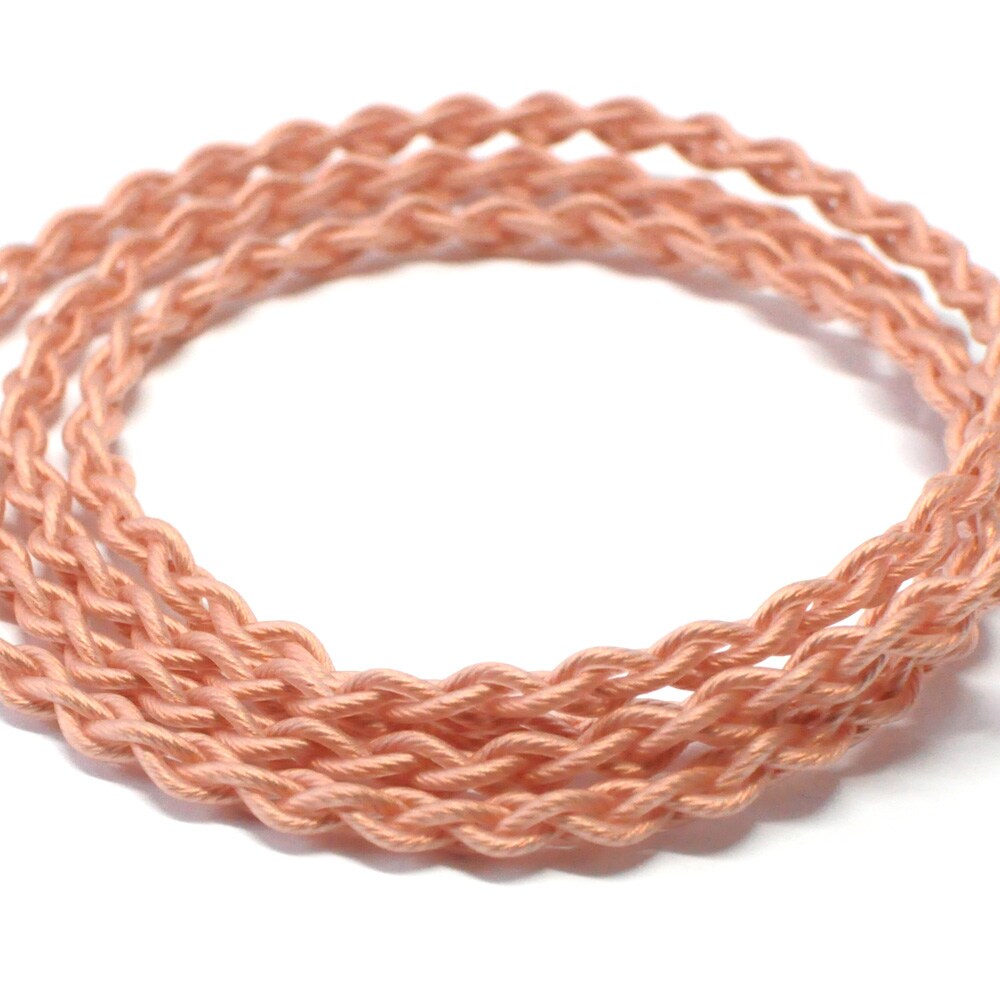

・ By using 133 ultra-fine high-purity oxygen-free copper strands of 0.06 mm per core, the conductor resistance value is suppressed, electrical conductivity is improved, and a natural and dynamic mid-low range is achieved. In addition, the flexibility and durability of the conductor itself are dramatically improved by making the conductor perfectly round. It plays a role in stable signal transmission even when exposed to bending or sudden temperature changes.

■ Balanced connection that maximizes the performance of connected devices
・ The balanced connection uses independent amplifiers for the left and right sides of the player, which suppresses crosstalk to the maximum extent, enabling more accurate positioning and spatial expression. The 4-core braided configuration is designed to maximize the effect of the balanced connection.

■ Transmission loss is eliminated to the maximum extent
・The solder joint process (joint processing) at the branching part, which causes electrical resistance, is not performed, and the braiding pitch of the cable is evened out by hand braiding each one, achieving an ideal design that does not change the transmission characteristics. The original characteristics of the cable are fully demonstrated.

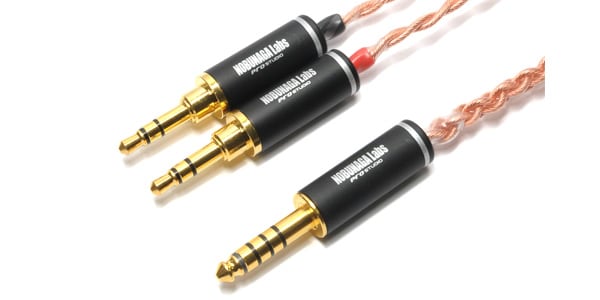

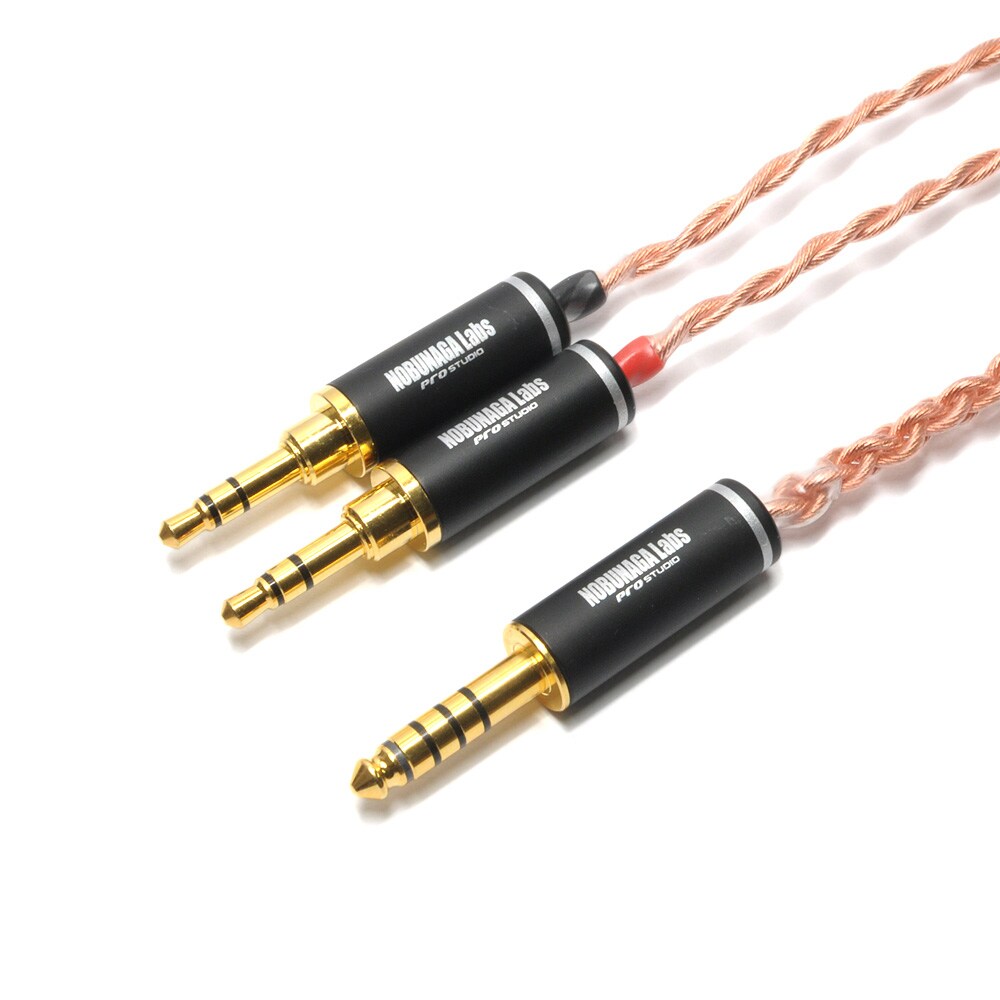

■ High-quality plug made in Japan

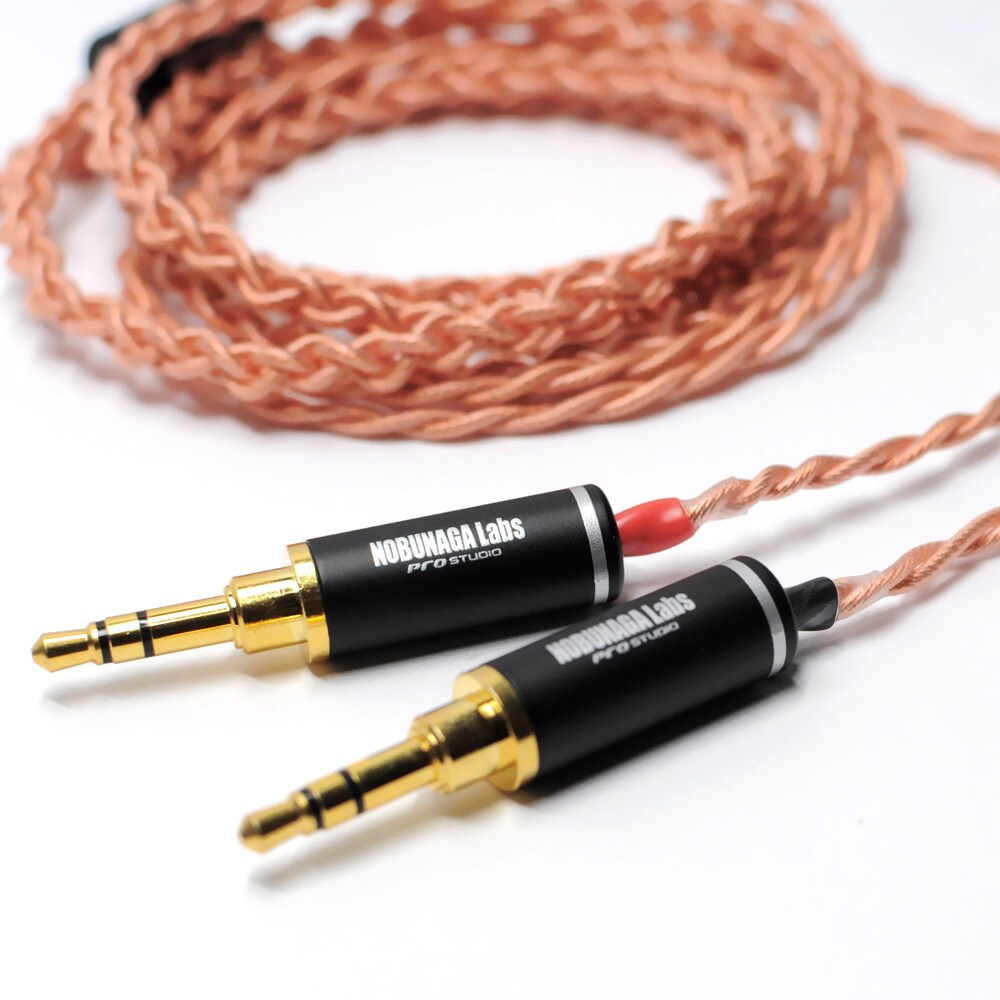

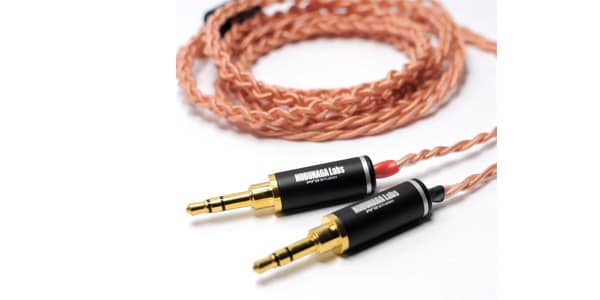

・The stereo mini plugs on both ends of the headphone side use the company's NLP-PRO-TP3.5. It achieves a stable connection environment and efficient conductivity. In addition, by applying a special treatment after the flash plating process, problems such as peeling of the plating and oxidation erosion are prevented for a long time.
・The 4.4mm 5-pole plug has a gold plating treatment on all contact parts, providing excellent electrical conductivity. By applying a special treatment to the flash plating process, problems such as peeling of the plating and oxidation erosion are prevented, achieving high-level quality for a long time. The plug shell adopts NOBUNAGA Labs' original matte black design, emphasizing a simple yet luxurious feel.

■Cable: High-purity oxygen-free copper 4-core
■Headphone plug: 3.5mm 3-pole straight plug (NLP-PRO-TP3.5) x 2
■Device plug: 4.4mm 5-pole straight plug (NLP-PRO-TP4.4/5)
■Impedance: 0.09Ω or less
■Cable length: 120cm
■Warranty: 3 months

[Headphone side]
■DENON: AH-D9200, AH-D7200, AH-D7100, AH-D5200, AH-D600
■SONY: MDR-Z1R, MDR-Z7, MDR-Z7M2
■JVC: HA-SW01, HA-SW02
■Pioneer: SE-MONITOR5
■FOCAL: Clear Professional
■VECLOS: HPT-700, HPS-500
*For other confirmed compatibility, please see the WiseTech website for updates

[4.4mm 5-pole plug side]
■SONY: NW-WM1Z, NW-WM1A, NW-ZX507, NW-ZX300(G)
■Cayin: N8, N6ii DAP/A01
■COWON: PLENUE L
■FiiO: M11
■HiBy: R6ProAL, R6Pro, R5
■iBasso Audio: DX160
■Other 4.4mm 5-pole compatible players
