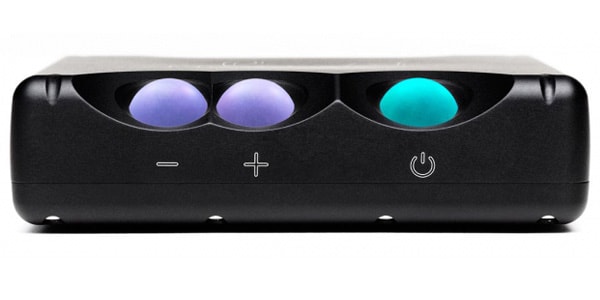

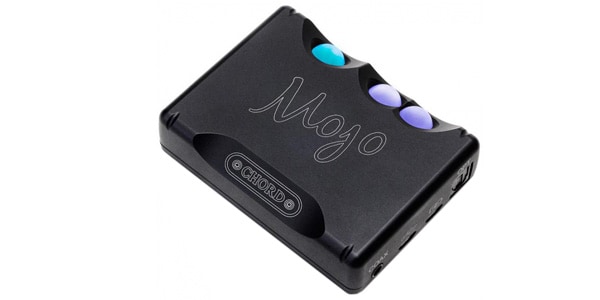

Chord Electronics / MOJOBLK

CHORD Mojo is a portable headphone amplifier with a USB DAC that maximizes the potential of your headphones with any digital audio format, from MP3 to DSD.

＜Features＞
■Native playback of PCM 768kHz/32bit, DSD256 (11.2MHz/1bit)
■Equipped with a unique algorithm, D/A conversion by Xilinx's new generation Artix7 FPGA
■Driving power that can drive headphones up to 800Ω
■Acoustically superior, machined aircraft-grade aluminum body
■W82 x H60 x D22mm / Weight 180g, compact palm-sized design
■High-performance battery achieves up to approximately 8 hours of playback
■Line output function

＜Specifications＞
■Color: Black
■Body: Aircraft-grade aluminum
■Audio output level: 35mW @ 600Ω, 720mW @ 8Ω
■Output impedance: 0.075Ω
■Dynamic range: 125dB
■THD+N: 0.00017%@3V
■Input
・Optical TOSlink x 1 (Maximum 192kHz / 24bit)
・Coaxial (3.5mm) x 1 (Maximum 768kHz / 32bit)
・MicroUSB: x 1 (Maximum 768kHz / 32bit)
・MicroUSB: (For charging) x 1
■Output: Headphone jack (3.5mm) x 2
■Line-out mode output: 3V
■Volume adjustment: 96 steps (1dB increments)
■Power battery: Built-in lithium polymer battery (1,650mAh 7.4V)
■Charging time: Approximately 5 hours (using 5V/1A USB-AC)
■Operating time: Approximately 8 hours
■Size (W x H x D): Approximately 82mm x 60mm x 22mm
■Weight: Approximately 180g
■Included items: MicroUSB cable (for charging), Quick Guide / Warranty card
