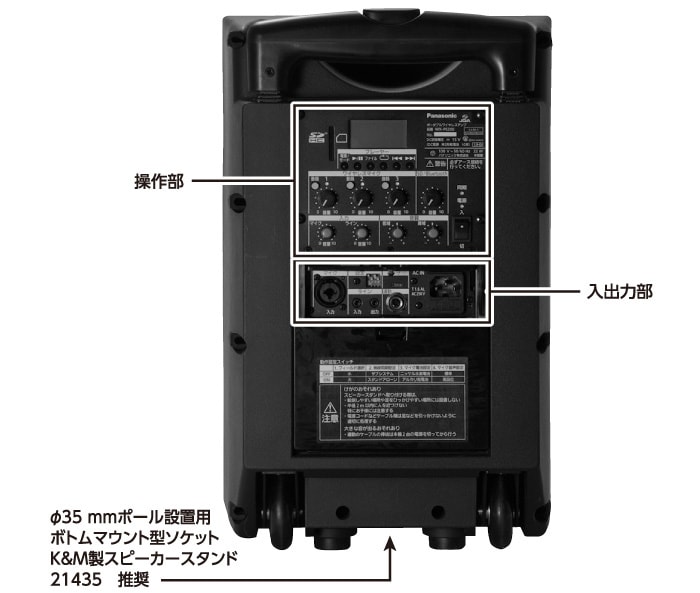

PANASONIC / WX-PS200 Portable wireless amplifier

1.9 GHz帯デジタルワイヤレスマイクを3本まで受信可能なポータブルPA。SD/Bluetooth音楽再生に対応、60 Wハイパワー、2台連動ミキシング機能を搭載しています。

■ Portable PA system
■ 60W
■ Compatible with 1.9 GHz band digital wireless microphone

■ Amplifier section:
・ Maximum output: 60 W (100 VAC)
・ Rated output: 60 W (100 V AC), 20 W (15 V DC)
・ Total harmonic distortion rate: 5% or less (at 1 kHz rating)
・ Frequency characteristics: 65 Hz to 20 kHz
・ Sound quality adjustment: ± 10 dB at 100 Hz in the low range and ± 12 dB at 10 kHz in the high range
・ Microphone input: -56 dBV ± 3 dB 600 Ω Balanced with volume control
・ Line input: -10 dBV ± 3 dB 10 kΩ unbalanced with volume controller
・ Signal to noise ratio: 70 dB or more
・ Line output: -10 dBV ± 3 dB 1 kΩ unbalanced
■ Wireless tuner section:
・ Operating frequency: 1895.616 MHz to 1904.256 MHz
・ Antenna: Built-in antenna
・ Reception method: Diversity reception
・ Field selection: 2 steps
・ Microphone reception: 3 channels
・ Frequency characteristics: 100 Hz to 15 kHz
■ SD card player:
・ Media: SD / SDHC card (up to 32 GB)
・ File system: FAT16, FAT32
・ Playable file format: MP3 (MPEG-1 Audio Layer-3)
・ Sampling frequency: 32 kHz / 44.1 kHz / 48 kHz
・ Bit rate: 32 kbps / 40 kbps / 48 kbps / 56 kbps / 64 kbps / 80 kbps / 96 kbps / 112 kbps / 128 kbps / 160 kbps / 192 kbps / 224 kbps / 256 kbps / 320 kbps
・ WMA (Windows Media Audio)
・ Sampling frequency: 44.1 kHz / 48 kHz
・ Bit rate: 48 kbps / 64 kbps / 96 kbps / 128 kbps / 160 kbps / 192 kbps
■ Bluetooth section:
・ Version: 3.0
・ Profile: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio / Video Remote Control Profile)
・ Class: Class2, output 2.5 mW
・ Power supply: AC 100 V 50 Hz / 60 Hz, AA batteries (LR14XJ) x 10
■ Rated power consumption 22 W (based on Electrical Appliance and Material Safety Law) * 110 W at maximum output

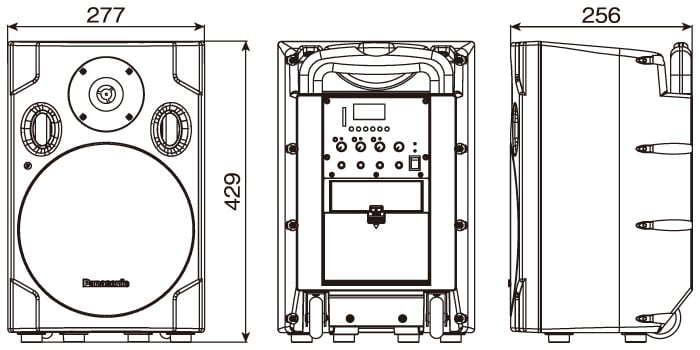

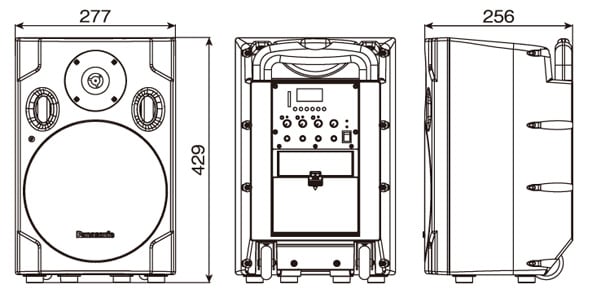

■ Dimensions: Width 277 mm Height 429 mm Depth 256 mm
■ Weight: about 9 kg (excluding batteries)
■ Continuous use time:
(When using batteries) Panasonic alkaline battery LR14XJ (2 x 1.5 V x 10) about 5 hours
(When using one wireless microphone, when loud)

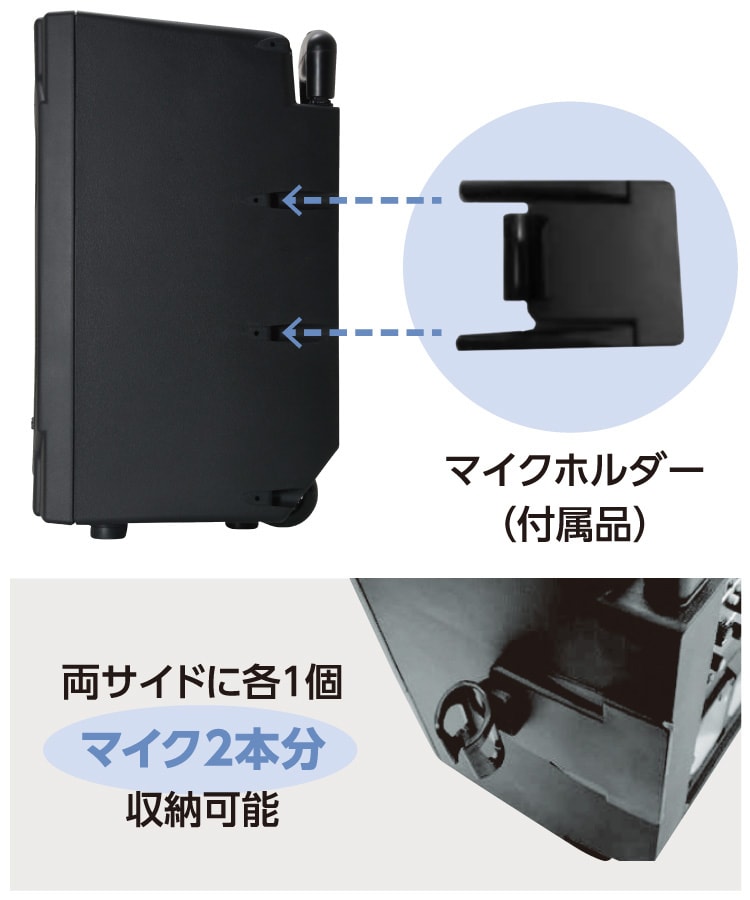

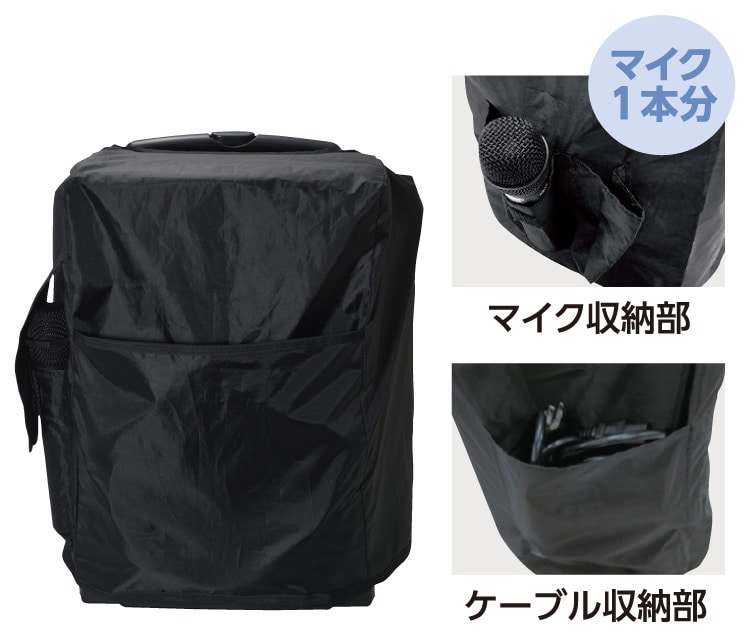

■ Accessories: Microphone holder (detachable), dust cover (for storage)
