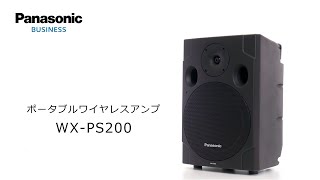

PANASONIC / WX-PS200 Portable Wireless Amplifier Portable PA System

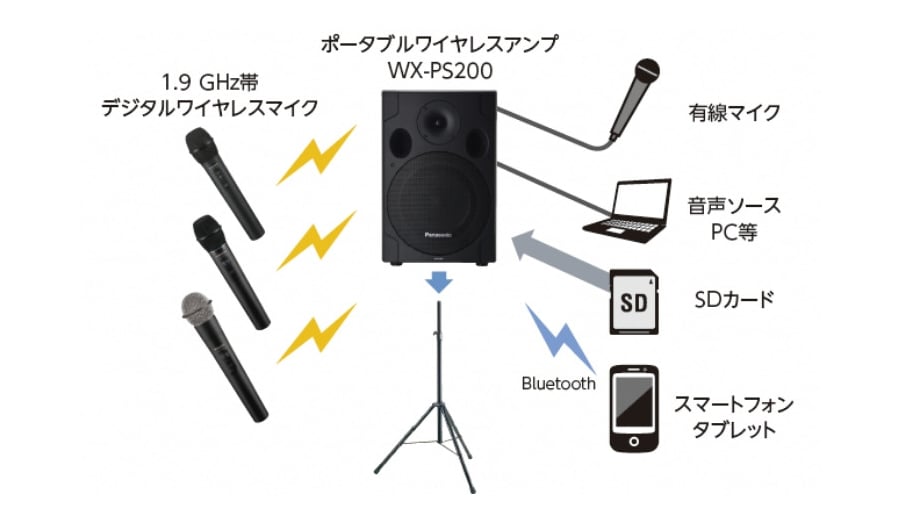

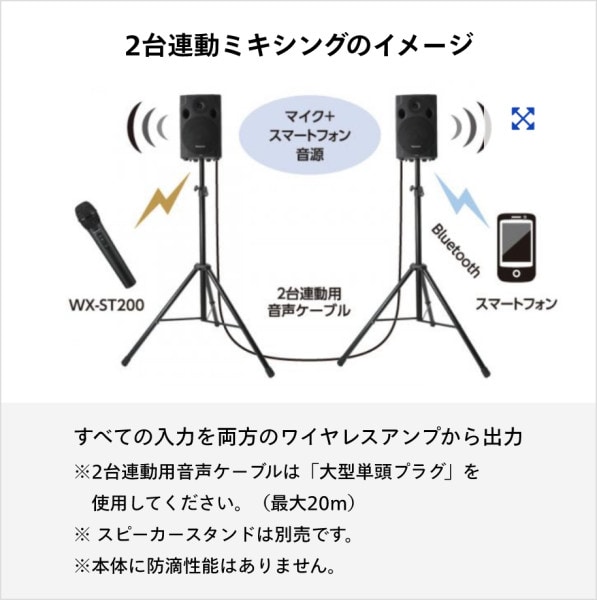

A portable PA that can receive up to three 1.9 GHz digital wireless microphones. Supports SD/Bluetooth music playback, 60W high power, and two-unit linked mixing function.

■Portable PA system
■60W
■Compatible with 1.9 GHz digital wireless microphones

■Amplifier section
・Maximum output: 60 W (AC100 V)
・Rated output: 60 W (AC100 V), 20 W (DC15 V)
・Total harmonic distortion: 5% or less (at rated frequency of 1 kHz)
・Frequency response: 65 Hz to 20 kHz
・Sound quality adjustment: ±10 dB at 100 Hz (low frequency), ±12 dB at 10 kHz (high frequency)
・Microphone input: -56 dBV±3 dB 600 Ω balanced with volume control
・Line input: -10 dBV±3 dB 10 kΩ unbalanced with volume control
・Signal-to-noise ratio: 70 dB or more
・Line output: -10 dBV±3 dB 1 kΩ unbalanced
■Wireless tuner section
・Frequency: 1895.616 MHz to 1904.256 MHz
・Antenna: Built-in antenna
・Reception method: Diversity reception
・Field selection: 2-step switching
・Microphone reception: 3 channels
・Frequency response: 100 Hz to 15 kHz
■SD card player section
・Media: SD / SDHC card (up to 32 GB)
・File system: FAT16, FAT32
・Supported file formats for playback: MP3 (MPEG-1 Audio Layer-3)
・Sampling frequency: 32 kHz / 44.1 kHz / 48 kHz
・Bit rate: 32 kbps / 40 kbps / 48 kbps / 56 kbps / 64 kbps / 80 kbps / 96 kbps / 112 kbps / 128 kbps / 160 kbps / 192 kbps / 224 kbps / 256 kbps / 320 kbps
・WMA (Windows Media Audio)
・Sampling frequency: 44.1 kHz / 48kHz
・Bit rate: 48 kbps / 64 kbps / 96 kbps / 128 kbps / 160 kbps / 192 kbps
■Bluetooth section
・Version: 3.0
・Profile: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile)
・Class: Class2, output 2.5 mW
■Power supply: AC100 V 50 Hz / 60 Hz, 10 AA batteries (LR14XJ)
■Rated power consumption 22 W (based on the Electrical Appliance and Material Safety Act) *110 W at maximum output

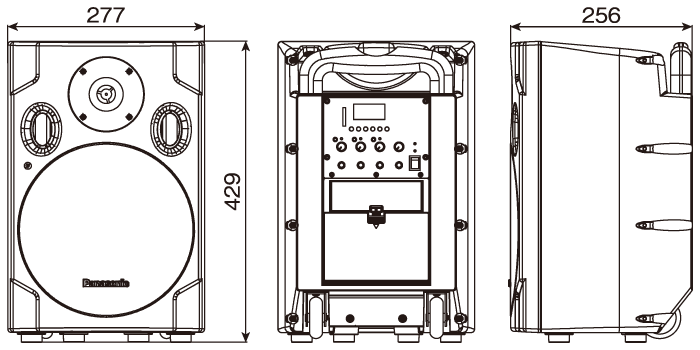

■Dimensions: Width 277 mm Height 429 mm Depth 256 mm
■Weight: Approximately 9 kg (excluding batteries)
■Continuous use time
(When using batteries) Panasonic alkaline batteries LR14XJ (10 x AA size 1.5 V) Approximately 5 hours
(When using 1 wireless microphone, when amplifying)
■Accessories: Microphone holder (detachable), dust cover (for storage)
