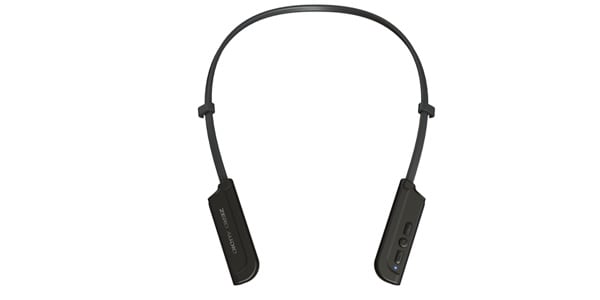

ZERO AUDIO / MBTR1

The M-BTR1 is a wireless receiver that can be docked with the MMCX connector of wired earphones that use the ""M-DOCK system"" to convert them into a neckband-type wireless stereo headset.

The warranty period is 6 months

■Uses M-DOCK system
・By docking with earphones that use Zero's unique cable docking system M-DOCK, it is converted into a neckband-type wireless stereo headset.

■What is M-DOCK?
・A new concept cable docking system developed by Zero. Uses a highly reliable MMCX connector*1 that complies with MIL standards. You can choose the optimal combination from the various M-DOCK lineup to suit your usage environment and preferences. In addition, even in the event of a breakdown or product trouble, it is easy to identify the affected part and replace it.

■High expandability
・The M-BTR1 is a highly expandable system that is also compatible with earphones that use the M-DOCK system.

＜Earphones with M-DOCK system＞

・ZIRCO TENORE / M-DX200-ZT
・ZIRCO BASSO / M-DX210-ZB
・ZIRCO NERO / M-DX230-ZN
・CARBO DUOZAⅡ / M-DWX20-CD
・ZIRCO DUOZAⅢ / M-DWX30-ZD

■Compatible with Qualcomm aptX Low Latency audio
・Equipped with Qualcomm's QCC3005, it supports Qualcomm aptX Low Latency audio, which has low transmission delay and low compression loss, as well as Qualcomm aptX audio, AAC, and SBC. aptX LL achieves an extremely low audio transmission delay speed of about 40 ms, which is significantly lower than the delay that humans can perceive. You can enjoy videos without stress.

■Lightweight flexible neckband
・A lightweight neckband with a built-in shape memory alloy that fits flexibly is used to achieve a comfortable fit. Taking advantage of the properties of shape memory alloy, it can be rolled up and stored compactly in the included carrying bag.

■Controller with built-in microphone
- The controller with built-in microphone for hands-free calls on smartphones provides comfortable operability for play/pause, skip, ON/OFF, volume, pairing, and calls.

■Cable slider
- The smart cable slider makes it possible to adjust the length of the cable to your liking and prevent it from getting tangled.

*Headphones are not included with this product. Please use earphones compatible with the M-DOCK system (sold separately).

■Built-in microphone: Omnidirectional MEMS microphone
■Communication method: Compliant with Bluetooth standard Ver.5.0
■Output: Bluetooth standard Power Class2
■Maximum communication distance: Within 10m in a clear line of sight
■Frequency band used: 2.4GHz band
■Supported Bluetooth profiles: A2DP, AVRCP, HFP, HSP
■Supported codecs: Qualcomm aptX Low Latency audio, Qualcomm aptX audio, AAC, SBC
■Supported content protection: SCMS-T method
■Transmission band (A2DP): 20 to 20,000Hz
■Power supply: DC3.7V lithium polymer battery (built-in)
■Weight: Approximately 17.5g
■Permitted operating temperature: 5℃ to 40℃
■Usable time: Continuous communication (when playing music): Up to 8 hours *Varies depending on connection conditions

Continuous standby: Up to 150 hours *Varies depending on usage conditions

Charging time: Approx. 2 hours

Charging temperature: 10℃ to 35℃

Accessories: USB cable (Type-A to Micro B), carrying bag

商品レビューProduct Review

総合評価Avg. Rating：(3)
レビュー数Reviews：2

5		0件
4		0件
3		2件
2		0件
1		0件

2025/07/08

音声の途切れ、ノイズ

投稿者名Reviewed by：tar0 【埼玉県】

Apt X LLが使える普及価格帯のイヤホンは現状これくらいしかないので買いました。

Apt X LLならではの低遅延は良いのですが、Bluetooth接続の品質がかなり悪い（弱い）です。

切れることはありませんが、トランスミッターから1mくらいの近距離でもノイズや音の途切れが発生します。トランスミッターとの間に自分の腕や肩が入るだけで音が途切れます。
同条件で他のBluetoothイヤホンと比べても、圧倒的に弱いです。

ぜひ改善してほしいところです。

レビューIDReview ID：686cfae81ef3e70069000008

シェアするShare this review

2025/05/07

画期的な製品だとは思うが

投稿者名Reviewed by：h87108610 【愛媛県】

もともと有線だったイヤホンをBluetoothで使用できるのは非常にいいと思う。遅延も大して気にならず、音質の変化も感じなかった。
ただ接続の不安定さにはイライラさせられている。
5分に10回のペースで音が途切れたりノイズが走ったりするので、聴いていて非常にイライラする。
普段ストレス発散のために音楽を聴いてるが、これでは自分の胃とイヤホンのどちらが先に駄目になるか気が気でない。
自分が運悪く不良品を掴まされただけかもしれないが、ネックレスとしては良いデザインをしているので、少々高いアクセサリーとしては十分な商品ではないだろうか。

レビューIDReview ID：681a4b5ca3fd620063000015
