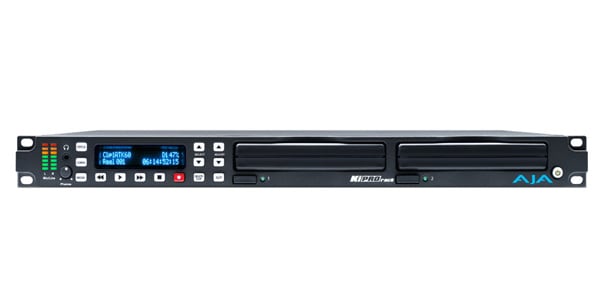

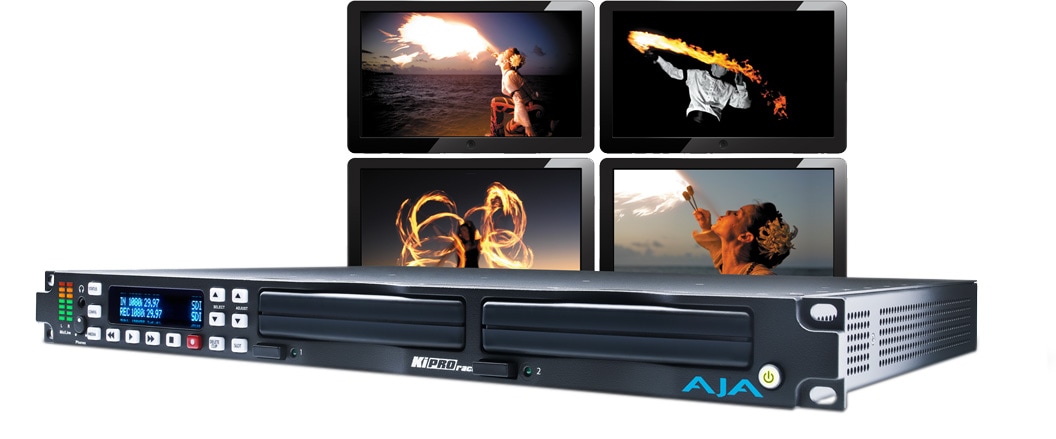

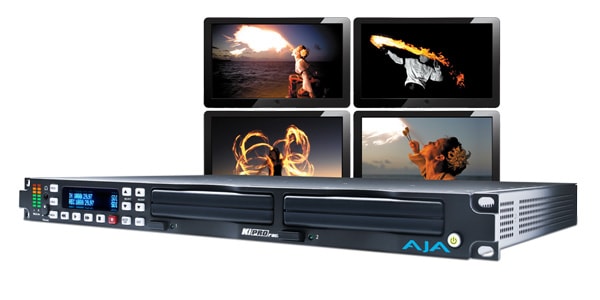

AJA Video Systems / KI-PRO-RACK

A 1RU file-based recorder and player with broadcast-quality up/down/cross-conversion during recording and playback!

■File-based 1RU recorder and player
■Video inputs:
・1080i 25, 29.97, 30
・1080PsF 23.98, 24, 25*, 29.97*
・1080p 23.98, 24, 25, 29.97
・720p 23.98, 25*, 29.97*, 50, 59.94, 60
・625i 25
・525i 29.97
*Note: 25 and 29.97 require a valid camera source and
Type > PsF selection.
■Codec Support:
・Apple ProRes 422
・Apple ProRes 422 (HQ)
・Apple ProRes 422 (LT)
・Apple ProRes 422 (Proxy)
・Avid DNxHD HQX (220x)
・Avid DNxHD SQ (145)
・Avid DNxHD LD (36) (supports 1080p format only)
■Removable Storage:
・AJA KiStor Module - 2 slots (with rollover recording)

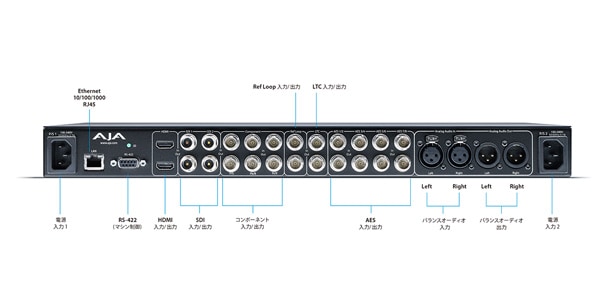

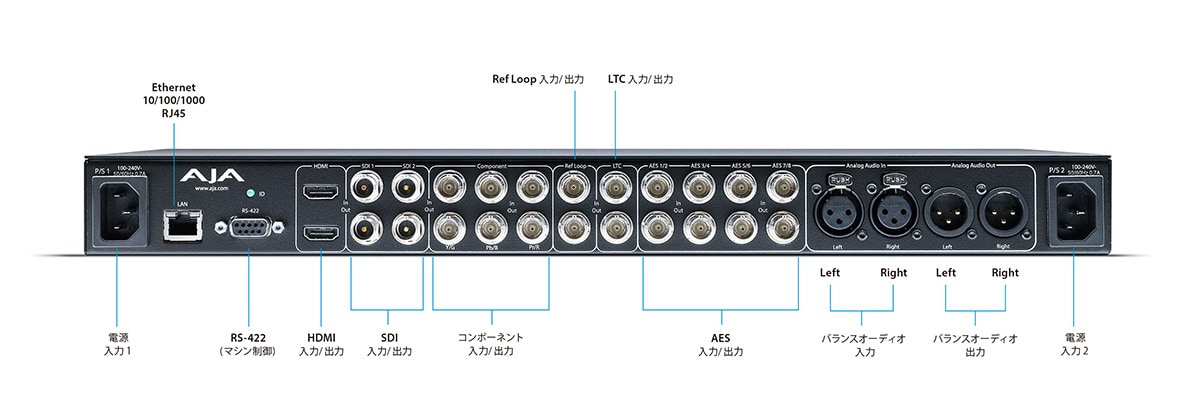

■Digital Video Input:
・SD/HD-SDI, SMPTE-259/292/296, 10-bit
・Single Link 4:2:2 (2 x BNC, software input selection)
・HDMI v1.3
■Analog Video Input:
・SD/HD Component (3 x BNC)
・SMPTE/EBU N10, Betacam 525 line, Betacam 525J

12-bit A/D, 2x oversampling

+/- .25 dB to 5.5 MHz Y frequency response

+/- .25 dB to 2.5 MHz C frequency response

.5% 2T pulse response

<2 ns Y/C delay unequal, or composite (1 x BNC - CVBS on Y)

Digital video output:

SD/HD-SDI, SMPTE-259/292/296, 10-bit

Single Link 4:2:2 (1 x BNC)

HDMI v1.3

Note: HDMI requires 1080i or 720p, 1080p active. HDMI does not support PsF. ■Analog Video Output:
・Component (3 x BNC)
・NTSC, NTSCJ, PAL
・HD: YPbPr, RGB
・SD: YPbPr, RGB (component mode)
・SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
・12-bit D/A, 8x oversampling
・+/- .2 dB to 5.5 MHz Y frequency response
・+/- .2 dB to 2.5 MHz C frequency response
・.5% 2T pulse response
・<1 ns Y/C delay unequal or composite (1 x BNC - CVBS on Y)
・+/- .2 dB to 1 MHz C frequency response
・<1% differential phase (DP)
・<1% differential gain (DG)■Digital Audio Input:
・8 channels, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, synchronous

-2 channel, 24-bit HDMI embedded audio, 48kHz sample rate, synchronous

-8 channel, 24-bit AES/EBU audio, 48kHz sample rate,
synchronous or asynchronous, internal sample rate conversion (4 x BNC)

■Analog Audio Input:

-2 channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (2 x XLR)

-+24dbu full scale digital

-+/- 0.2db 20 to 20kHz frequency response

Note: Line or mic selection via CONFIG menu parameters

■Digital Audio Output:

-8 channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, synchronous

-8 channel, 24-bit HDMI embedded audio, 48kHz sample rate, synchronous

-8 Channel, 24-bit AES/EBU audio, synchronous or asynchronous, internal sample rate conversion (4 x BNC)
■Analog Audio Output:
・2 channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (2 x XLR)
・+24dbu full scale digital (0dbFS)
・+/- 0.2db 20 to 20kHz frequency response
・Stereo unbalanced headphone (1 x 3.5mm mini jack)
■Upconversion:
・Hardware 10-bit
・Anamorphic: Full screen
・Pillarbox 4:3: Centers a 4:3 image on the screen with black bars on both sides.
・Zoom 14:9: Zooms a 4:3 image slightly to create a 14:9 image with black bars on both sides.
・Zoom Letterbox: Zooms the image to full screen.
・Zoom Wide: Combines zooming and horizontal stretching to fit a 16:9 screen. This may slightly change the aspect ratio.
■Down Conversion:
・Hardware 10-bit
・Anamorphic: Full screen
・Letterbox: Black bars are added to the top and bottom of the image area to shrink the image. The aspect ratio remains the same.
・Crop: The image is cropped to fit the new screen size.
■Cross Conversion:
・Hardware 10-bit
・1080i → 720p
・720p → 1080i
■Timecode:
・SDI BNC via SDI RP188/SMPTE 12M
HDMI (when used with compatible camera)
・LTC input (1 x BNC)
・LTC output (1 x BNC) (Note: active during playback. not active during recording and EE.)
■Reference Input:
・External Reference Input (2 x BNC)
・Analog Black Burst (1V) or Composite Sync (2V or 4V)
・Loop, non-terminated
■Network Interface:
・10/100/1000 Ethernet (RJ-45)
・Embedded web server for remote control
■User Interface
・20 x 2 with dedicated buttons Alphanumeric display
■Closed caption support
・CEA-708, CEA-608
■Machine control:
・RS-422, DE-9 female terminal, Sony 9-pin protocol
・9-pin D connector pin arrangement
1:GND
2:TX-
3:RX+
4:GND
5:No Collection
6:GND
7:TX+
8:RX-
9:GND
Shell:GND
■SIZE:482.6(W)x 44.5(H)x317.5(D) 3.4 kg
