Meris / HEDRA

A three-voice pitch shifter with functionality not available in any other pitch shifter pedal.

■3-voice pitch shifter

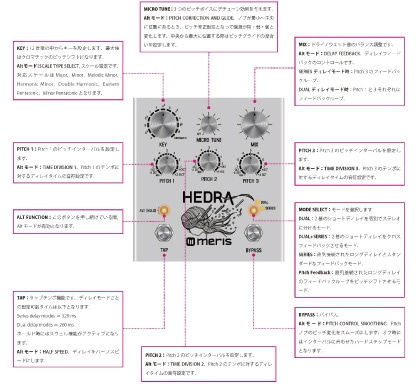

■Controls

-KEY-
-Set the key from the 12 scales.
-Maximum value is chromatic pitch shift.
-Alt mode: SCALE TYPE SELECT
-> Scale setting.
-> Supported scales are Major, Minor, Melodic Minor, Harmonic Minor, Double Harmonic, Eastern Pentatonic, and Minor Pentatonic.

-MICRO TUNE-
-Detune effect on three pitch voices.
-Alt mode: PITCH CORRECTION AND GLIDE
-> When the knob is in the minimum to center position, the pitch correction setting is set and the strength changes from none, weak, to strong.
-> When it is in the center to maximum position, the degree of pitch glide is set.

-MIX-
-Adjusts the balance between dry and wet sounds.
・Alt mode: DELAY FEEDBACK
→ Controls the delay feedback.
In SERIES delay mode: Feedback loop for Pitch 3.
In DUAL delay mode: Feedback loop for Pitch 1 and 3.

-PITCH 1-
・Sets the pitch interval for Pitch 1.
・Alt mode: TIME DIVISION 1
→ Sets the delay time in musical notes relative to the tempo of Pitch 1.

-PITCH 2-
・Sets the pitch interval for Pitch 2.
・Alt mode: TIME DIVISION 2
→ Sets the delay time in musical notes relative to the tempo of Pitch 2.

-PITCH 3-
・Sets the pitch interval for Pitch 3.
・Alt mode: TIME DIVISION 3
→ Sets the delay time in musical notes relative to the tempo of Pitch 3.

-ALT FUNCTION-
・While holding down this button, Alt mode is active.

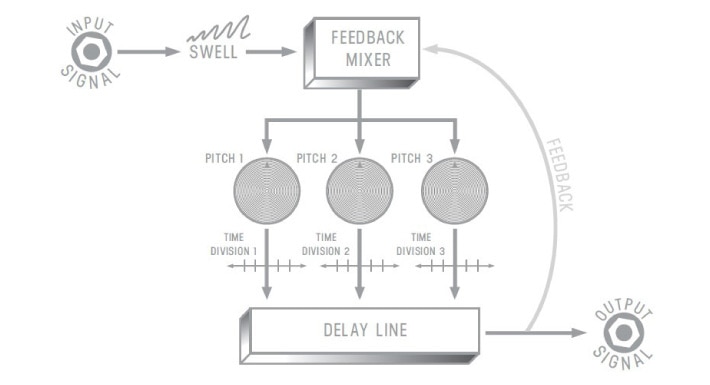

-MODE SELECT-
・Selects the mode.
DUAL: Separates two short delays into stereo.
DUAL+SERIES: Cross-feeds two short delays.
SERIES: Series-connected long delay and standard feedback mode.
Pitch Feedback: Pitch-shifts the feedback loop of a series-connected long delay.

-TAP-
・Tap tempo function.
・The following delay times can be set for each delay mode.
Series delay modes = 520 msec
Dual delay modes = 260 msec
・Swell function is active when holding.
・Alt mode: HALF SPEED
→Sets the delay to half speed.

-BYPASS-
・Bypasses.
・Alt mode: PITCH CONTROL SMOOTHING
→ Smoothens the pitch change of the Pitch knob.
→ When off, it switches to hard step mode that matches the interval.
