Meris / ENZO

A multi-voice synthesizer pedal inspired by the sounds of pioneers like Terry Riley, Joe Zawinul, and Bangelis. With new technology, it is possible to synthesize not only guitars, but also drum machines, vocals, synthesizers, and any other sound source.

■Multi-voice synthesizer pedal

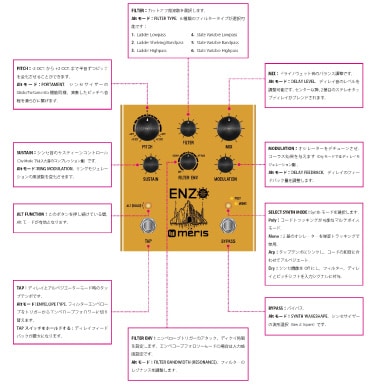

■Controls
-PITCH-
・You can change the pitch in semitone increments from -2 OCT to +2 octaves.
・Alt mode: PORTAMENT
→Smoothly connects the pitch to the played pitch, just like the Glide/Portamento function of a synthesizer.

-FILTER-
・Selects the cutoff frequency.
・Alt mode: FILTER TYPE
→You can select from six filter types.
1. Ladder Lowpass
2. Ladder Shelving Bandpass
3. Ladder Highpass
4. State Variable Lowpass
5. State Variable Bandpass
6. State Variable Highpass

-MIX-
・Adjusts the balance between dry and wet sounds.
・Alt mode: DELAY LEVEL
→You can adjust the level of the delay sound.
→The second stereo tap delay is blended after the center.

-SUATAIN-
・Synth sound sustain control (in Dry mode, input sound compression amount).

-Alt mode: RING MODULATION
→ Changes the frequency of ring modulation.

-FILTER ENVELOPE-
・Sets the attack and decay time of the envelope trigger.
・In envelope follower mode, this is the input sensitivity setting.

-Alt mode: FILTER BANDWIDTH (RESONANCE)
→ Adjusts the filter resonance.

-MODULATION-
・Detunes the oscillator to create a chorus effect (in Dry mode, delay modulation amount).

-Alt mode: DELAY FEEDBACK
→ Adjusts the amount of delay feedback.

-ALT FUNCTION-
・Alt mode is active while this button is held down.

-SELECT SYNTH MODE-
・Selects the synth mode.
Poly: Multi-voice mode with chord tracking.
Mono: Uses two oscillators for single note tracking.
Arp: Syncs to tap tempo and arpeggiates to chords.
Dry: Turns off synth function, applies filter, delay and pitch shift to input signal.

-TAP-
・Tap tempo in delay and arpeggiator modes.
・Alt mode: ENVELOPE TYPE
→Switches filter envelope from trigger to envelope follower.
・Hold TAP switch
→Maximum delay feedback.

-Bypass-
・Bypass.
・Alt mode: SYNTH WAVESHAPE
→Selects synthesizer waveform (Saw and Square).
