padmate / PM16550

Padmate's ""PaMu Scroll Plus"" is a completely wireless earphone that retains the unique leather storage case design of the Pamu Scroll, which was developed based on ""PaMu,"" which has received over 100 million yen in funding on the US crowdfunding site INDIEGOGO, but with upgraded functions.

■ Adoption of the latest Qualcomm chip
Based on our in-house developed module, we have adopted Qualcomm's latest chipset and Bluetooth V5 technology, making these comfortable earphones easy to connect to devices and less likely to cut out.
*If the radio wave environment is extremely poor, such as near a microwave oven or in a crowded train, sound skipping and interruptions may occur.

■ aptX codec
By shrinking the audio file, we compress it so that it can be passed through the wireless ""pipe"" so that pure audio can be transmitted wirelessly via Bluetooth without sacrificing sound quality.
With aptX, you can enjoy high-quality music anytime, anywhere.

■ Continuous music playback for 6 hours and up to 18 hours of playback!
The earphones can play music continuously for about 6 hours when fully charged. If you use the charging case, you can play music for up to about 18 hours.
* Playback time may vary slightly depending on the volume, radio wave conditions, usage environment, etc.

■ Clear and balanced sound
While maintaining the design of small, ultra-lightweight earphones, we have achieved the maximum sound that a compact design of completely wireless earphones can produce.
The bass is rich, the mids and trebles are clear, and the sound is well-balanced and powerful in all ranges, allowing you to enjoy various genres of music such as techno, pop, rock, and R&B.

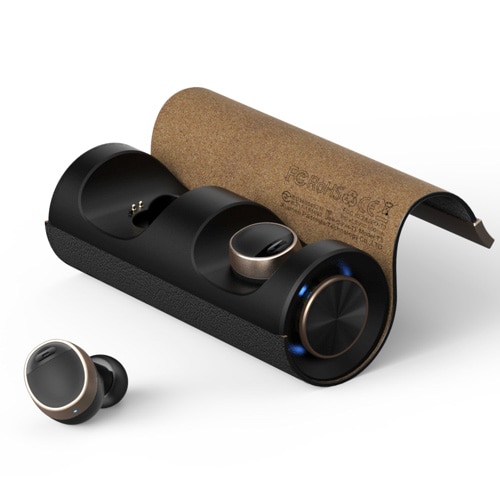

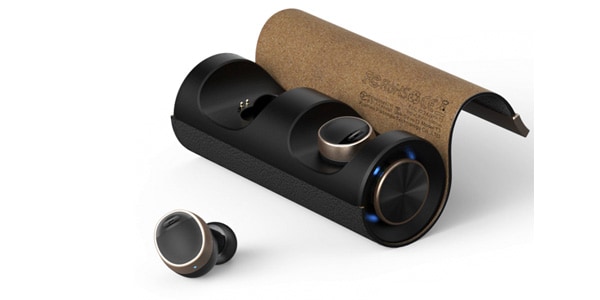

■Unique leather storage case with scroll design
The cover of the unique storage case, which opens and closes like a wrap, is made of leather with different patterns for each color and is finished by hand, giving it a luxurious design.

Available in three colors, the diverse pattern variations will inspire your selection.

■Ergonomically designed ear tips for an excellent fit
The earphones are small, weighing only 5g per ear, and have a lightweight and rounded design, providing an excellent fit and making them less likely to fall out of your ears. They are useful in various situations, such as commuting to work or school, sports, and everyday life. In addition, the highly sound-insulating ear tips prevent external sounds from entering, allowing you to enjoy your own sound even in noisy environments.

■Waterproof level IPX6, excellent waterproof performance, can withstand sudden rain and sweat during exercise
PaMu Scroll Plus has an IPX6 waterproof performance. It can be used not only during sweat and rain during exercise, but also during showers.
*Not suitable for swimming or submersion in water.

■Auto pairing
Just remove the earphones from the charging case to turn them on, and the left and right earphones will automatically pair with each other. Initial Bluetooth settings can be completed with just one tap on a device such as a smartphone or tablet. Once set up, the device will automatically pair with the auto pairing function, making it very easy.

■Easy operation of touch remote control function
Just touch the earphones to easily play, stop, and skip songs.


Volume adjustment: Press and hold the earphone button (R is +, L is -)
Play/stop: Touch the earphone (L or R) button once
Song skip: Touch the earphone (R) button twice
*You cannot go back to the previous song.

■Hands-free calling function & binaural calling
When a call comes in, you can operate it by one-clicking the earphone button, so you can talk without taking your smartphone out of your bag. Since you can talk with both ears, you can hear it clearly and the clarity of the voice increases.
*The microphone is only on the right side, so please use the right earphone when making a one-ear call.


Answering/hanging up a call... Touch the button on the earphone (L or R) once
Rejecting a call... Touch the button on the earphone (L or R) twice

■Personal assistant function & Siri function
English voice guidance will be played according to the operation of the earphone. We have also added an active Siri function.

■Initial pairing method
①Remove the earphones from the charging case and wear them in your ears. (Automatic power on)
②The model name ""PaMu Scroll Plus"" will be displayed in the Bluetooth device list on your device, so tap it.
③Pairing is complete once it is connected.

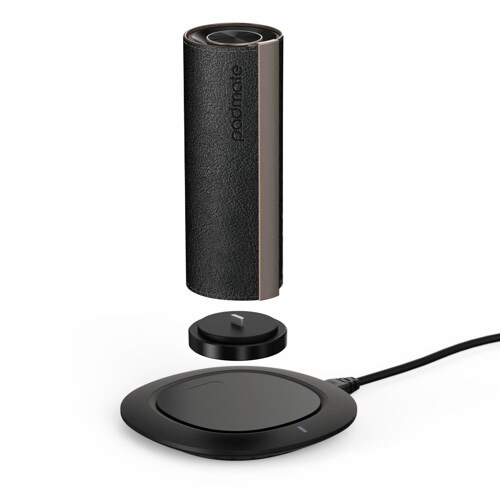

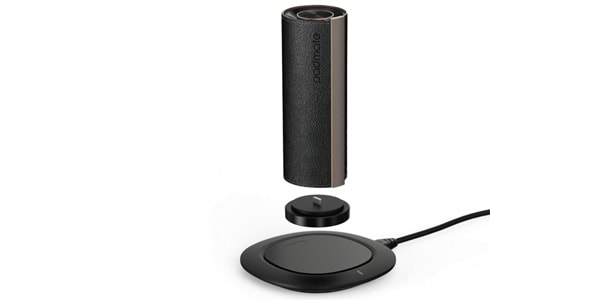

■Two ways to charge the charging case
① How to charge with a wireless charger
Connect the included accessory ""PaMu Wireless Charge Receiver"" to the charging case and place it on a wireless charging pad (not included) to charge.
② How to charge using the included Micro USB cable
Connect the Micro USB cable included in the package to an AC adapter for wired charging.

While charging, the blue LED lights on the charging case will flash in sequence. After charging is complete, the four lights will light up.
The remaining charge can be checked in four stages by the LED lights.
One light indicates 25%, two lights indicate 50%, three lights indicate 75%, and four lights indicate 100%.

＜Specifications＞
◇Earphones
■Driver: Dynamic Φ6mm
■Frequency range: 20Hz to 20,000Hz
■Bluetooth Version: 5.0
■Impedance: 16Ω
■Battery: Lithium-ion rechargeable battery 3.7V / 55mAh
■Playback and talk time: Up to 6 hours (stereo)
■Maximum standby time: Approximately 150 hours
■Size / weight: 1.95 x 1.7 x 2.7cm / 5g
■Waterproof standard: IPX6
■Codec: AAC, SBC, aptX
■Profile: A2DP, AVRCP, HFP, HSP, SPP, PBAP
■Chipset: Qualcomm

◇Charging case
■Size / weight: Diameter 3.7 x 9.6 cm / Approximately 60g
■Battery: Lithium-ion rechargeable battery 3.7V / 500mAh
■Charging time: Approximately 2 to 3 hours
■Input/output: 5V/1A
■Charging port: Micro USB

◇Wireless charging receiver
■Size/weight: Diameter 4 x 1.3 cm / 9g
■Frequency: 100KHZ-205kHZ
■Power: 5W (※Can also be used with other Pamu products that use Micro USB ports.)
■Charging time: Approximately 2 to 3 hours

◇Accessories
Earphones (R/L), charging case, wireless charging receiver, Micro USB charging cable, standard ear tips S/M/L sizes, instruction manual
