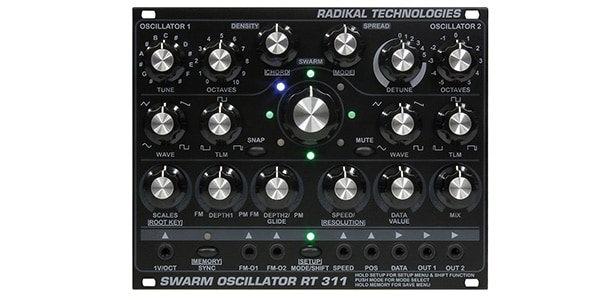

RADIKAL TECHNOLOGIES / RT-311 Swarm Oscilator

RADIKAL TECHNOLOGIES Dual Digital Oscillator for Eurorack Modular Synths. A multi-functional oscillator with memory, morphing, and 16 simultaneous voices.

The Radikal Technologies RT-311 is a dual digital oscillator for Eurorack modular synths. Boasting specifications far surpassing those of existing analog oscillator modules, it offers the versatility of DSP, including memory, morphing, and 16-voice simultaneous polyphony.
The memory function allows you to save and recall up to eight snapshots of all waveform parameters, allowing you to play back original patches you've worked on over time. The morphing function allows you to smoothly or rapidly change these snapshots (1 → 2 → 3...) using the built-in LFO or CV, creating dynamic changes to your sound. Furthermore, up to 16 oscillators can be constructed and played simultaneously. By slightly detuning each oscillator, you can create ultra-thick unisons, precisely pitched chords and deep drones, or completely different layers of sounds using FM or sync settings. These settings can also be saved in snapshots. Saved data remains intact even when the power is turned off. By making full use of these functions, you can play eight chords using different sounds in real time, enabling performances unimaginable with analog oscillators.

The basic waveforms are sine, triangle, sawtooth, and pulse, but morphing allows for continuous waveform switching, and the TLM (Time Linearity Modulation) knob allows for any waveform modification.

In addition, the CV input from the 1V/oct jack can be quantized to ensure accurate pitch. The Scale knob allows you to select from 14 different scales, including chromatic and pentatonic.

Width: 32HP
Depth: 30mm
Current Consumption: +12V: 250mA
-12V: 40mA
