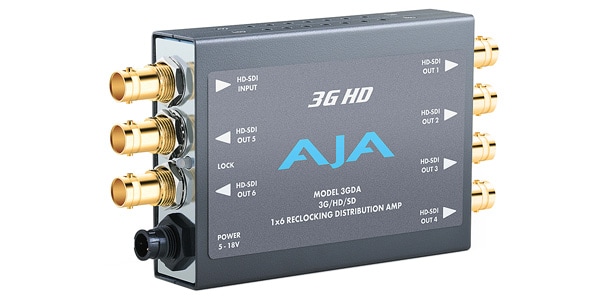

AJA Video Systems / 3GDA

Distribution amplifier with re-clocking and 6 individually buffered 3G/HD/SD outputs.

■Video format:
100 Mbps - 3 Gbps, auto-detect
■Digital video input:
1 x 3G-SDI BNC, SMPTE-259/292/424
■Digital video output:
6 x 3G-SDI BNC, SMPTE-259/292/424
■Cable equalization:
・(Belden 1694A coax)
・3 Gbps, 120m
・1.5 Gbps, 200m
・270 Mbps, 350m
■Input/output return loss:
>15db, 270Mb - 3Gb
■Reclocking:
2.970 Gbps, 2.967 Gbps, 1.485 Gbps, 1.483 Gbps, 270 Mbps - auto-detect
*If the rate is other than the above, it will be passed through and will not be reclocked.
■SIZE:
131(W) x25(H)x79(D)mm　0.3kg
■Accessories: Power adapter (DWP-U-R1)
