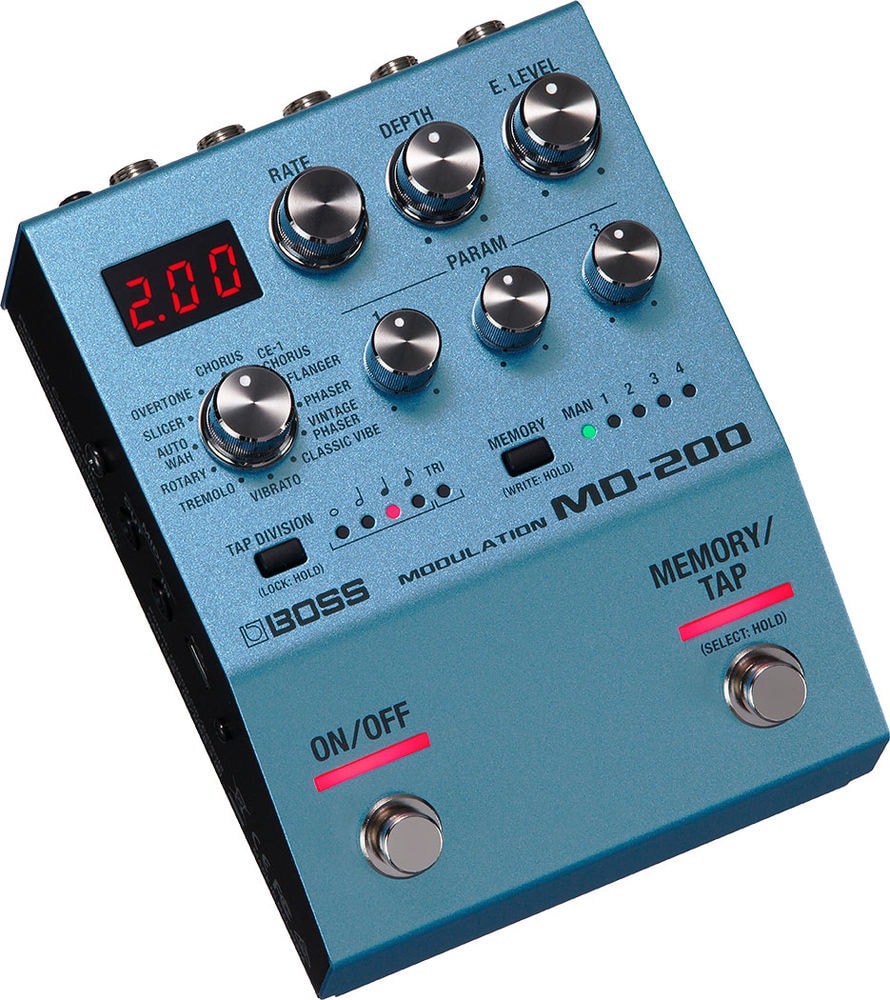

BOSS / MD-200

The BOSS / MD-200 is a multi-modulation pedal with 12 types of modulation in a dual footswitch body. Intuitive operation, including TAP tempo, makes it easy to create any modulation sound.

■Guitar Effects
■Modulation
■200 Series
■12 types of modulation effects
Chorus, Ce-1, Flanger, Phaser, Vintage Phaser, Classic Vibe, Vibrato, Tremolo, Rotary, Auto Wah, Slicer, Overtone
■Features
・Best-in-class sound quality with advanced processing of 96kHz sampling rate, 32-bit AD/DA conversion, and 32-bit float internal calculation
・12 types of modulation effects with a wide variety of variations
In addition to the R.ATE, DEPTH, and E. LEVEL knobs, there are three PARAM knobs optimized for each mode
・Insert loop function that allows you to place an external effect before or after the modulation effect
・Memory function that can save four settings
・FLANGER, PHASER, AUTO WAH can be optimized for the characteristics of guitar or bass.

- Panel lock function prevents accidental operation while playing.

- Footswitch to which functions can be freely assigned, such as effect ON/OFF, tap tempo, memory selection, etc.

- Equipped with a full range of control terminals for external footswitches, expression pedals, and MIDI control.

- Equipped with a MIDI terminal (stereo mini type) (uses the separately sold BMIDI-5-35 cable).

- Micro USB terminal for firmware updates.

■ Specifications

- Sampling frequency: 96kHz

- AD, DA conversion: 32-bit

- Internal calculation: 32-bit floating point

- Drive circuit: Analog + digital

- Nominal input level: -10dBu
・Maximum input level: +7dBu
・Input impedance: 2MΩ
・Nominal output level: -10dBu
・Maximum output level: +7dBu
・Output impedance: 1kΩ
・Recommended load impedance: 10kΩ or more
・Bypass: Buffered
・Display: 7-segment 3-digit (LED)
・Connection terminals
-INPUT (A/MONO, B), OUTPUT (A/MONO, B) terminals: 1/4-inch type
-CTL 1, 2/EXP terminals: 1/4-inch TRS type

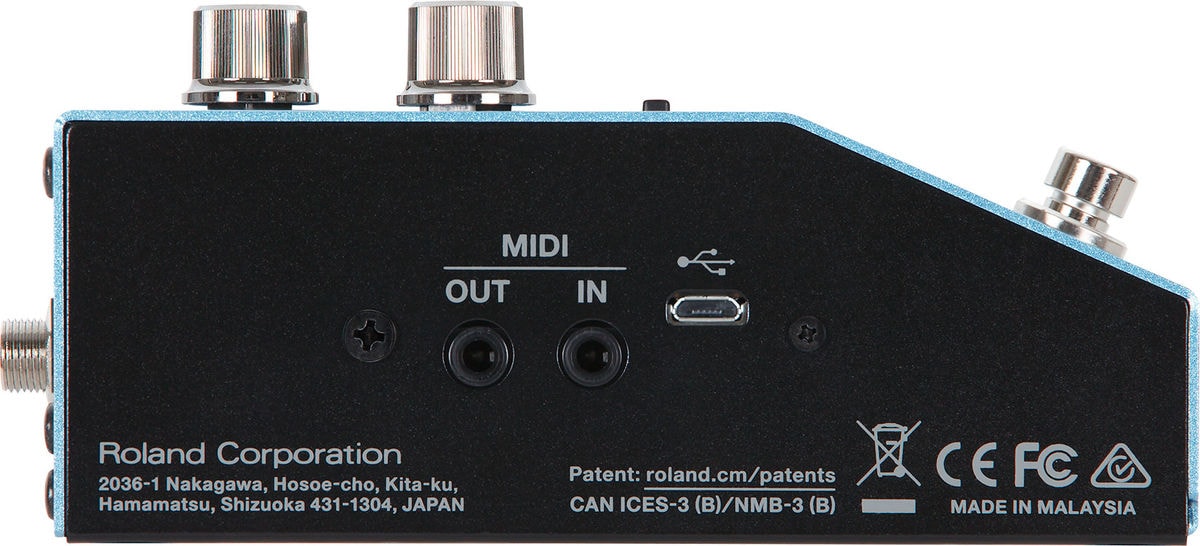

-MIDI (IN, OUT) terminals: Stereo mini type
-DC IN terminal
-USB terminal: USB micro B type (program updates only)
■Power supply: 3 x alkaline batteries (AA size) or DC adapter sold separately (PSA-100)

■Size/weight: W101xD138xH65 (including rubber feet) mm/680g (including batteries)

*Images are for illustrative purposes only.
