ICON DIGITAL / PLATFORM B+ Expansion Module Unit

ICON DIGITAL / PLATFORM B+ is an expansion module unit exclusively for PLATFORM M+.

■ Expansion Module Unit
■ Exclusively for PLATFORM M+

A dedicated expansion module for ICON's PLATFORM M+, a compact DAW control surface with motorized faders.

■Features

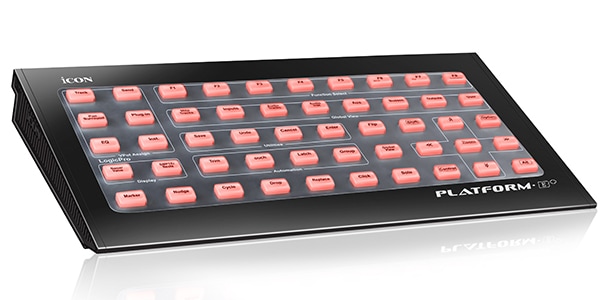

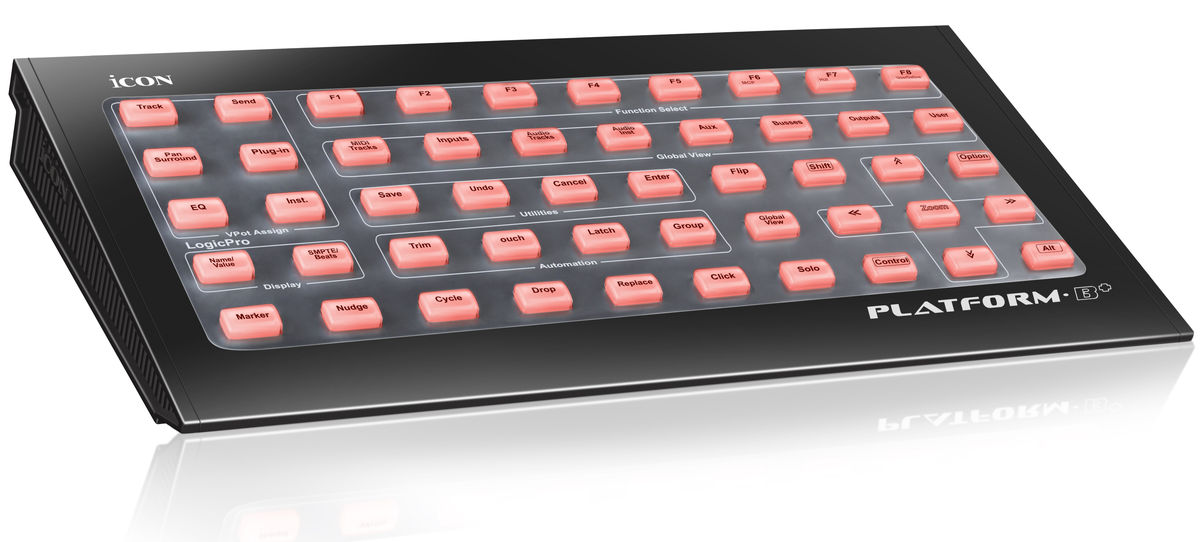

""This expansion unit makes using the PLATFORM M+ even more convenient, featuring 50 illuminated buttons. Since each button has a different function for each DAW, it comes with a dedicated silicon overlay with the corresponding function name.

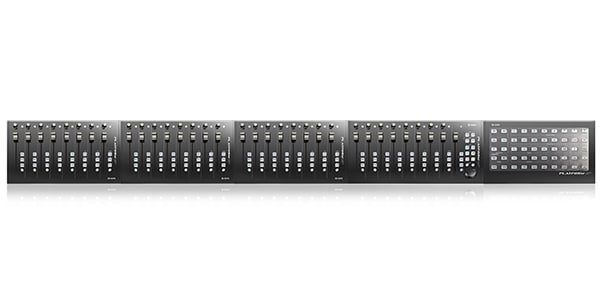

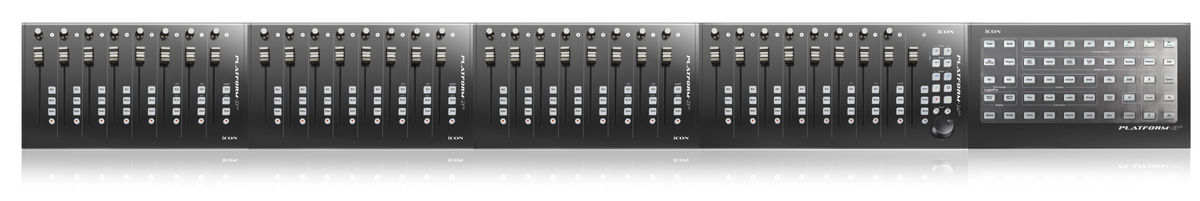

Connecting the PLATFORM B+ to the PLATFORM M+ via a dedicated cable dramatically improves your workflow.""

■Specifications
""- 50 illuminated function buttons for controlling different DAW functions
- Supports any DAW or application via Mackie Control or Mackie HUI protocol, as well as user-defined settings

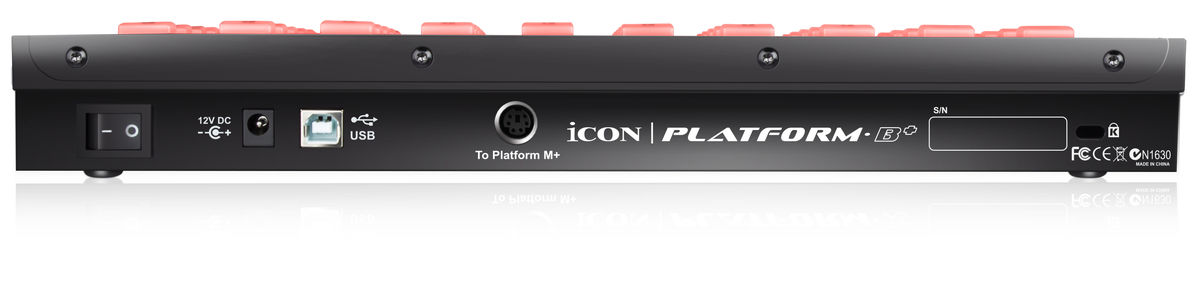

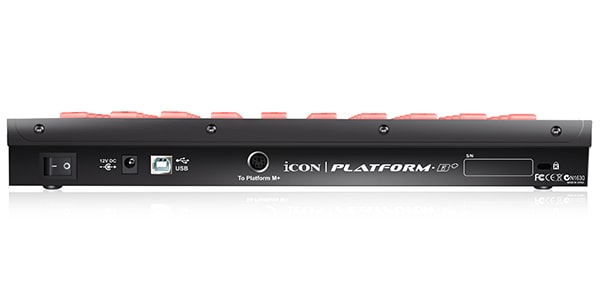

- Dedicated expansion connector for direct connection to the PLATFORM M+
- USB port allows use without the PLATFORM M+ (as a standalone device)
- Silicon overlays for each DAW included
*Compatible with Cubase/Nuendo, Logic Pro, Samplitude, Reaper, Studio One, Bitwig, Reason, Pro Tools, Sonar, Audition, Ableton Live, FL For Studio, Digital Performer, and user settings
- High-speed USB 2.0 connection
- Mackie Control protocol for Cubase, Nuendo, Samplitude, Logic Pro, Reaper, Studio One, Bitwig, Reason, FL Studio, Digital Performer, and Ableton Live
- Mackie HUI protocol for Pro Tools control
- iMap software included for easy MIDI mapping
- Firmware updates are easy via USB connection and iMap software
- Precision-assembled metal casing with Kensington lock port
- USB cable and AC adapter included
- Dimensions: 335 x 198 x 42 mm (L x W x H)
- Weight: 966 g

■ Supported OS:
Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows 10
Mac OSX 10.12 or later (Intel/Mac) Class Compliant""
