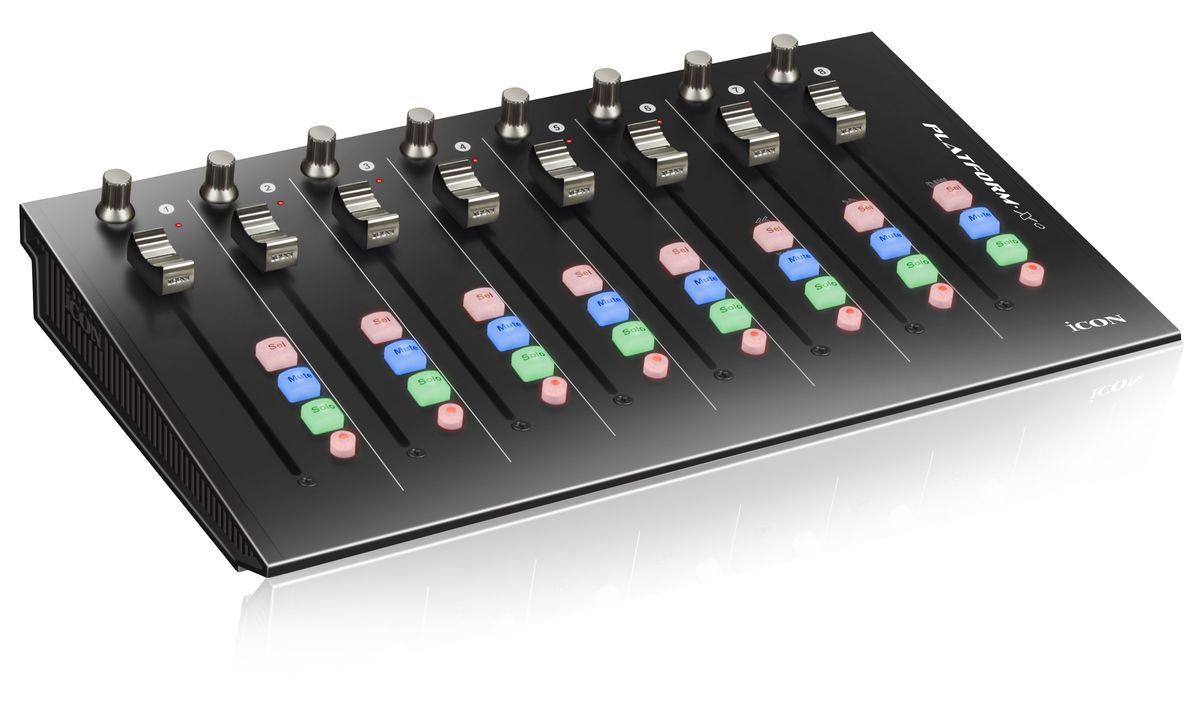

ICON DIGITAL / PLATFORM X+ Expansion Unit

A dedicated expansion module for ICON's PLATFORM M+, a compact DAW control surface with motorized faders.

■ Expansion Unit
■ Exclusively for PLATFORM M+

■ Features
""This motorized fader expansion unit can be added to PLATFORM M+ to increase the number of channels in 8-channel increments. By adding up to three PLATFORM X+ units to PLATFORM M+, you can expand up to 32 channels. Despite its compact size, it features eight 10-bit motorized faders, and each button features multicolor LEDs for improved visibility.
In addition, parameter names can be displayed using the dedicated PLATFORM D2 LCD module (sold separately).

■ Specifications

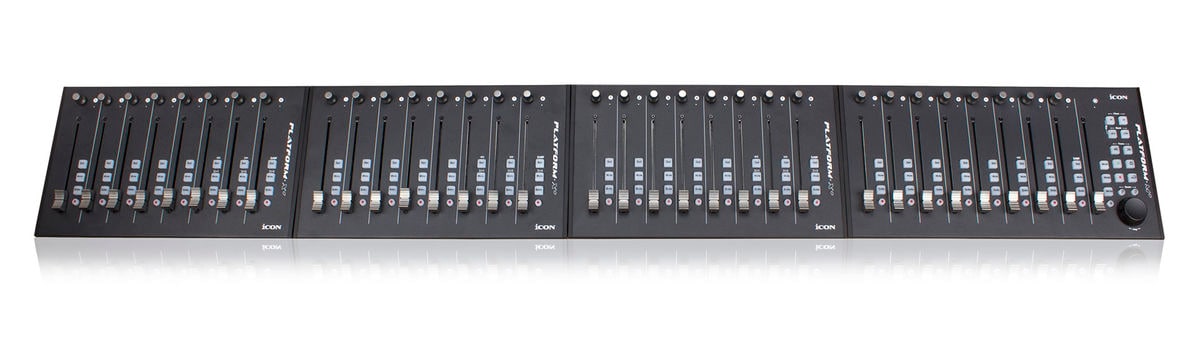

""・This expansion unit can be added to PLATFORM M+ to add 8 channels. ・When three PLATFORM X+ units are added to PLATFORM M+, Add an X+ to create a control surface with up to 32 channels.

Extremely compact and stylish design.

Customize with PLATFORM series expansion modules.

Eight 100mm motorized channel faders with 10-bit resolution and touch sensitivity.
*Fader speed can be individually set.

Dual-function (turn/push) rotary encoder knobs for each channel.

Illuminated buttons for each channel include selector, mute, solo, and record.

Compatible with virtually all DAWs, including Cubase, Nuendo, Samplitude, Logic Pro, Bitwig, Studio One, Ableton Live, Pro Tools, Reason, Sonar, FL Studio, Digital Performer, Reaper, and Adobe Audition.

Includes iMap software for easy MIDI mapping.

Easy firmware updates via USB connection and iMap software.

USB High-speed connection via 2.0
- Highly assembled metal casing with a Kensington lock port
- USB cable and AC adapter included
- Included hardware for connecting to PLATFORM M+ and other PLATFORM X+ units
- Dimensions: 335 x 198 x 55 mm (L x W x H)
- Weight: 1.53 kg

■ Supported OS:
Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows 10
Mac OSX 10.12 or later (Intel/Mac) Class Compliant
*Please note that not all parameters may be supported depending on the DAW version.
