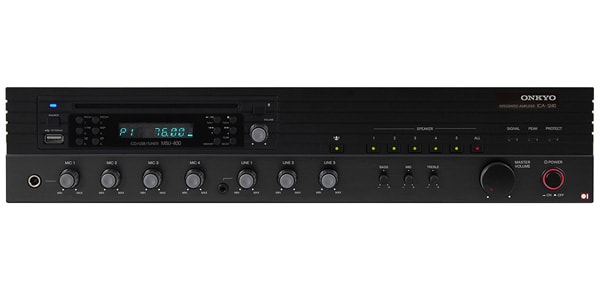

ONKYO / ICA1240MS

This is a desktop power amplifier manufactured by ONKYO. It is a highly functional all-in-one mixing amplifier that allows for flexible system design.

■ Versatile inputs and outputs allow you to freely create a soundscape.
This single unit handles background music, announcements, and multiple spaces.
This professional amplifier can be used in a wide range of applications, including restaurants with private rooms, daycare centers, and clinics.

The ICA1240MS, bearing the ""Onkyo Installation"" logo for installation equipment, features built-in CD/USB/FM playback, as well as three external inputs and four microphone inputs. It's ideal for businesses that use microphones while playing background music. It also supports a five-zone zone output function that allows you to select the playback area, making it ideal for facilities with multiple areas, such as restaurants with private rooms, daycare centers, and hospitals.
The speaker output supports both high- and low-impedance connections. Despite its impressive total output of 240W, it can be rack-mounted in a 19-inch commercial rack for a compact, sleek installation.
This highly functional, all-in-one mixing amplifier allows you to flexibly design a system, including audio sources and speakers that suit your environment, size, purpose, and business type.

Features:
■ Comprehensive 5-zone output function and a powerful 240W output that delivers clear sound.
The zone output function is convenient for controlling the sound in several spaces, such as making announcements in specific rooms or turning off background music in unused areas. (High-impedance connection only)
- 5-zone multi-zone support, with one-touch front panel ON/OFF/ALL settings for each zone
- 240W high-power output provides ample sound even when all 5 zones are ON
- Up to 24 10W high-impedance speakers can be connected for flexible system configuration

■ Built-in CD/USB/FM playback and three external inputs support a wide variety of audio sources
With a built-in CD player, USB, and FM tuner, you can create a background music environment with just this one unit
- MP3/WMA playback supported (CD/USB)
- Multiple playback modes (CD/USB), including single-song playback and repeat playback (single, folder, all, random)
- Pitch control function adjustable up to ±10 steps (CD/USB)
- FM tuner with memory for up to 6 stations
- AM compatible with wide-screen FM broadcasts This unit can also receive programs from .
- A convenient USB port on the front panel
- When the power is turned on, playback resumes from the beginning of the last track, making it convenient for stores and facilities.
- Three line inputs allow connection to background music distribution devices.

■ Four microphone inputs with convenient features
With four microphone inputs, it's perfect for situations where microphones are used frequently, such as store events, nursery school sports days, and hospital call calls.
- A microphone ducker function blocks other input signals according to the microphone's audio input (MIC1 input).
- Phantom power support (MIC1 input) allows use with high-quality condenser microphones.
- A microphone input on the front panel (phone jack).
- A chime function (chime sound) is included for convenient announcements.

■ Convenient features for a variety of spaces and applications
This multifunctional product is equipped with ingenious features and functions for smart installation and safe use. Three line inputs, four mic inputs, and a mixing function that allows you to control the volume of all playback sources. Fits in a 19-inch professional rack. Includes rack mounting hardware (2U height)

High/low impedance connection support (100V / 70V / 8Ω / 4Ω) for flexible speaker selection

Front panel level indicators visually display output level, peak, and protection

3-band EQ allows for sound design tailored to microphone placement, speaker type, and business type

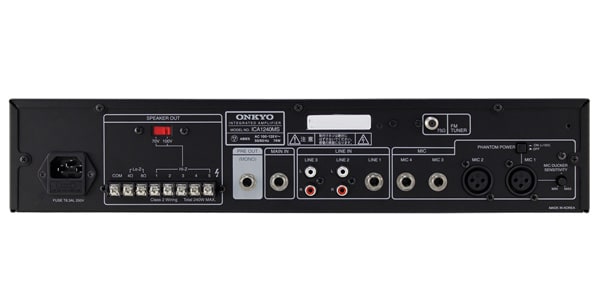

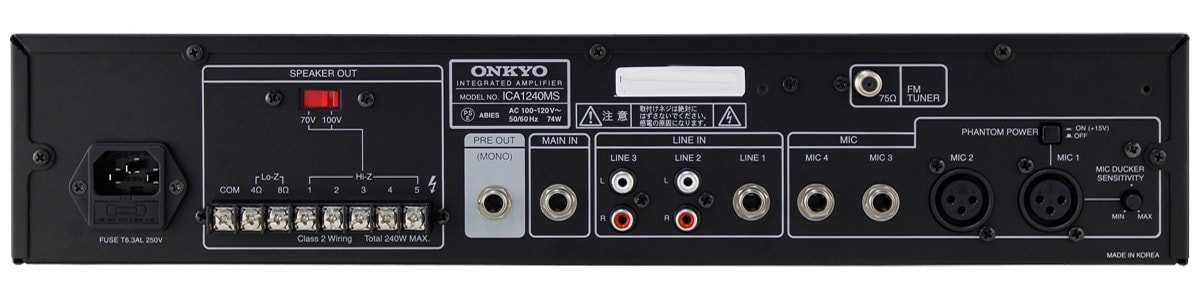

Pre-out and main-in terminals allow for flexible system expansion depending on the scale of the project

Front-panel mic and line inputs allow for last-minute expansion

Specifications
■Rated Output: Mono 240W @ THD 1%
■Frequency Response (-3dB):
100Hz - 15 kHz (LINE 1, 2, 3)
120Hz - 10 kHz (MIC 1, 2, 3, 4)
100Hz - 18 kHz (MAIN)
■S/N Ratio
　60 dB or more (LINE 1, 2, 3)
　50 dB or more (MIC 1, 2, 3, 4)
　80 dB or more (MAIN)
■Tone Controls: BASS (100Hz) ±12 dB, MID (1 kHz) ±15 dB, TREBLE (10 kHz) ±12 dB


■CD Playback Files: MP3/WMA
■USB
　Sampling Frequency: 8 kHz - 48 kHz
　Bit Rate: 64 kHz - 320 kbps
　Maximum Playback Files: 499
　Pitch Control: ±10 steps (21 steps total) Adjust playback speed and pitch by up to ±15%
■FM
　Reception Range: 76 - 108 MHz Wide FM (AM complementary broadcasting) compatible
　Memory Memory: 6 Station
Antenna Terminal: 75Ω PAL Type (Antenna Cable Included)


■Operating Temperature Range: 0 to 40°C (Non-Condensing)
■Power Supply: AC 100V (50/60 Hz)
■Power Consumption: 74W (1/8 POWER, CD Playback)
■Dimensions: 440(W) x 88(H) x 326(D) mm (19-inch Rack 2U Size)
■Unit Weight: 8.4 kg
■Accessories: Rack Mounting Bracket, Power Cord, FM Antenna Cable, Instruction Manual
