YAMAHA / DFMS45DR

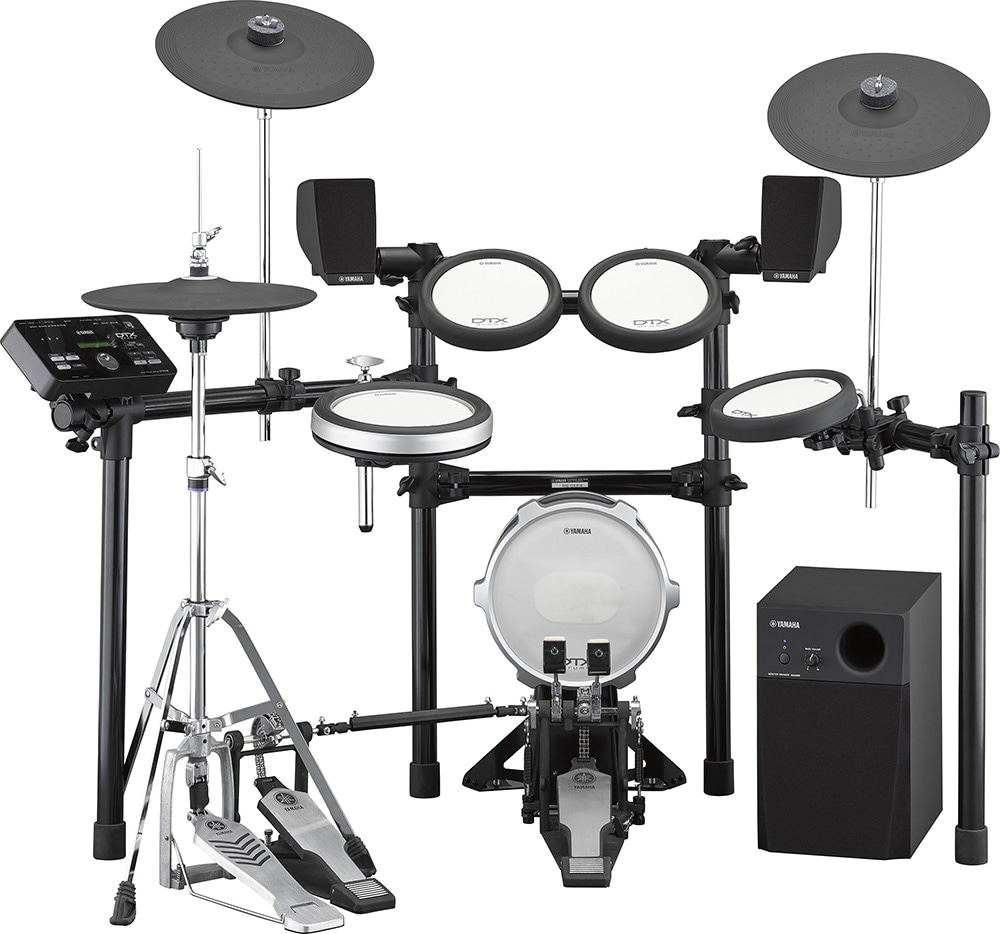

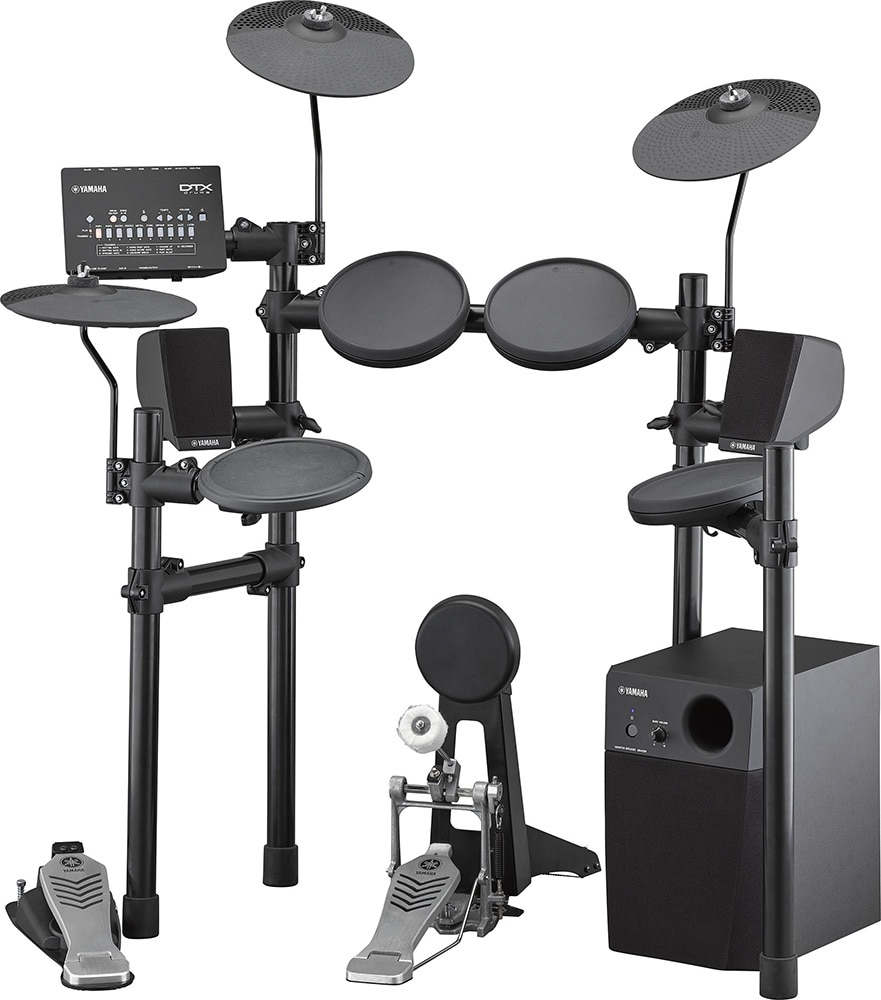

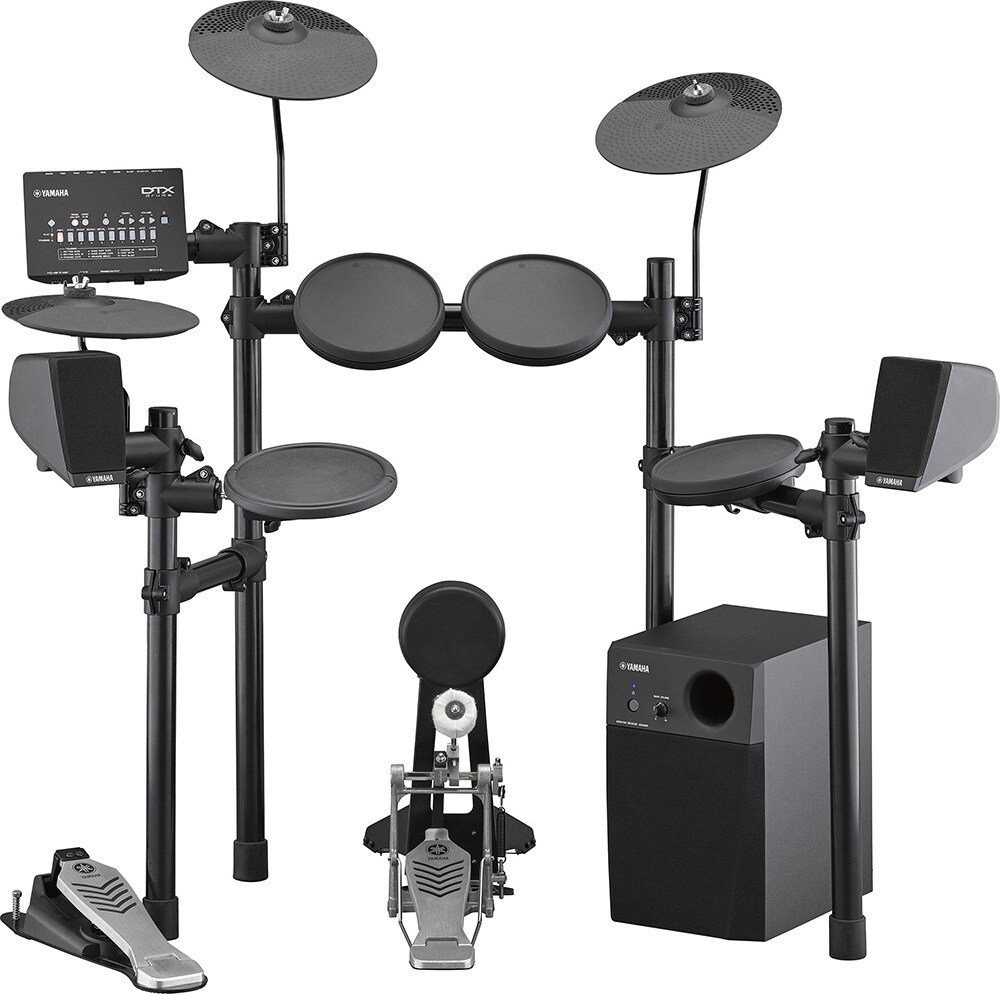

A 2.1 channel monitor system that brings out a natural sound. Can be attached to an electronic drum rack.

*The electronic drums in the image are sold separately.

■2.1ch stereo monitor system
■Monitor amplifier
■For YAMAHA/DTX electronic drums
●2.1ch stereo monitor system that reproduces natural sound
●20W satellite speaker/subwoofer
●Can be attached to electronic drum rack *Can be attached to racks with a pipe diameter of 1.5"" (3.81cm)
●Can be easily connected with the dedicated cable included

■Main specifications
・Rated power consumption: 24 W
・Rated power supply voltage: 100 V-240 V~, 50/60 Hz
・Output
Satellite speaker: 20 W + 20 W (2 kHz, 4 Ω)
Subwoofer: 20 W (60 Hz, 8 Ω)
・Playback frequency
Satellite speaker/subwoofer: 40-20000 Hz (-10 dB)
・Speaker unit
Satellite speaker (tweeter): 2cm (0.8"") dome type (5Ω)
Satellite speaker (mid-range): 8cm (3"") cone type (4.5Ω)
Subwoofer: 16cm (6.5"") cone type (8Ω)
Dimensions (width x height x depth)
Satellite speaker: 110 x 183 x 138 mm *Not including mounting parts
Subwoofer: 221 x 351 x 343 mm
Weight
Satellite speaker: 1.0 kg x 2
Subwoofer: 6.5 kg
Accessories
Pipe clamp* x 2, cable (Mini DIN 8 pin + phone + RCA pin) x 1, cable band x 1, power cord x 1, instruction manual x 1 *For pipes with a diameter of 1.5 inches (38.1 Can be mounted on racks with a diameter of 1.5 mm)

[2.1ch monitor system that reproduces natural sound]

The left and right satellite speakers and subwoofer equipped with two units, a tweeter and a midrange, reproduce a wide range of sounds from the bass drum to the high notes played by cymbals. In addition, the three-dimensional effect unique to 2.1ch creates a high sense of realism.

You can enjoy high-quality sound without using headphones, so you can concentrate on playing the drums without being distracted by the headphone cable.

[20W satellite speaker compatible with 1.5-inch diameter rack]

The 20W satellite speaker is equipped with two speaker units, a 2cm dome tweeter and an 8cm cone midrange, and reproduces mid-to-high range sounds firmly.

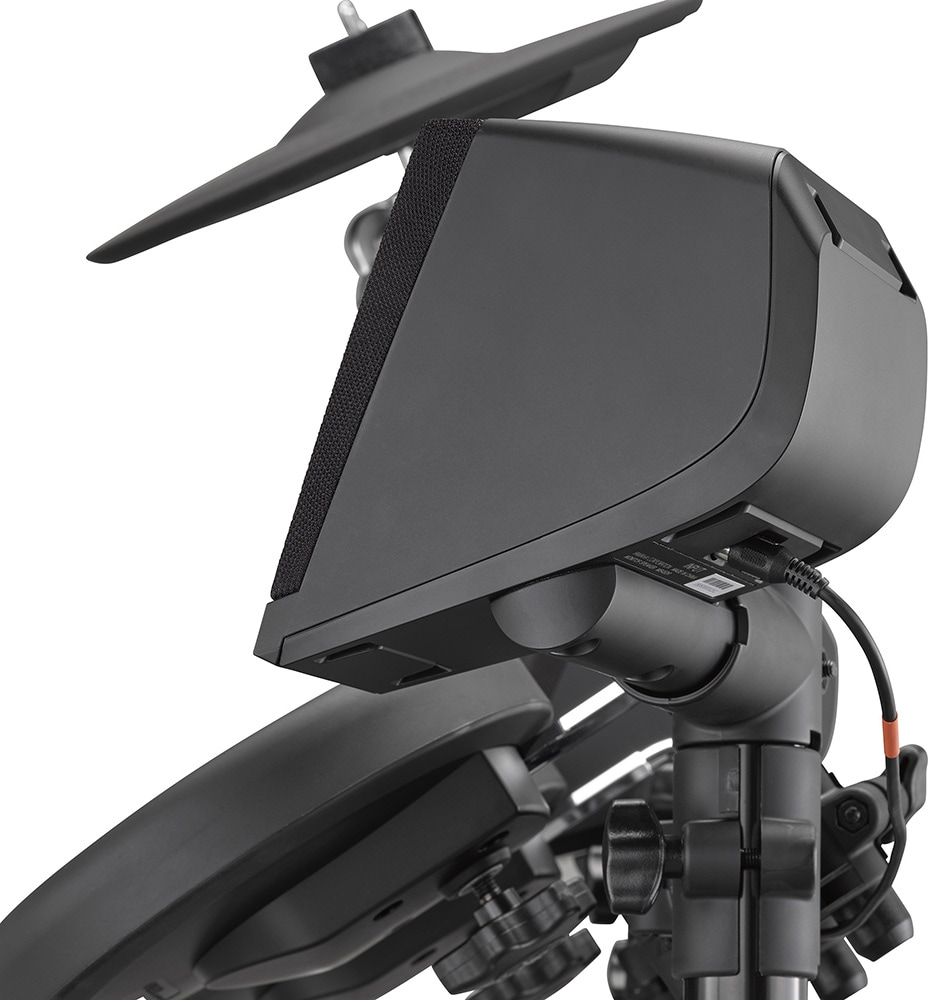

The main unit can be attached to the vertical pipe of an electronic drum rack, and can be attached to a 1.5-inch diameter pipe, which is the mainstream diameter for electronic drum racks. In addition, a clamp is attached to the arm part coming out from the bottom of the main unit, and the angle of the speaker part can be adjusted.

[20W subwoofer that produces rich bass]
The 20W subwoofer with a 16cm cone-type speaker unit reproduces the low-frequency sound of drums such as bass drums and floor toms. The powerful sound creates a more realistic performance.

[Easy volume adjustment and sound making]

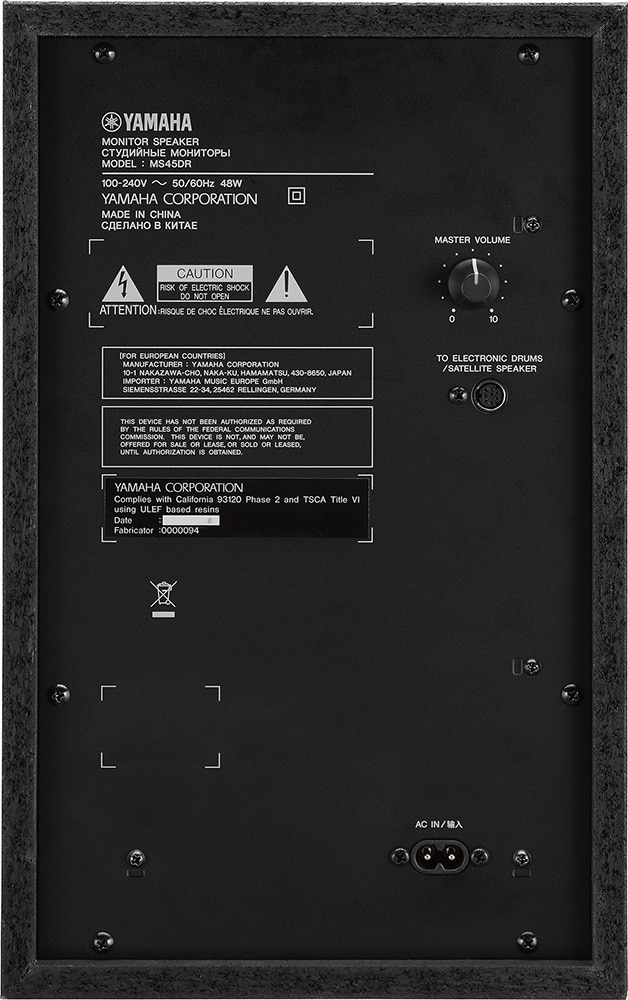

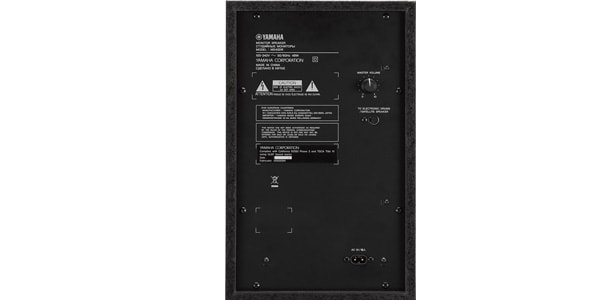

The subwoofer has a base volume that adjusts only the subwoofer volume, in addition to the master volume that adjusts the overall volume, so you can make your favorite sound with simple operations.

[Dedicated cable to simplify the setup]

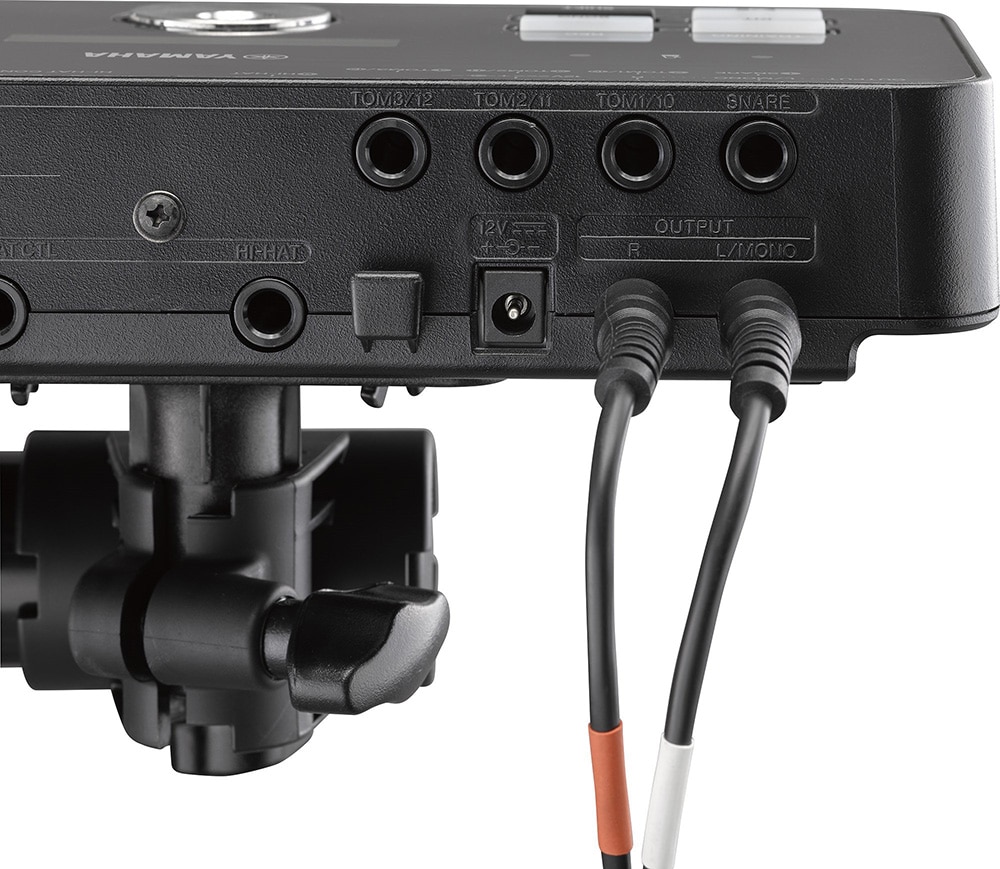

When connecting the MS45DR to the trigger module of the electronic drums, please use the included combination cable. Although it is a 2.1ch system, there is no need for complicated wiring. Simply connect one combination cable to each of the trigger module, subwoofer amplifier unit, and satellite speaker to easily complete the electronic drum monitoring environment.

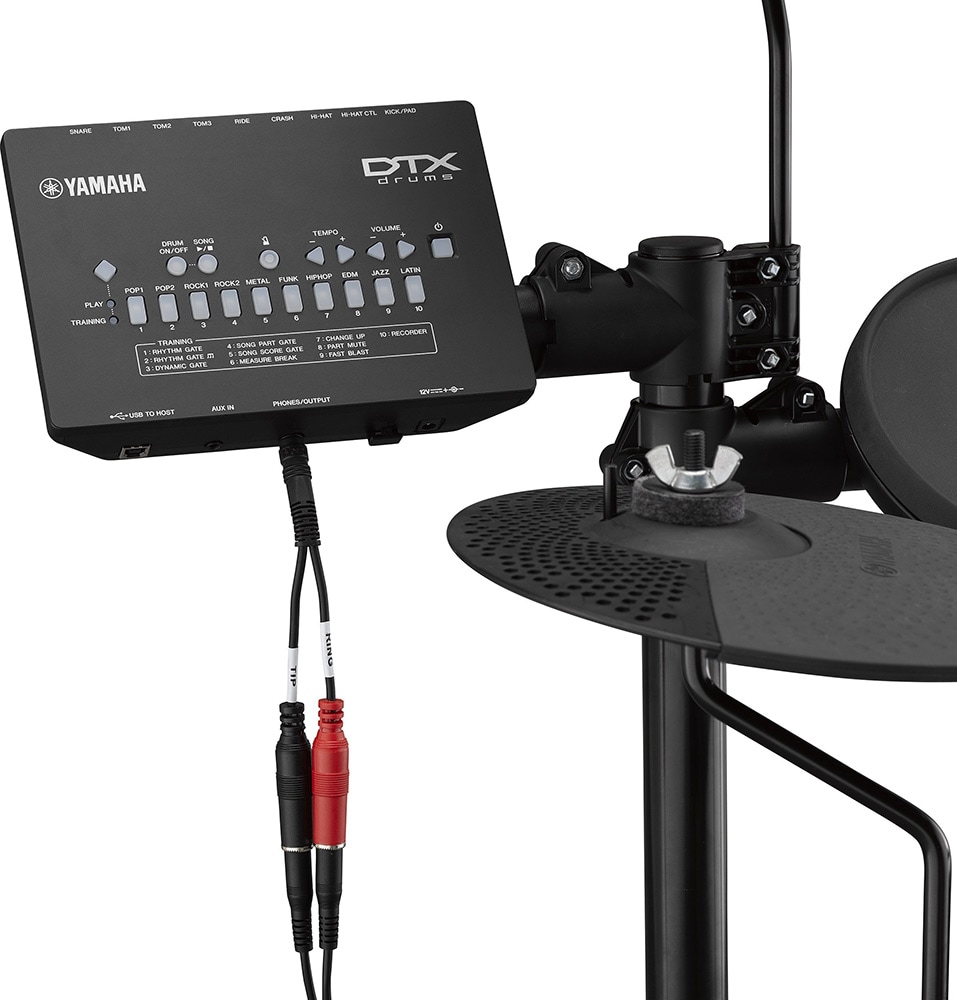

*If your device only has one output terminal, such as the DTX402 series, you will need a Y-shaped cable (2 x phone male - phone female) to connect to the PHONE terminal (standard phone terminal) on the trigger module.
