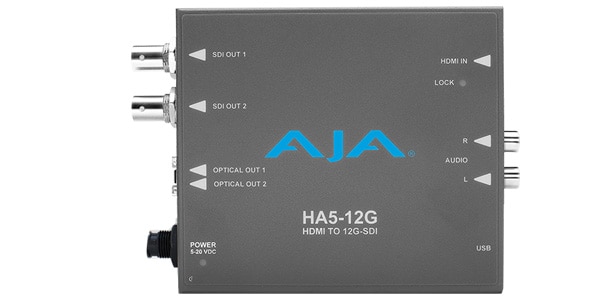

AJA Video Systems / HA5-12G-T

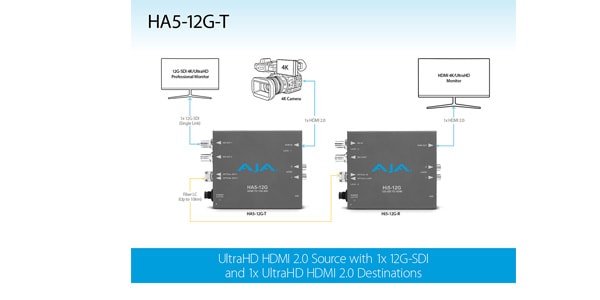

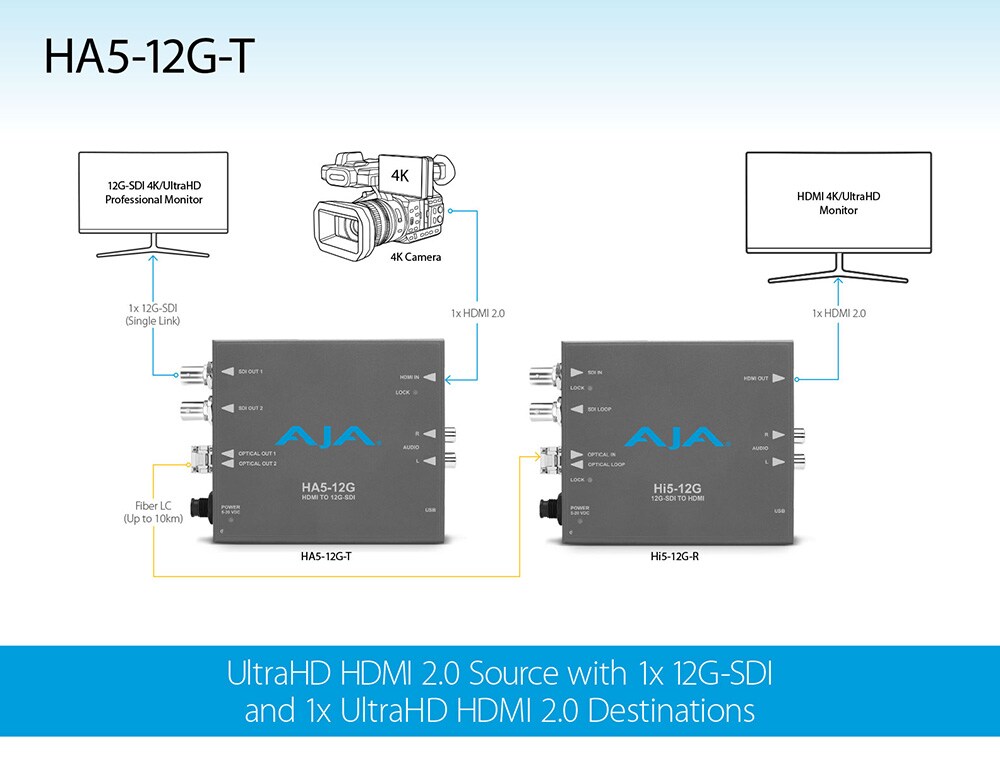

A converter that converts up to 4K/UltraHD 60p HDMI 2.0b to 12G-SDI and distributes to two systems! FiberLC-1T-12G SFP included.

■Video formats:
・(4K) 4096 x 2160p
・(UltraHD) 3840 x 2160p
・(2K) 2048 x 1080p
・(HD) 1920 x 1080p
・(HD) 1920 x 1080i
・(HD) 1280 x 720p
■Digital video input
・1 x HDMI Type A connector, HDMI v2.0b
・YCbCr 4:2:2/4:4:4/4:2:0
・RGB 4:4:4, SMPTE or full level
・8, 10, 12-bit (HFR 4K/UltraHD 4:4:4 up to 8-bit)
・HDR infoframe decoder as defined in CTA-861-G and HDMI v2.0b
・(4K) 4096 × 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(UltraHD) 3840 × 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(2K) 2048 × 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(HD) 1920 × 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(HD) 1920 × 1080i 25, 29.97, 30
・(HD) 1280 × 720p 50, 59.94, 60
■Digital video output
・1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
・YCbCr 4:2:2/4:4:4
・RGB 4:4:4, SMPTE or full level
・8 or 10 bit
・2 sample interleave (2SI) 4K/UltraHD source mapping
・1 x 12 Gb SDI
・(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・6 Gb SDI x 1
・(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
・(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
・(HD) 1920 x 1080p (RGB 4:4:4) 50, 59.94, 60
・1 x 3 Gb SDI (Level A or B Dual Link)
・(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(HD) 1920 x 1080i 25, 29.97, 30

(HD) 1280 x 720p* 50, 59.94, 60

1 x 1.5 Gb SDI

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 25, 29.97, 30

(HD) 1280 x 720p 50, 59.94, 60
*1280 x 720p is level A only

Digital video output:

1 x 12G-SDI LC fiber connector, SMPTE 297/259/292/424/2081/2082
Standard wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
Optical output: -5 dBm (min), 0.5 dBm (max)
Attenuation: 5.4 dB (min)
■Digital audio input:
HDMI embedded audio, 24-bit, 8-channel
■Analog audio input:
2 x RCA connectors, 2-channel -10dBu (nominal)
■Digital audio output:
SDI embedded audio, 24-bit, 8-channel
■User interface:
Connect the included cable to the USB port and use Mini-Config software on Mac or Windows to configure and check the device status
■Power supply
5-20VDC regulated power supply, 11W, power adapter included
AC adapter: 100-240VAC, 50/60 Hz, universal input
■Size:
116.84(W)x 102.11(D)x 22.86(H) mm 0.3 kg
