AJA Video Systems / 3G-AM-XLR

8 channel AES audio embedder/disembedder supporting 3G-SDI input and output up to 1080p60.

■3G-SDI 8-ch. AES Embedder/Disembedder, Balanced XLR
■SIZE: 147.32 mm x 78.74 mm x 25.4 mm
■Video input format:
3Gb SDI (Level A or B) x 1
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080psf 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080psf 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 50, 59.94, 60

1.5Gb SDI x 1
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080psf 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080psf 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
270 Mb SDI x 1
(SD) 625i
(SD) 525i
■Digital video input:
3G-SDI BNC x 1, SMPTE-259/292/424
■Digital video output:
3G-SDI BNC x 1, SMPTE-259/292/424
■Audio input/output AES audio input/output

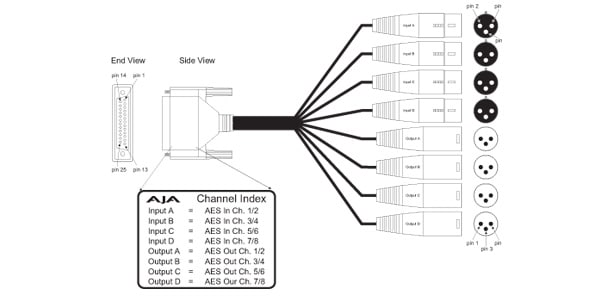

■AES breakout cable included (XLR)
■SIZE: 147.32 x 78.74 x 25.4 mm
