AJA Video Systems / Hi5-12G-TR

12G-SDI to HDMI 2.0 converter with fiber transceiver. Supports 12G-SDI!

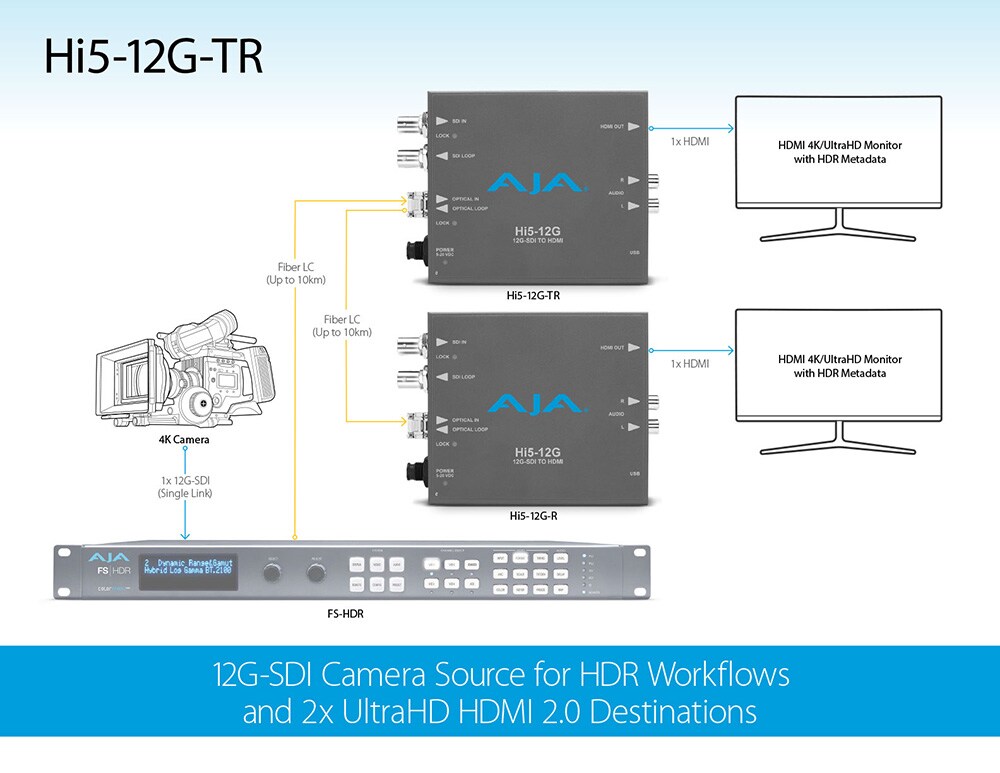

The Hi5-12G-TR transceiver can transmit one 4K/UltraHD SDI or Fiber source signal to one HDMI destination while passing it through to a second destination via SDI or Fiber. An automatic video source switching feature (supporting SDI and optional optical fiber inputs) is included on the Hi5-12G-R and Hi5-12G-TR, allowing automatic input switching based on what is selected via ""Switch Over Priority"". (Menu pull-down: Last Valid input, Priority SDI, Priority Optical)

・Supports accurate and faithful images and high frame rates, converts 4K/UltraHD up to 60p from 12G-SDI to HDMI 2.0 and transmits over a single cable

・Generates HDR10 metadata consistent with HDMI v2.0b/CTA-861-G, HDMI with HLG

・Simply connects professional 4K devices with 12G-SDI output to displays with HDMI 2.0 input for a cost-effective monitoring environment

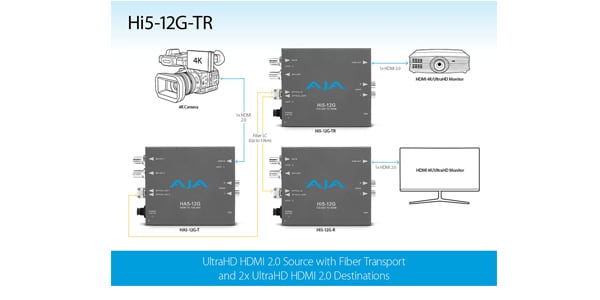

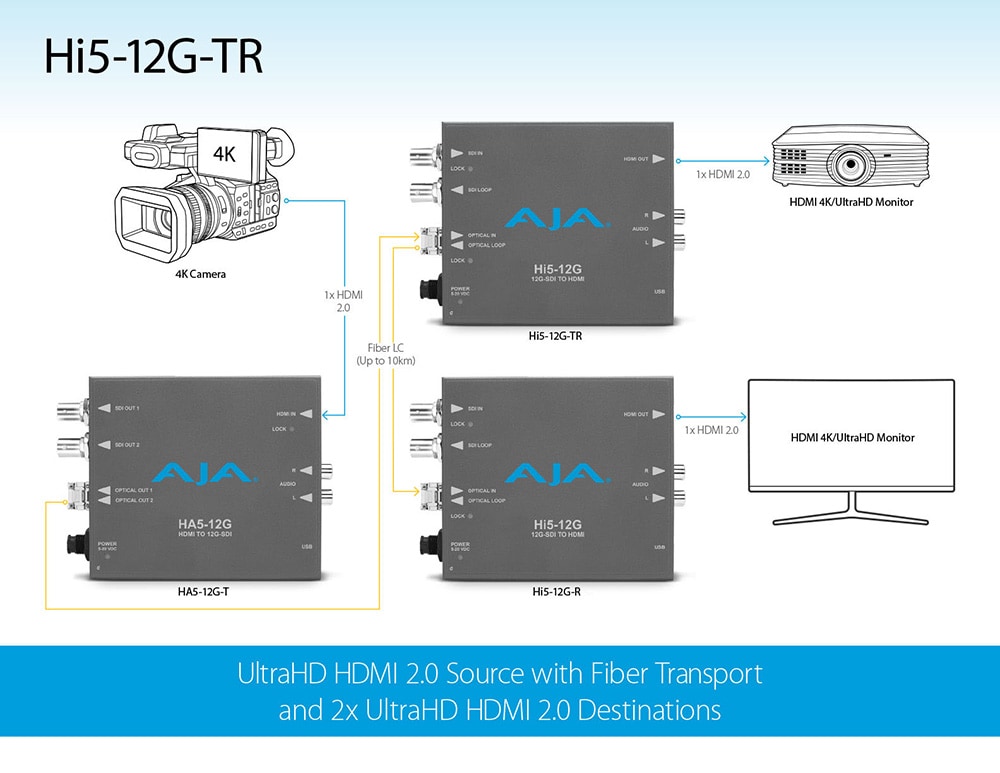

One 12G-SDI input can be reclocked and looped out to SDI. Fiber LC single channel SFP transceiver allows one 4K/UltraHD source signal to be delivered to one HDMI destination via SDI or fiber while passing through the source to another destination via SDI or fiber
- Fiber LC single channel SFP transceiver included allows 4K signal to be transmitted over long distances
- DWP-U power supply included
- Equipped with USB port for firmware updates
- 5 year warranty
■ 4K HDR compatible 12G-SDI to HDMI 2.0 converter
■ HDMI 2.0 to 12G-SDI converter
■ 2 12G-SDI DA (distribution) outputs available
■ Supports up to 8 channels of HDMI audio or 2 channels of analog audio (RCA)
■ 8 or 2 channels of digital audio embedded into 12G-SDI
■ Video formats:
・ (4K) 4096 × 2160p

・(UltraHD) 3840 × 2160p

・(2K) 2048 × 1080p

・(HD) 1920 × 1080p

・(HD) 1920 × 1080i

・(HD) 1280 × 720p
■Digital Video Input:

・1 × HDMI Type A connector, HDMI v2.0b

・YCbCr 4:2:2/4:4:4/4:2:0

・RGB 4:4:4, SMPTE or full level

・8, 10, 12-bit (HFR 4K/UltraHD 4:4:4 up to 8-bit)

・HDR Infoframe decoder as defined in CTA-861-G and HDMI v2.0b

・(4K) 4096 × 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(UltraHD) 3840 × 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(2K) 2048 × 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(HD) 1920 × 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(HD) 1920 × 1080i 25, 29.97, 30
・(HD) 1280 × 720p 50, 59.94, 60
■Input signal selection
・12G-SDI BNC x 1, SMPTE-259/292/424/2081/2082
・12G-SDI fiber LC connector x 1, SMPTE 297/259/292/424/2081/2082
・Nominal wavelength: Rx 1260 nm (min), 1620 nm (max)
・Optical sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
・Overload power: -2 dBm (min)
■Digital video output
・12G-SDI BNC x 1, SMPTE-259/292/424/2081/2082
・YCbCr 4:2:2/4:4:4
・RGB 4:4:4, SMPTE or full level

8 or 10 bit

2 sample interleaved (2SI) 4K/UltraHD source mapping

1 x 12 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1 x 6 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p (RGB 4:4:4) 50, 59.94, 60
・1 x 3 Gb SDI (Level A or B Dual Link)
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p* 50, 59.94, 60
・1 x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 25, 29.97, 30

(HD) 1280 x 720p 50, 59.94, 60

*1280 x 720p is level A only

■Digital Audio Input: HDMI Embedded Audio, 24-bit, 8-channel

■Analog Audio Input: 2 x RCA connectors, 2-channel -10dBu (nominal)

■Digital Audio Output: SDI Embedded Audio, 24-bit, 8-channel

■User Interface: Connect the included cable to the USB port

and access Mini-Config from Mac or Windows The software allows you to configure and check the status of the device.
■DWP-U power supply included
■SIZE: 116.84(W) x 102.11(D) x 22.86(H) mm 0.3 kg
* The HA5-12G consumes approximately 11W of power. It requires convection cooling. It is normal for it to be hot to the touch. When installing the device, ensure there is an air passage for proper internal cooling.
Do not stack the HA5-12G with other Mini-Converters.

◆◆4K and UltraHD◆◆
Generally, a 4K signal refers to a resolution of 4096 x 2160 pixels. On the other hand, an UltraHD signal has a resolution of 3840 x 2160 pixels. Due to this difference, some monitors can only be used in either a full 4K workflow or an UltraHD workflow. The Hi5-12G bridges these resolution gaps, allowing you to use an UltraHD monitor in a 4K production environment, or a 4K monitor in an UltraHD production environment.

The Hi5-12G also supports High Frame Rate (HFR) input. You can input a 4K/UltraHD signal at 50fps or 60fps into the Hi5-12G, and see up to 60p output on a compatible HDMI 2.0 connected display.
