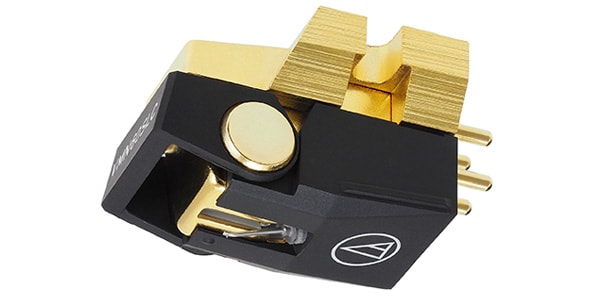

audio technica / VM760SLC

This VM-type stereo cartridge employs the lightest stylus tip, polished to extremely high precision, to achieve wide-band reproduction and low distortion, extracting every bit of information from the record grooves.

■Product Features
- Solid special line contact stylus extracts every bit of information from the record grooves
- Aluminum tapered pipe cantilever for lightweight construction
- Paratoroidal coil for increased power generation efficiency
- Center shield plate for reduced crosstalk
- Robust die-cast aluminum alloy housing
- Track pressure: 1.8-2.2g (2.0g standard)
- Output voltage: 4.0mV (1kHz, 5cm/sec.)
- Compatible replacement stylus: VMN60SLC

■Product Specifications
Type: VM
Frequency Range: 20-30,000Hz
Output Voltage: 4.0mV (1kHz, 5cm/sec.)
Channel Separation: 30dB (1kHz)
Output Balance: 1.0dB (1kHz)
Track pressure: 1.8-2.2g (2.0g standard)
Coil Impedance: 2.7kΩ (1kHz)
DC Resistance: 800Ω
Load Resistance : 47kΩ
Load Capacitance: 100-200pF
Coil Inductance: 460mH (1kHz)
Static Compliance: 40×10-6cm/dyne
Dynamic Compliance: 10×10-6cm/dyne (100Hz)
Stylus: Solid special line contact needle (1.5×0.28mil)
Cantilever: Aluminum tapered pipe
Vertical Tracking Angle: 23°

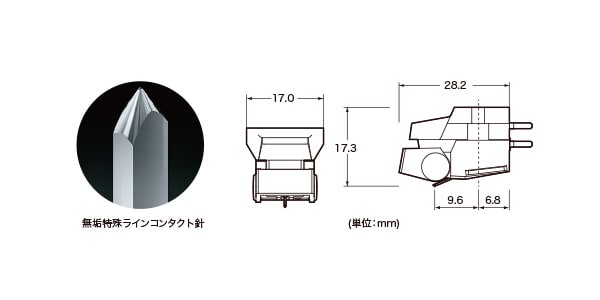

External Dimensions: H17.3×W17.0×D28.2mm
Weight: 8.0g

■Accessories

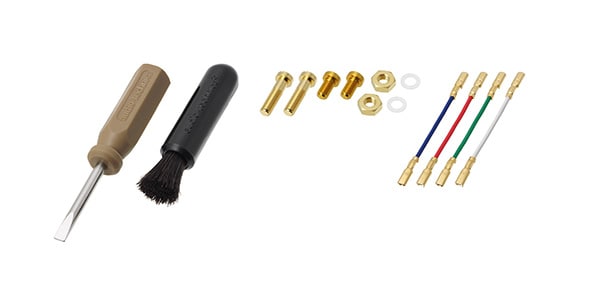

- Cartridge Mounting Screws (5mm x 2, 10mm x 2), Washers x 2, Hex Nuts x 2, Non-Magnetic Screwdriver x 1, Brush x 1, Lead Wire Set x 1
