AJA Video Systems / Hi5-12G

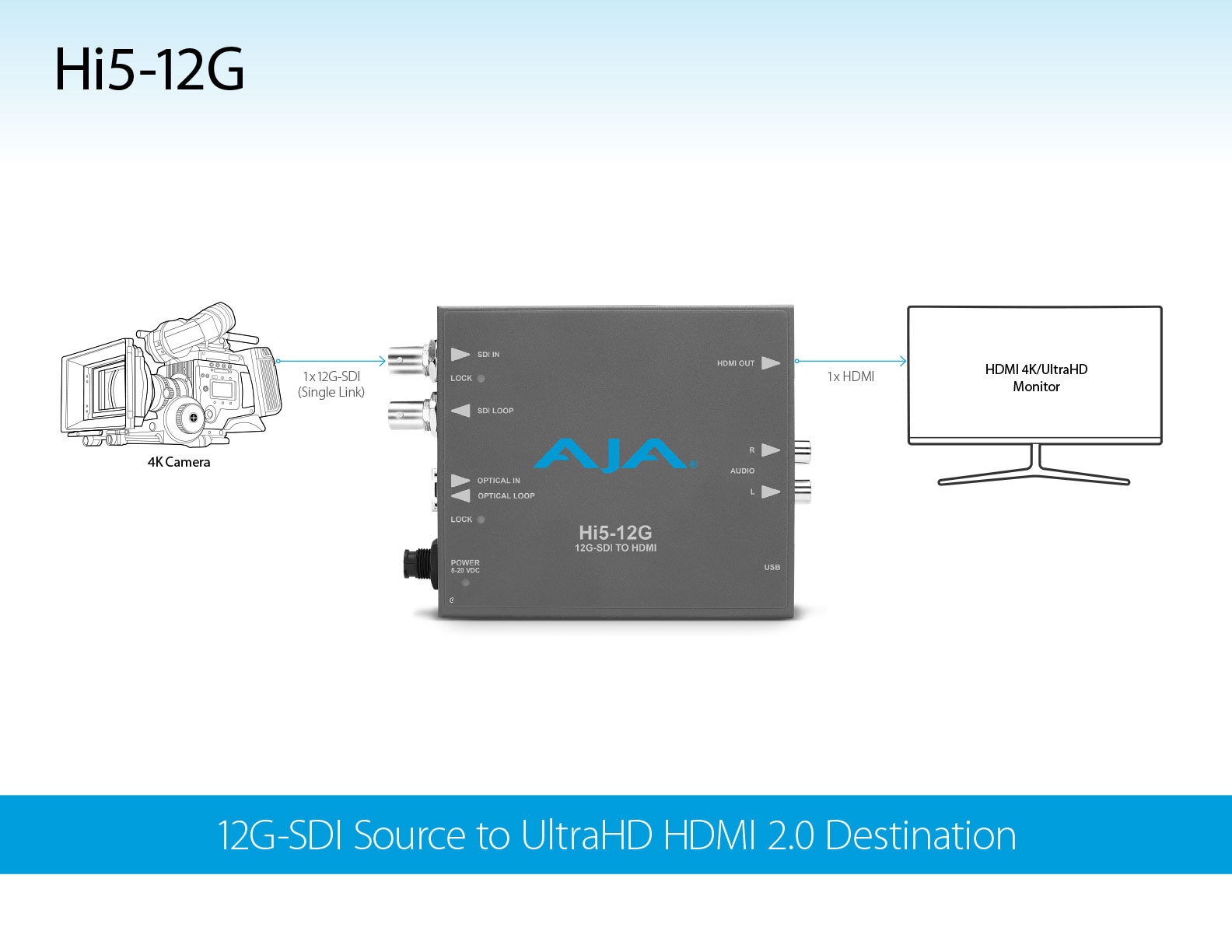

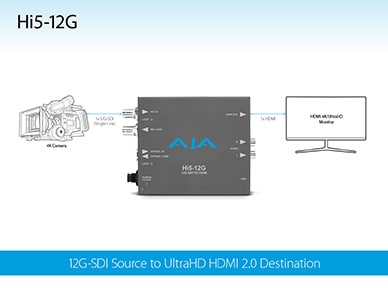

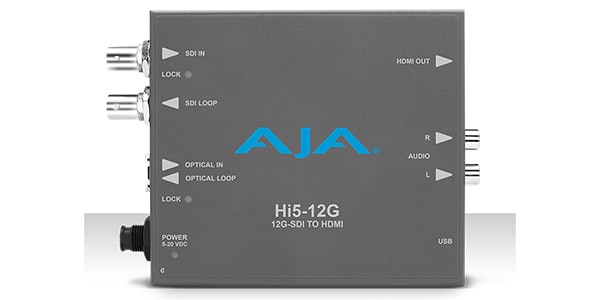

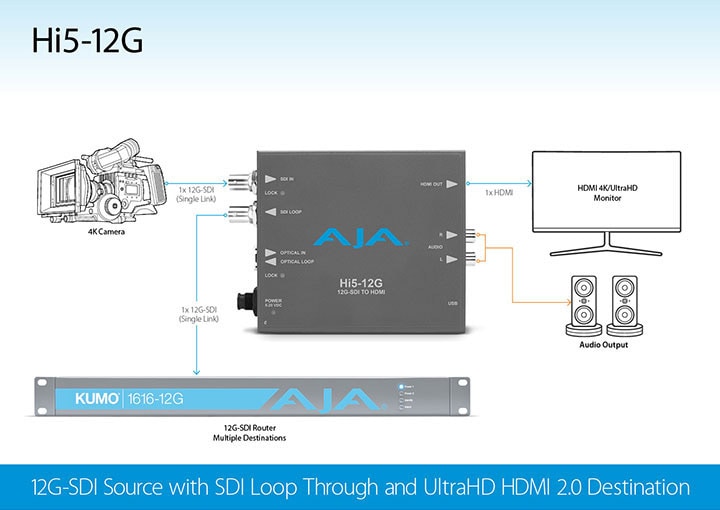

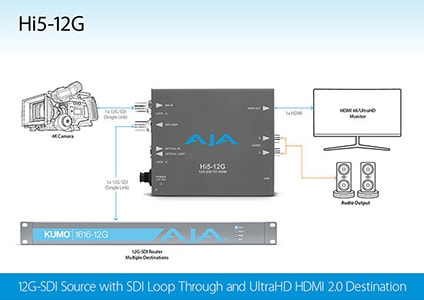

2G-SDI to HDMI 2.0 conversion for high frame rate transmission up to 4K/UltraHD 60p over a single cable!

■Video formats
・(4K) 4096 x 2160p
・(UltraHD) 3840 x 2160p
・(2K) 2048 x 1080p
・(HD) 1920 x 1080p
・(HD) 1920 x 1080i
・(HD) 1280 x 720p
・(SD) 720 x 576i
・(SD) 720 x 480i
■Digital video input
・1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
・YCbCr 4:2:2/4:4:4
・RGB 4:4:4, SMPTE or full level
・8 or 10 bit
・2 sample interleave (2SI) 4K/UltraHD Source Mapping

- 1 x 12 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

- 1 x 6 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

- 1 x 3 Gb SDI (Level A or B Dual Link)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 × 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 × 1080i 25, 29.97, 30
(HD) 1280 × 720p* 50, 59.94, 60
・1.5 Gb SDI x 1
(2K) 2048 × 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 × 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 × 1080i 25, 29.97, 30
(HD) 1280 × 720p 50, 59.94, 60
・1 × 270 Mb SDI
(SD) 625i 25
(SD) 525i 29.97
* 1280 × 720p is level A only
■Input signal selection (Hi5-12G-R and Hi5-12G-TR only)
・1 × 12G-SDI BNC, SMPTE-259/292/424/2081/2082
・1 × 12G-SDI fiber LC connector, SMPTE 297/259/292/424/2081/2082
Nominal wavelength: Rx 1260 nm (min), 1620 nm (max)
Light sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)

Overload power: -2 dBm (min)

■Digital video output

・1 x HDMI Type A connector*, HDMI v2.0b

・YCbCr 4:2:2/4:4:4/4:2:0

・RGB 4:4:4, SMPTE or full level

・8 or 10 bit (HFR 4K/UltraHD 4:4:4 up to 8 bit)

・Generates HDR infoframes as defined by CTA-861-G and HDMI v2.0b

・(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

・(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080i 25, 29.97, 30

(HD) 1280 x 720p 50, 59.94, 60

(SD) 720 x 576i 25

(SD) 720 x 480i 29.97
* If the connected monitor is HDMI If the protocol is not supported, it will automatically switch to the DVI protocol (audio signals will not pass through).

■Digital audio input: SDI embedded audio, 24-bit, 8 channels

■Digital audio output: HDMI embedded audio, 24-bit, 8 channels

■Analog audio output: 2 RCA connectors, 2 channels -10dBu (nominal)

■User interface: Connect the included cable to the USB port and use Mini-Config software to configure and check the device status from a Mac or Windows computer

■SIZE: 116.84 (W) x 102.11 (D) x 22.86 (H) mm
